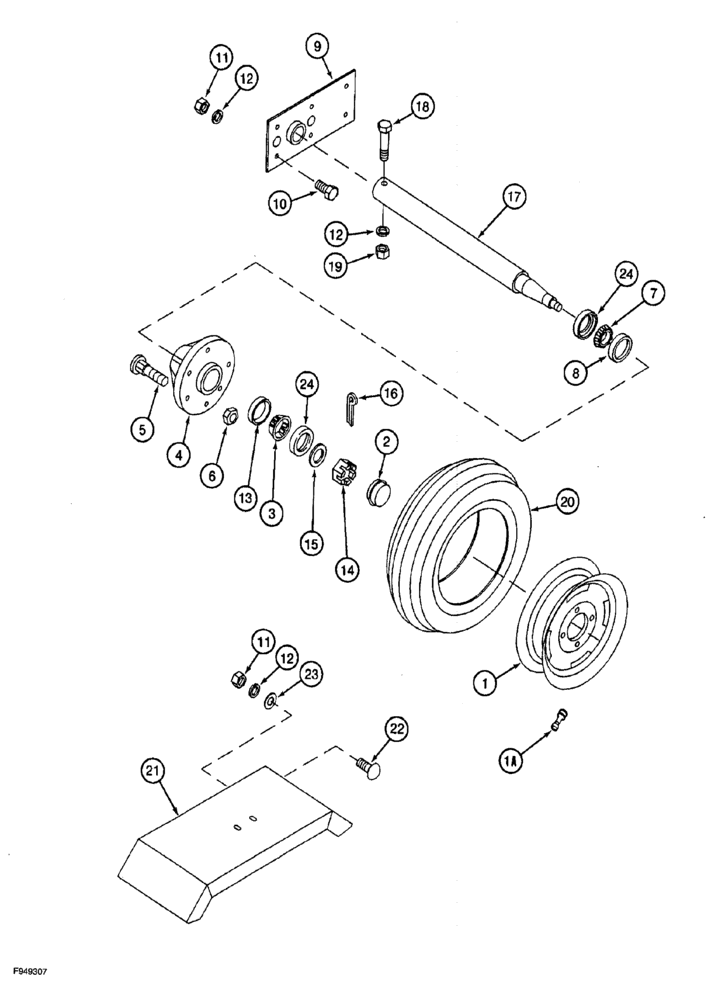

Запчасти Case IH 1260 (9B-018) - SPINDLES AND WHEELS, 1260 MACHINES (12) - CHASSIS

1

A57879

RIM

WHEEL, 15 x 8 inch

2шт.

1a

810769C1

VALVE

inflation

2шт.

2

518842R1

CAP

hub

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

4

190949A1

HUB

wheel

2шт.

5

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

wheel

12шт.

6

453770R1

WHEEL NUT

hex, 1/2 inch NF

12шт.

7

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

tapered roller, with seal, and cup, cone not serviced separately

2шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller, included with 459912R91

1шт.

9

133742A1

BRACKET

spindle mounting

2шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

16шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

18шт.

13

651817R1

BEARING CUP

CUP tapered roller

2шт.

13

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

14

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

2шт.

15

95-81158

WASHER,3/4" x 1 3/4" x .148"

flat, 13/16 x 1-3/4 x 5/32 inch

2шт.

16

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

17

57961C1

SPINDLE

1260 machines

2шт.

18

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch

2шт.

19

425-1012

NUT,3/4"-10, G5

2шт.

20

NSS

NOT SOLD SEPARAT

TIRE, 10.00-15 8PR IF1

2шт.

21

133743A1

FENDER

1260 machines

2шт.

22

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

23

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

24

191016A1

OIL SEAL

hub

2шт.
