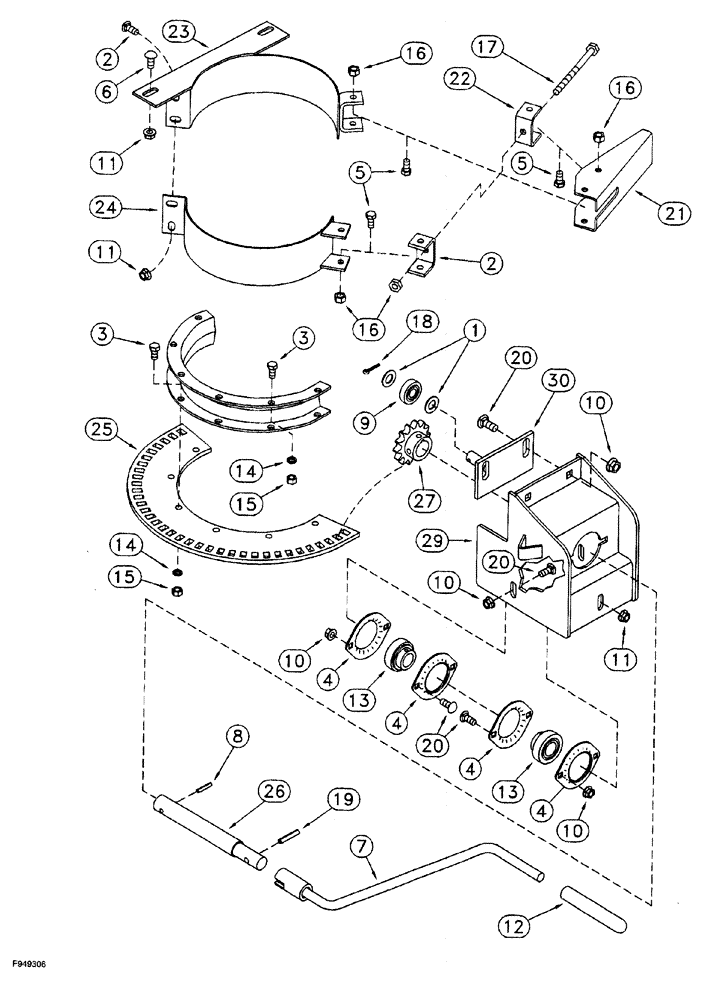

Запчасти Case IH 1260 (9B-016) - SWIVEL DRIVE - MECHANICAL (12) - CHASSIS

1

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

2

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

2шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

4

469924R1

FLANGE

bearing

4шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

6

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

carriage, 5/16 NC x 3/4 inch, grade 2

2шт.

7

475753R1

CRANK

auger

1шт.

8

38-21216

PIN,4.75mm OD x 25.4mm L, Coiled

3/16" x 1", Coiled

1шт.

9

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

ball

1шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

12

487876R1

GRIP

crank

1шт.

13

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball

2шт.

14

492-11031

LOCK WASHER,5/16"

12шт.

15

425-145

JAM NUT,Jam, 5/16"-18, G5

12шт.

16

231-4145

NUT,5/16"-18, GB

7шт.

17

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT hex, 5/16 NC x 4-1/2 inch

1шт.

18

432-816

COTTER PIN,1/8" x 1"

1шт.

19

38-21622

PIN,6.35mm OD x 34.92mm L, Coiled

1/4" x 1 3/8", Coiled

1шт.

20

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 NC x 1 inch, grade 2

8шт.

21

1281222C1

HANDLE

brake

1шт.

22

1281265C1

YOKE

UNIVERSAL JOINT YOKE handle

2шт.

23

1281183C1

BAND

CLAMP, handle half

1шт.

24

1281182C1

BAND

CLAMP, plain half

1шт.

25

1281327C1

DISC

swivel drive

1шт.

26

1281324C1

SHAFT

drive

1шт.

27

1281325C1

SPROCKET ASSY.

8 teeth

1шт.

28

135659A1

RING

disk drive half

1шт.

29

135660A1

BRACKET

mechanical swing

1шт.

30

135661A1

ROD

idler

1шт.
