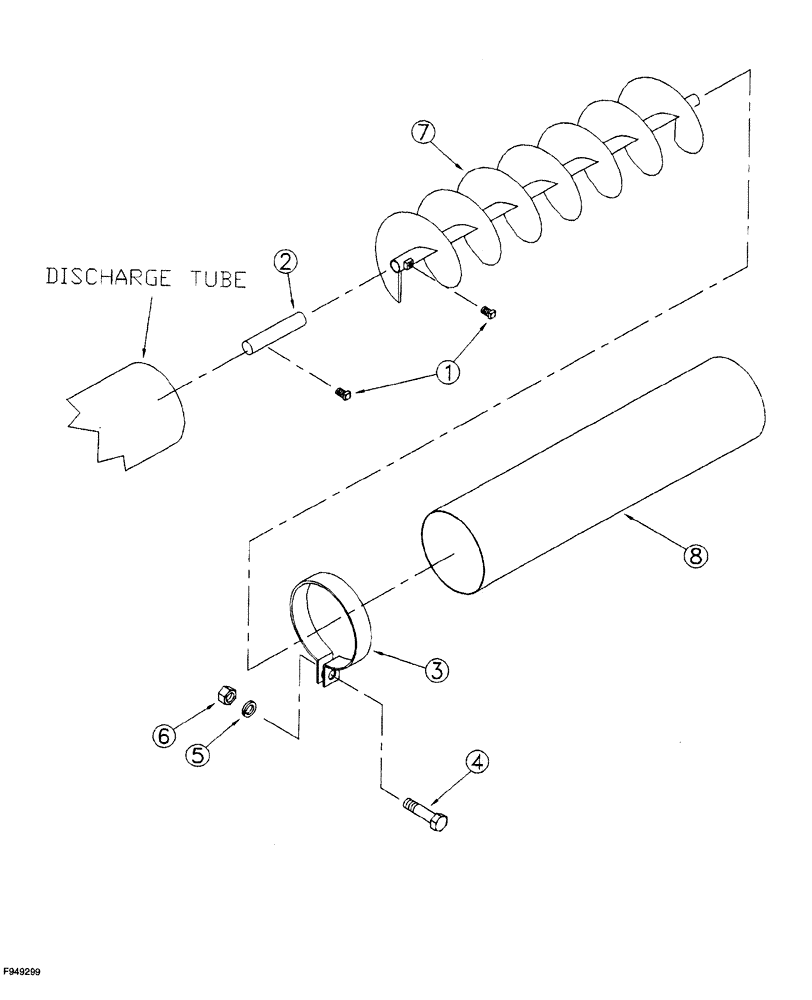

Запчасти Case IH 1260 (9A-036) - DISCHARGE AUGER EXTENSION - BOLT ON (12) - CHASSIS

1

485-14414

SET SCREW,Sq Hd, 7/16"-14 x 7/8"

set, square head, 7/16 NC x 7/8 inch, cup point

2шт.

2

57997C1

SHAFT

extension

1шт.

3

58009C1

BAND

8 inch diameter

1шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

58000C1

AUGER

extension, 3 feet

1шт.

7

58003C1

AUGER

extension, 6 feet

1шт.

8

58005C1

TUBE,8" OD

auger, 3 feet, extension

1шт.

8

58008C1

TUBE,8" OD

auger, 6 feet, extension

1шт.
