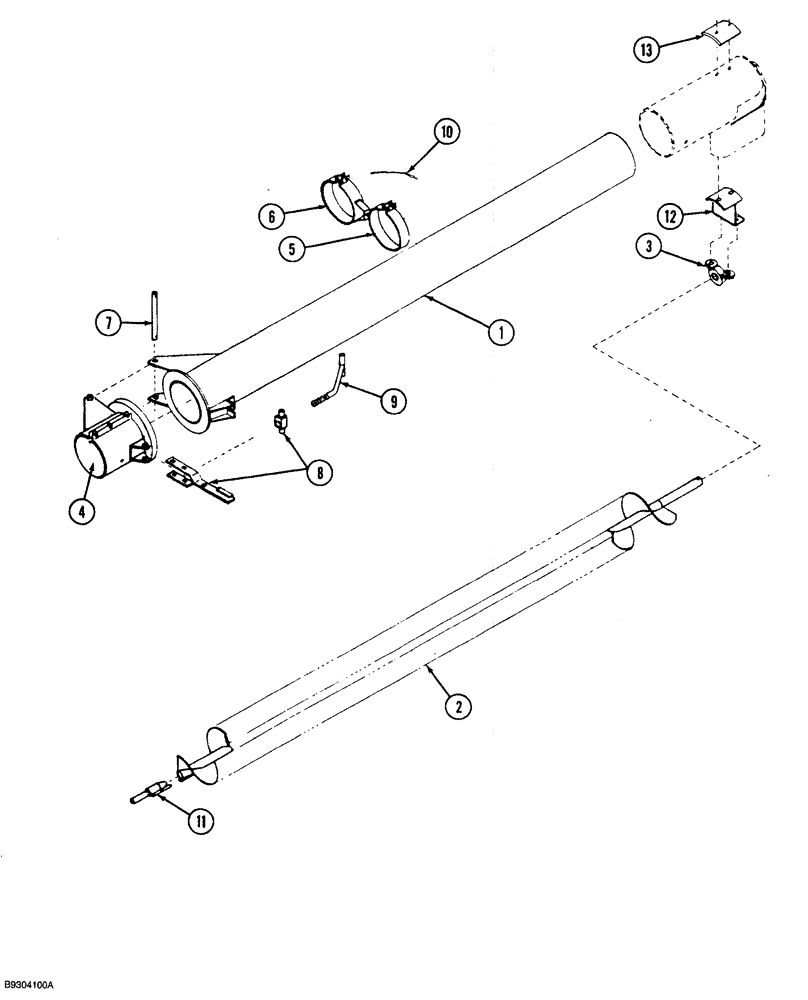

Запчасти Case IH 1260 (9A-032) - DISCHARGE AUGER EXTENSION - FOLDING (12) - CHASSIS

1

145812C1

TUBE,36.25 mm Length

TUBE, 3 foot

1шт.

1

145813C1

TUBE,72.35 mm Length

TUBE, 6 foot

1шт.

2

79892C1

AUGER

3 foot extension

1шт.

2

79891C1

AUGER

6 foot extension

1шт.

3

75977C1

BEARING CARRIER

pillow block

1шт.

4

75967C1

CLAMP

with decal

1шт.

5

75968C1

CLAMP

band, with pin

1шт.

6

75969C1

CLAMP

band, with strap

1шт.

7

75970C1

PIN

pivot

1шт.

8

75971C1

HANDLE

locking

1шт.

9

75972C1

HANDLE

T-bar

1шт.

10

75973C1

CHAIN (AG)

No. 16 single jack

1шт.

11

1265834C91

KIT

pilot drive

1шт.

12

75976C1

HANGER

BRACKET mounting

1шт.

13

145814C1

PLATE

base mounting

1шт.
