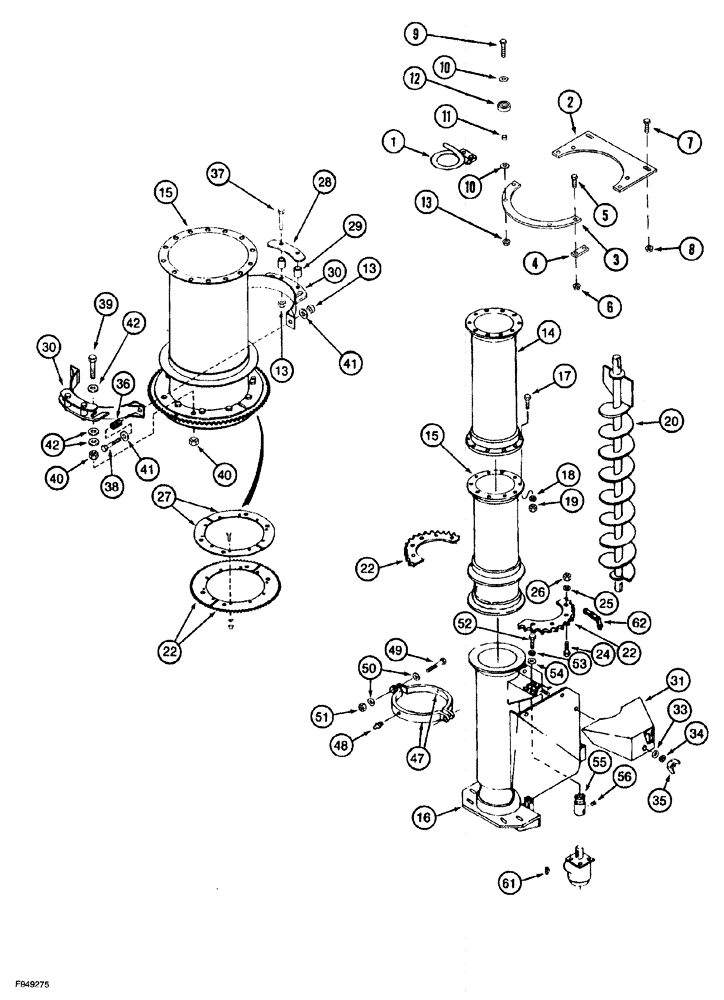

Запчасти Case IH 1260 (9A-026) - DISCHARGE AUGER - VERTICAL, HYDRAULIC SWING (12) - CHASSIS

1

1281277C1

HOLDER

hose

1шт.

2

175371A1

BRACKET

swivel ring

2шт.

3

64941C1

SUPPORT

RING swivel

2шт.

4

64941C1

SUPPORT

BRACKET swivel ring

4шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

8

232-4115

LOCK NUT,5/16"-18, GC

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

16шт.

11

75930C1

WASHER

SPACER bearing

8шт.

12

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

ball

8шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

137635A1

TUBE

vertical, 16 inch, upper, if used

1шт.

15

137634A1

TUBE,29 mm Length

vertical, 29 inch, lower

1шт.

16

133751A1

HOPPER

discharge

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

18

492-11031

LOCK WASHER,5/16"

10шт.

19

425-105

NUT,5/16"-18, G5

10шт.

20

1281225C1

AUGER

vertical, 73.50 inch

1шт.

20

79801C1

AUGER

vertical, 89.75 inch

1шт.

22

76038C1

SPROCKET ASSY.

split

2шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

25

492-11031

LOCK WASHER,5/16"

10шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

27

103624A1

PLATE

split

1шт.

28

103622A1

PLATE

clamp

2шт.

29

103623A1

SPACER

bearing

4шт.

30

103625A1

BAND

tube

2шт.

31

135662A1

SHIELD

swivel motor

1шт.

33

28588R1

WASHER

flat, 11/32 x 11/16 x 3/64 inch

1шт.

34

492-11031

LOCK WASHER,5/16"

1шт.

35

129-419

WING NUT,5/16"-18

wing, 5/16 inch NC

1шт.

36

103633A1

SPRING

clamp

2шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

38

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

39

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

40

425-108

NUT,1/2" - 13, Gr 5

8шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

42

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

12шт.

47

1281212C1

CLAMP

two piece, heavy duty

2шт.

48

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

49

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

50

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

51

425-106

NUT,3/8"-16, Cl 5

2шт.

52

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

53

492-11038

LOCK WASHER,3/8"

4шт.

54

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

55

64963C1

SPROCKET ASSY.

8 teeth

1шт.

56

483-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

set, hex socket headless, 5/16 NC x 5/16 inch, cup point

2шт.

57

28588R1

WASHER

flat, 11/32 x 11/16 x 3/64 inch

1шт.

58

492-11031

LOCK WASHER,5/16"

1шт.

59

425-105

NUT,5/16"-18, G5

1шт.

61

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

62

REF

INSTRUCTION

CHAIN, use 87 links from bulk chain roll 1790D and 1 connecting link 241-1314

1шт.

241-1314

CHAIN LINK

connecting, single pitch, No. 40, 1/2 inch pitch, connecting

1шт.

1790D

CHAIN (AG)

bulk, 10 foot roll

1шт.
