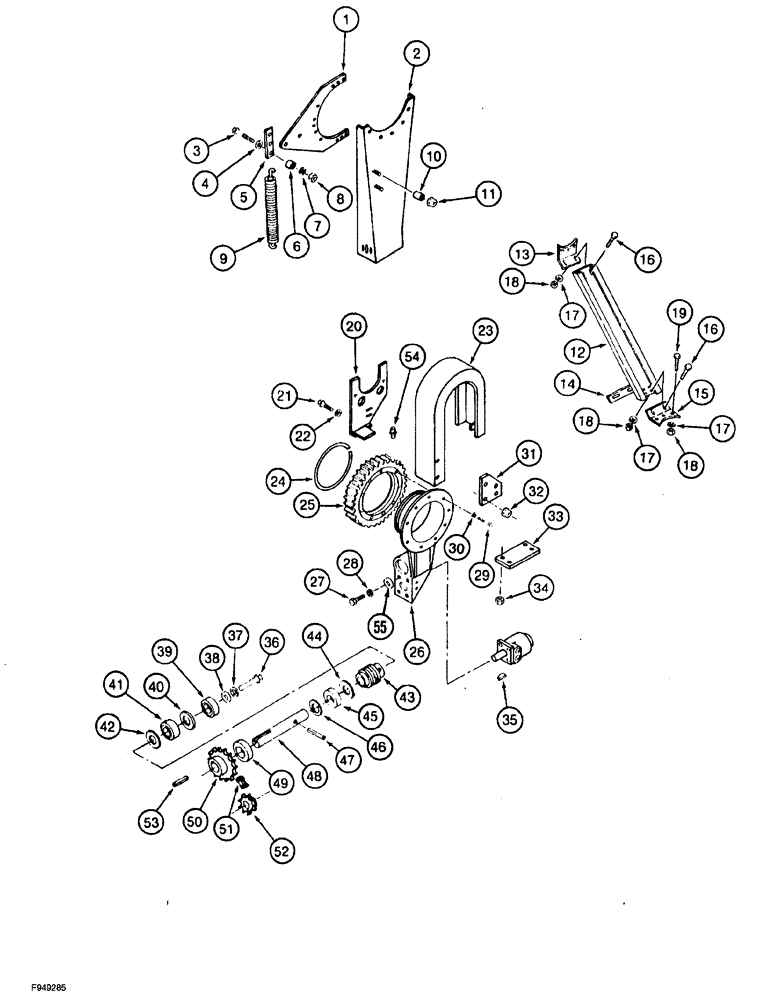

Запчасти Case IH 1260 (9A-022) - DISCHARGE AUGER - WITH HYDRAULIC CONTROL, HYDRAULIC LIFT (12) - CHASSIS

1

73647C1

PLATE

lift lever

1шт.

2

76453C1

ARM

vertical

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

5

75956C1

BAR

BRACKET spring holding

1шт.

6

542716R1

SPACER

tubular, 3/8 x 9/16 x 9/32 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

1шт.

9

75957C1

SPRING

extension

1шт.

10

SA2172

SPACER,3/8" Pipe x 1/2"

tubular, 3/8 x 3/8 inch

2шт.

11

232-4115

LOCK NUT,5/16"-18, GC

2шт.

12

188864A1

CHANNEL

brace, 29 inch vertical discharge

1шт.

12

188862A1

CHANNEL

brace, 45 inch vertical discharge

1шт.

13

1980628C1

BRACKET

channel, top, 29 inch vertical discharge

1шт.

13

188871A1

BRACKET

channel, top, 45 inch vertical discharge

1шт.

14

188865A1

STOP

brace swivel

1шт.

15

1980627C1

BRACKET

channel, bottom, 29 inch vertical discharge

1шт.

15

188872A1

BRACKET

brace channel, bottom, 45 inch vertical discharge

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

17

492-11031

LOCK WASHER,5/16"

5шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

19

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT hex, 5/16 NC x 1-1/8 inch

4шт.

20

79904C1

SHIELD

includes decal

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

78186C91

SHIELD

ring gear, includes decal

1шт.

24

64708C1

RING

retaining

2шт.

25

76036C1

GEAR

ring

1шт.

26

76037C1

HOLDER

ring

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

28

492-11038

LOCK WASHER,3/8"

10шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

30

492-11031

LOCK WASHER,5/16"

10шт.

31

75976C1

HANGER

BRACKET mounting

1шт.

32

232-4115

LOCK NUT,5/16"-18, GC

6шт.

33

64954C1

PLATE

oil

1шт.

34

425-104

NUT,1/4"-20, Cl 5

4шт.

35

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

495-81145

WASHER,13/32" x 1 3/4" x .120"

1шт.

39

79885C91

BEARING, BALL,25.4mm ID x 50.8mm OD x 15.88mm W

1 inch

1шт.

40

495-81079

WASHER,1.03" ID x 2.5" OD x 0.12" Thk

flat, 13/32 x 3/4 x 1/64 inch

1шт.

41

615515R91

THRUST BEARING,25.65mm ID x 50.8mm OD x 15.88mm W

thrust

1шт.

42

495-81055

WASHER,29/32" x 1 3/8" x .134"

flat, 29/32 x 1-3/8 x 1/8 inch

1шт.

43

1281293C1

GEAR

worm

1шт.

44

495-81055

WASHER,29/32" x 1 3/8" x .134"

flat, 29/32 x 1-3/8 x 1/8 inch

1шт.

45

615515R91

THRUST BEARING,25.65mm ID x 50.8mm OD x 15.88mm W

thrust

1шт.

46

495-81079

WASHER,1.03" ID x 2.5" OD x 0.12" Thk

flat, 13/32 x 3/4 x 1/64 inch

1шт.

47

38-22028

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

48

1281278C1

SHAFT

discharge

1шт.

49

79885C91

BEARING, BALL,25.4mm ID x 50.8mm OD x 15.88mm W

1 inch

1шт.

50

64952C1

SPROCKET ASSY.

18 teeth

1шт.

51

REF

INSTRUCTION

CHAIN, use 29 links from bulk chain roll 1790D and 1 connecting link 241-1314, see below

1шт.

52

475699R1

SPROCKET ASSY.

13 tooth

1шт.

53

Y24430

KEY,1/4" Sq x 1 1/2", Par

square parallel, 1/4 x 1-1/2 inch

1шт.

54

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

55

95-21044

WASHER,3/8"

flat, 7/16 x 1 x 5/64 inch

4шт.

1790D

CHAIN (AG)

bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

connecting, single pitch, No. 40, 1/2 inch pitch

1шт.
