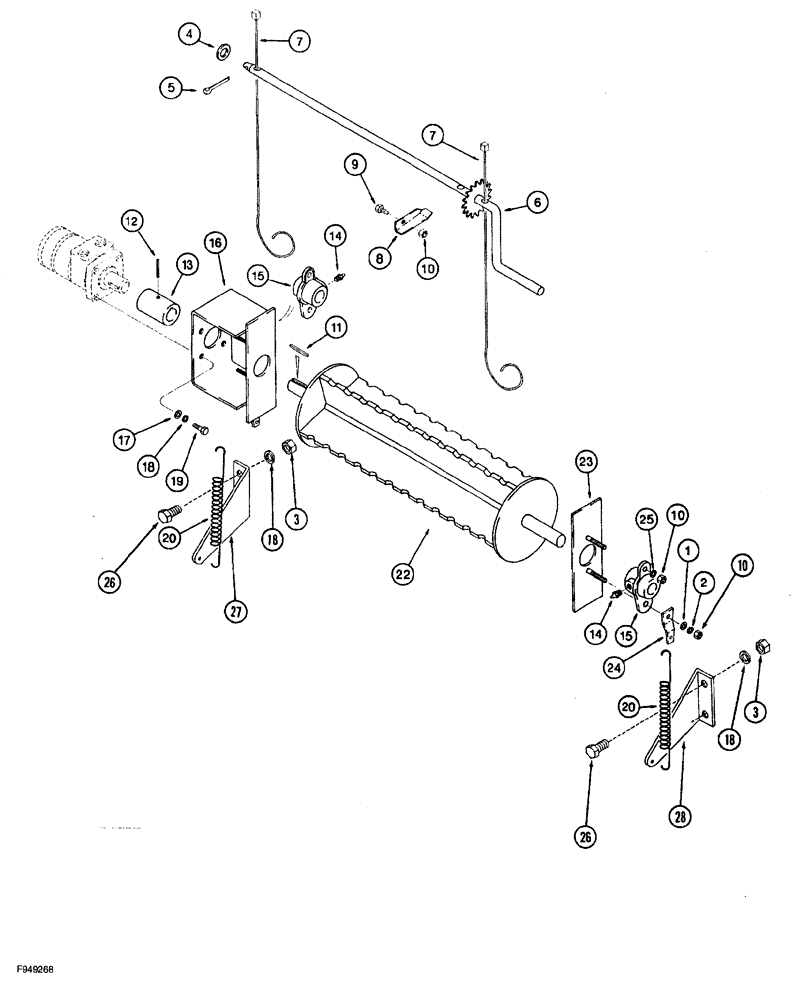

Запчасти Case IH 1260 (9A-018) - ROLL FEED - HYDRAULIC, 1260 MACHINES (12) - CHASSIS

1

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

2

492-11031

LOCK WASHER,5/16"

1шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

5

32-1016

COTTER PIN

PIN cotter, 5/32 x 1 inch

2шт.

6

485928R1

CRANKSHAFT

with ratchet

1шт.

7

485871R1

CABLE

adjustment, roll feed adjusting

2шт.

8

485867R1

SUPPORT

BRACKET crank lock

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

425-105

NUT,5/16"-18, G5

3шт.

11

Q26

KEY,1/4" Sq x 1 1/4", Par

square, 1/4 x 1-1/4 inch

1шт.

12

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1/4" x 1 3/4", Slotted

1шт.

13

79791C1

COUPLING

shaft

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

15

475845R1

BEARING,1.072" ID

roll feed

2шт.

16

79790C1

SUPPORT

MOUNTING hydraulic motor

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

8шт.

18

492-11038

LOCK WASHER,3/8"

8шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

20

485872R1

SPRING

roll feed

2шт.

22

475847R91

HEAD

ROTOR roll feed

1шт.

23

475846R91

PLATE

sliding roll feed

1шт.

24

485870R1

SUPPORT

BRACKET spring holder

1шт.

25

486799R1

LOCK WASHER

lock, special, 5/16 inch

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

27

135741A1

BRACKET

left hand lower spring

1шт.

28

135742A1

BRACKET

right hand lower spring

1шт.
