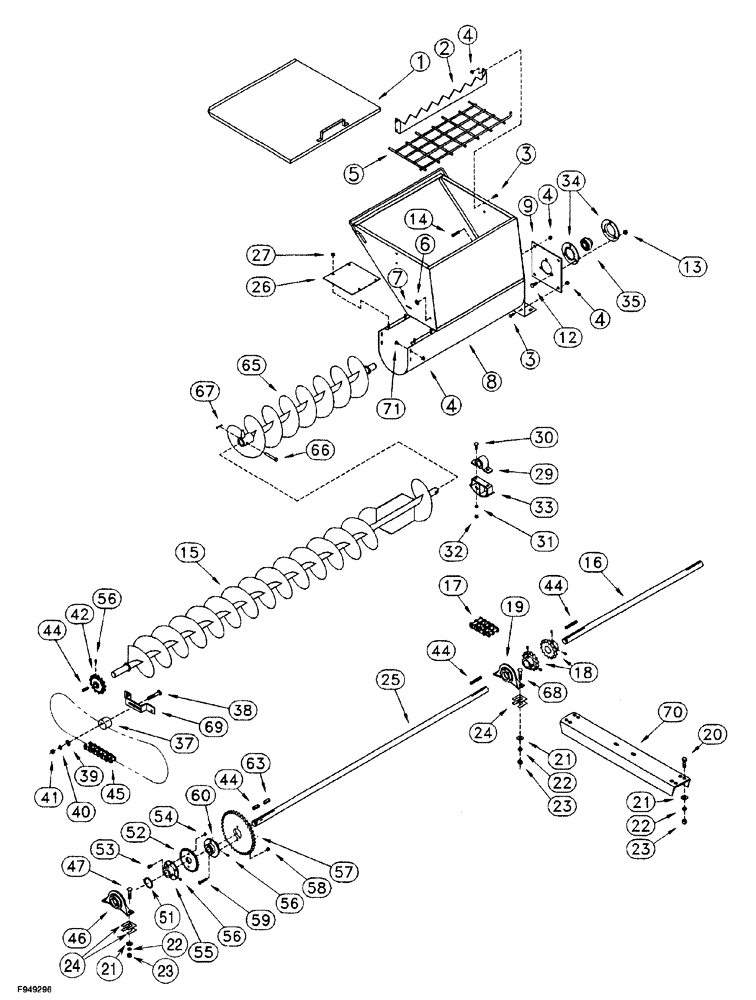

Запчасти Case IH 1260 (9A-010) - SUPPLEMENT HOPPER AND DRIVE (12) - CHASSIS

1

79834C1

LID

hopper, includes decal

1шт.

1a

1000622R7

DECAL

DECAL Warning, do not open cover, not shown, see Fig. 9B-36 for decal

1шт.

2

79846C1

BLADE

CUTTER sack

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

5

79847C1

GRATE

hopper

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

7

432-616

COTTER PIN,3/32" x 1"

1шт.

8

137281A1

HOPPER

supplement

1шт.

9

79845C1

PLATE

hole cover

1шт.

12

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 NC x 1 inch, grade 2

3шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

15

137331A1

AUGER

, Serial Range: mill-mixer

1шт.

16

79770C1

SHAFT

gearbox

1шт.

17

REF

INSTRUCTION

CHAIN, use 13 links from bulk chain roll 28363R1 and 1 connecting link 241-1326, see below

1шт.

18

79922C1

SPROCKET ASSY.

14 teeth

2шт.

19

542727R91

BEARING CARRIER

pillow block

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

21

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

23

425-108

NUT,1/2" - 13, Gr 5

8шт.

24

486454R1

SHIM

0.030 inch thick

4шт.

25

135657A1

SHAFT

mixer drive

1шт.

26

175248A1

COVER

supplement hopper, auger

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

29

79879C91

BEARING CARRIER

pillow block

1шт.

30

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

33

79788C1

BRACKET

bearing holder

1шт.

28363R1

CHAIN (AG)

bulk, No. 60, 10 ft (3048 mm) roll

1шт.

241-1326

LINK,12.7mm Pitch

connecting, single pitch, No. 60-2, 3/4 inch pitch

1шт.

34

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

bearing

2шт.

35

487919R92

BALL BEARING

ball

2шт.

37

56625C1

BLOCK

chain tightener

1шт.

38

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8 NC x 2-1/4 inch

1шт.

39

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

40

492-11038

LOCK WASHER,3/8"

1шт.

41

425-106

NUT,3/8"-16, Cl 5

1шт.

42

488620R1

SPROCKET ASSY.

24 teeth

1шт.

44

586879R1

KEY

square parallel, 5/16 x 2 inch

4шт.

45

REF

INSTRUCTION

CHAIN, use 32 links from bulk chain roll 569088R91 and 1 connecting link 242-138, see below

1шт.

46

542726R91

BEARING CARRIER

pillow block

1шт.

47

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 NC x 1-3/4 inch

2шт.

51

100-11200

SNAP RING,#200, Ext

1шт.

52

541345R2

SPROCKET ASSY.

28 tooth

1шт.

53

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

54

230-4114

NUT,1/4"-20, GA

hex, self locking, 1/4 inch NC

2шт.

55

487848R1

HUB

shear sprocket, with snap ring groove

1шт.

56

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

set, hex socket, 5/16 NC x 5/16 inch, cup point

6шт.

57

79757C1

SPROCKET ASSY.

36 teeth

1шт.

58

230-4115

LOCK NUT,5/16"-18, GA

hex, self locking, 5/16 inch NC

2шт.

59

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

60

79756C1

HUB

shear

1шт.

63

192

KEY,5/16" Sq x 1 5/8", Par

square, 5/16 x 1-5/8 inch

1шт.

65

137282A1

AUGER

concentrate

1шт.

66

27-6225

CLEVIS PIN,3/8" x 2 1/4"

clevis, 3/8 x 2-1/4 inch, hardened

1шт.

67

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

68

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 NC x 1-3/4 inch

2шт.

69

135658A1

BRACKET

chain tightener block

1шт.

70

135656A1

CHANNEL

middle bearing mounting

1шт.

71

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

carriage, 5/16 NC x 1/2 inch, grade 2

4шт.

569088R91

CHAIN (AG)

bulk, 10 foot roll

1шт.

242-138

LINK,7.92mm Pitch

connecting, No. 2040, 1 inch pitch, connecting

1шт.
