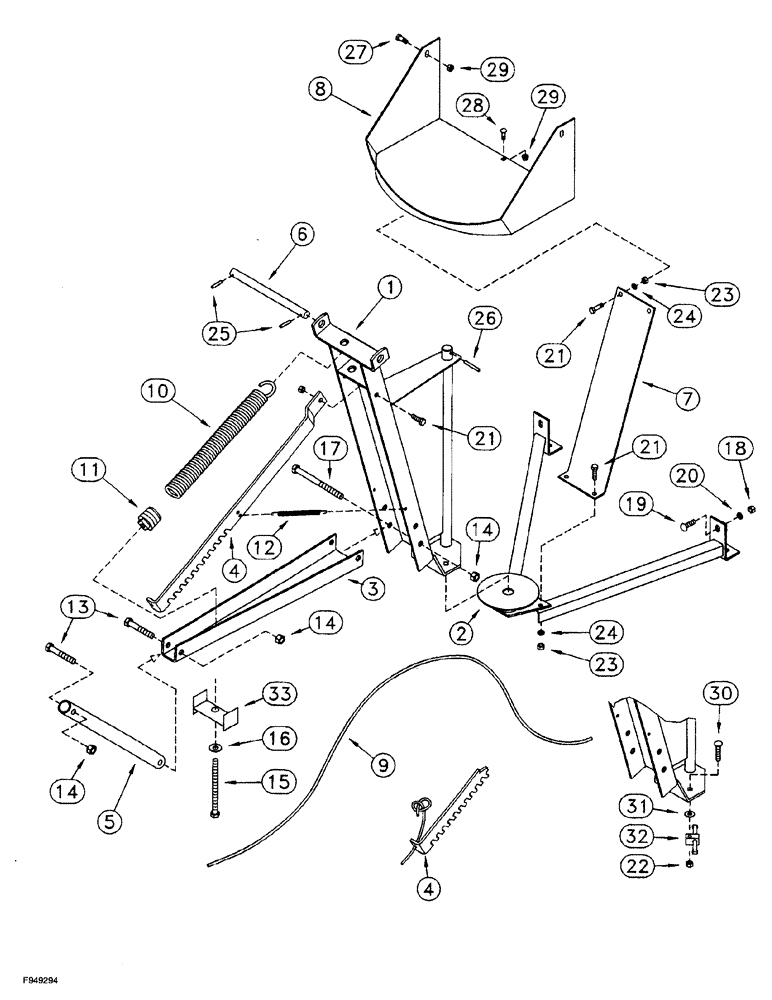

Запчасти Case IH 1260 (9A-006) - AUGER FEEDER, SUPPORT AND PIVOT ASSEMBLY, 1260 MACHINES (12) - CHASSIS

1

1281121C1

PIVOT

BRACKET feeder basket adjustment

1шт.

2

175428A1

SUPPORT

lower

1шт.

3

145825C1

CHANNEL

ratchet

1шт.

4

145826C1

BAR

ratchet

1шт.

5

76031C1

LINK

vertical

1шт.

6

475663R1

PIN

ROD hinge

1шт.

7

175440A1

STRAP

PLATE reinforcement

1шт.

8

135315A1

CONTAINER

BASKET, 20 inch, auger feeder

1шт.

9

NSS

NOT SOLD SEPARAT

ROPE plastic, 3/16 x 105 inch, purchase locally

1шт.

10

76033C1

SPRING

extension

1шт.

11

76032C1

SPRING NUT

spring

1шт.

12

64669C1

SPRING

extension

1шт.

13

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

14

231-4218

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

3шт.

15

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

hex, 1/2 NC x 5 inch

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

hex, 1/2 NC x 5 inch

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

2шт.

19

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 inch

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

22

128366C1

LOCK NUT

hex, self locking, 3/8 inch NC

1шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

26

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

27

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

28

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

5/16 NC x 5/8 inch

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

30

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 NC x 1-1/2 inch

1шт.

31

495-81145

WASHER,13/32" x 1 3/4" x .120"

1шт.

32

145823C2

HANDLE

brake

1шт.

33

79806C1

PIVOT

BRACKET

1шт.
