(8-020) - CONTROL VALVE ASSEMBLY AND MOUNTING, SELF CONTAINED HYDRAULICS

Запчасти Case IH 1260 (8-020) - CONTROL VALVE ASSEMBLY AND MOUNTING, SELF CONTAINED HYDRAULICS (07) - HYDRAULICS

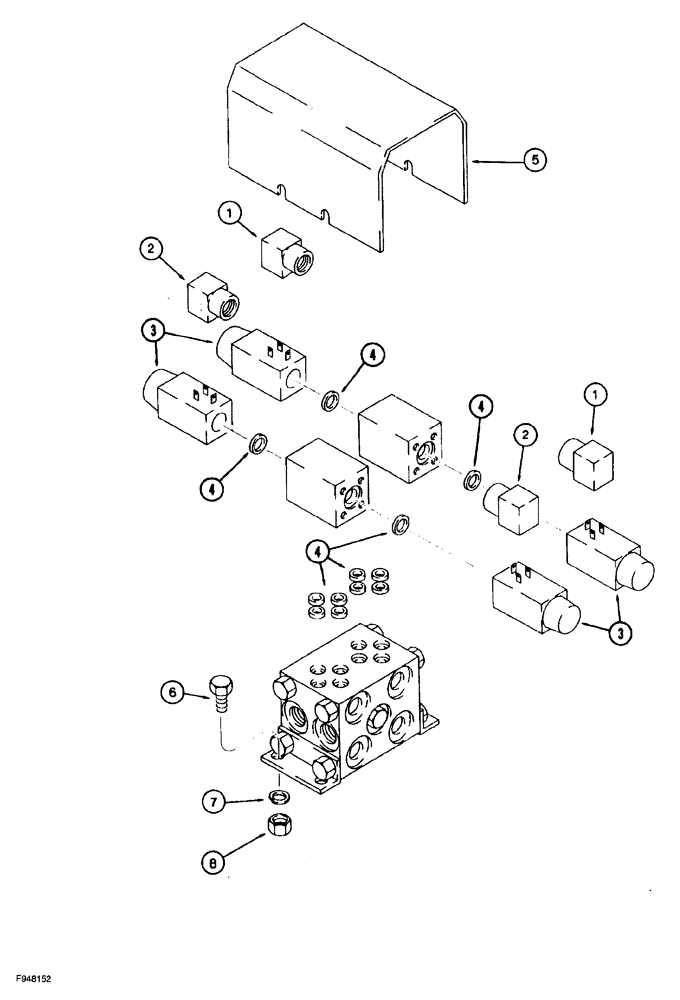

Схема запчастей Case IH 1260 - (8-020) - CONTROL VALVE ASSEMBLY AND MOUNTING, SELF CONTAINED HYDRAULICS (07) - HYDRAULICS
8
4
7
4
1
3
6
5
2
2
3
4
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1547354C1

VALVE

ASSEMBLY, solenoid, 3 way, 4 position

1шт.

1

1547769C1

CONNECTOR, ELEC

CONNECTOR electrical, plug in, red

2шт.

2

1547770C1

CONNECTOR, ELEC

CONNECTOR electrical, plug in, black

2шт.

3

1547772C1

SOLENOID

control valve, 12 VDC

4шт.

4

1547771C1

SEAL KIT

seal replacement, valve

2шт.

5

1547346C1

SHIELD

valve

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

7

492-11031

LOCK WASHER,5/16"

4шт.

8

425-105

NUT,5/16"-18, G5

4шт.
