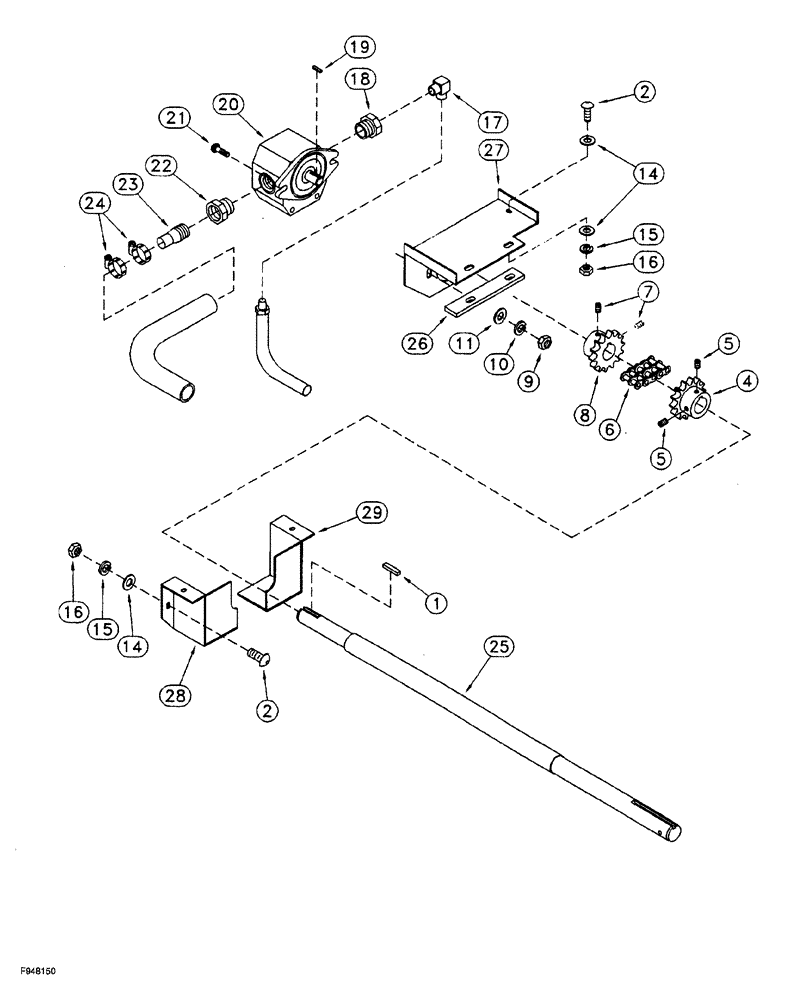

Запчасти Case IH 1260 (8-016) - HYDRAULIC PUMP AND COUPLING, SELF CONTAINED HYDRAULICS (07) - HYDRAULICS

1

Q63

KEY,3/8" Sq x 1 1/2", Par

KEY square, 3/8 x 1-1/2 inch

1шт.

2

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT carriage, 5/16 NC x 1 inch, grade 2

4шт.

4

1547342C1

SPROCKET ASSY.

jackshaft

1шт.

5

483-13816

SET SCREW,Hex Soc, 3/8"-16 x 1"

set, hex socket headless, 3/8 NC x 1 inch, cup point

2шт.

6

REF

INSTRUCTION

COUPLING chain, use 13 links from bulk chain 28363R1 and one connector link 241-1326, see below

1шт.

7

483-1318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

set, hex socket headless, 5/16 NC x 1/2 inch, cup point

2шт.

8

1547343C1

SPROCKET ASSY.

coupling, 7/8 inch ID

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

14

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

6шт.

15

492-11031

LOCK WASHER,5/16"

4шт.

16

425-105

NUT,5/16"-18, G5

4шт.

17

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

ELBOW street, 90 degree, 1/2 inch PT x female PT

1шт.

18

1547350C1

FITTING

ADAPTER straight, special, 1/2 inch NPT

1шт.

19

Y24430

KEY,1/4" Sq x 1 1/2", Par

square parallel, 1/4 x 1-1/2 inch

1шт.

20

1547347C1

PUMP

hydraulic, 540 RPM, component parts not serviced separately, if used

1шт.

20

1547380C1

PUMP

hydraulic, 1000 RPM, component parts not serviced separately, if used

1шт.

21

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 NC x 1-1/2 inch

2шт.

22

1547351C1

FITTING

ADAPTER straight, special, 1 inch NPT, used with 1547347C1 pump

1шт.

22

1547381C1

FITTING

ADAPTER straight, 1 inch PT x female PT, 1 inch NPT, used with 1547380C1 pump

1шт.

23

217-156

FITTING,1" Hose Barb x 1" Male NPTF

ADAPTER straight, 1 inch stem end x PT

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

2шт.

25

1547391C1

JACKSHAFT

mill, 26 inch

1шт.

26

176253A1

SPACER

pump mount

1шт.

27

176252A1

MOUNTING PARTS

BRACKET pump mounting

1шт.

28

176251A1

SHIELD

self contained pump

1шт.

29

176250A1

SHIELD

self contained pump

1шт.

28363R1

CHAIN (AG)

bulk, No. 60, 10 ft (3048 mm) roll

1шт.

241-1326

LINK,12.7mm Pitch

connecting, single pitch, No. 60-2, 3/4 inch pitch

1шт.
