(8-012) - HYDRAULIC RESERVOIR, SELF CONTAINED HYDRAULICS

Запчасти Case IH 1260 (8-012) - HYDRAULIC RESERVOIR, SELF CONTAINED HYDRAULICS (07) - HYDRAULICS

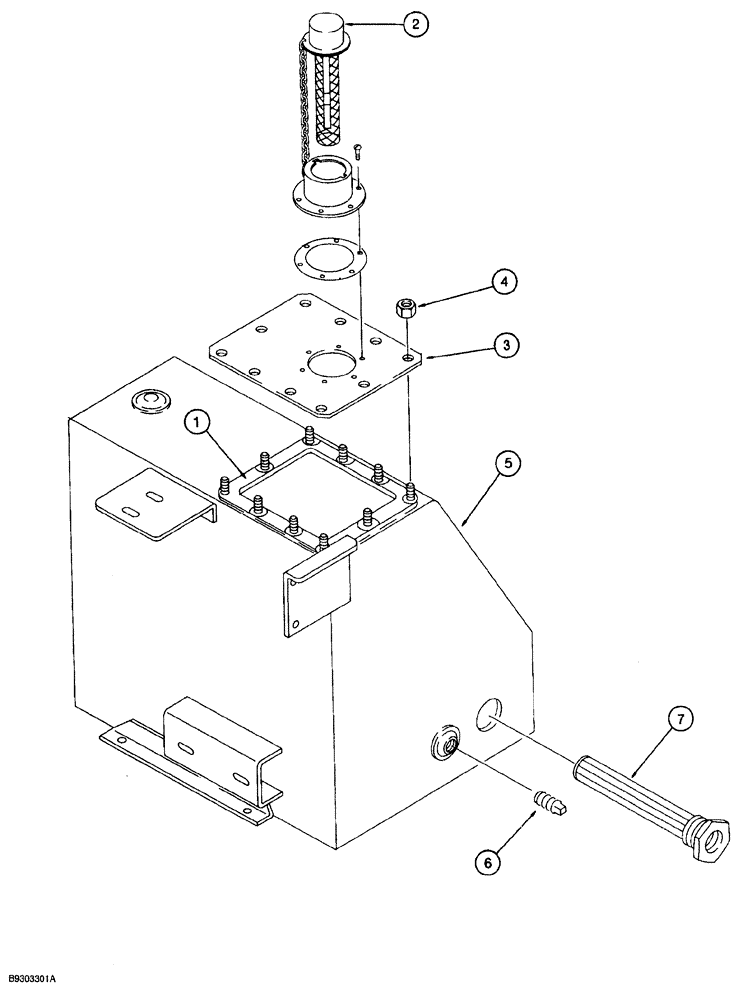

Схема запчастей Case IH 1260 - (8-012) - HYDRAULIC RESERVOIR, SELF CONTAINED HYDRAULICS (07) - HYDRAULICS
6
3
7
5
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

B17575

FLUID

SEALANT, black RTV silicone, 3 ounce (89 ml) tube

1шт.

2

1547378C1

FILLER

CAP reservoir, with breather

1шт.

3

1547776C1

COVER

hydraulic reservoir

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

5

1547344C1

RESERVOIR

hydraulic

1шт.

6

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

square socket, magnetic, 3/4 inch PT

1шт.

7

1547379C1

STRAINER ASSY.

hydraulic reservoir

1шт.
