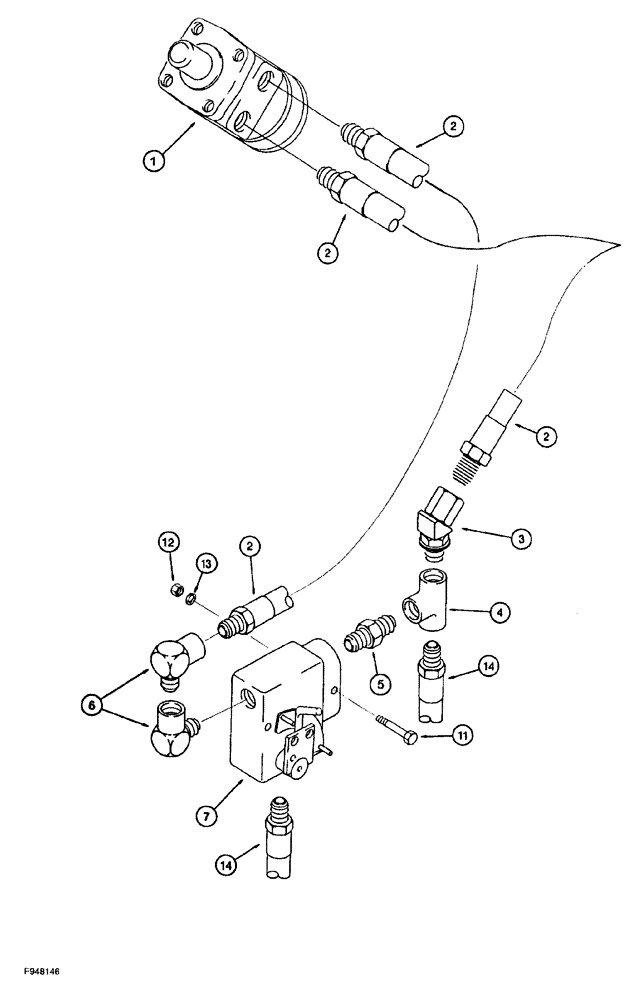

Запчасти Case IH 1260 (8-006) - HYDRAULIC AUGER FEEDER (07) - HYDRAULICS

1

485963R91

MOTOR, ELECTRIC

hydraulic, auger feeder, component parts not serviced separately

1шт.

1980817C1

SEAL KIT

seal

1шт.

2

57968C1

HYDRAULIC HOSE,12.70 mm ID x 406.40 mm

2шт.

3

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

street, 45 degree, 1/2 inch PT x female PT

1шт.

4

217-1163

TEE,1/2"-14 Female

pipe, 1/2 inch female

1шт.

5

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE hex, 1/2 PT x 1-7/8 inch

1шт.

6

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

ELBOW street, 90 degree, 1/2 inch PT x female PT

2шт.

7

145776C2

VALVE

flow control, component parts not serviced separately

1шт.

11

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

12

425-104

NUT,1/4"-20, Cl 5

2шт.

13

492-11025

LOCK WASHER,1/4"

2шт.

14

1281170C1

HOSE

200 inch (5080 mm) long, to flow divider valve

2шт.
