(4-010) - DISCHARGE ACTUATOR AND CONTROL, SELF CONTAINED HYDRAULICS

Запчасти Case IH 1260 (4-010) - DISCHARGE ACTUATOR AND CONTROL, SELF CONTAINED HYDRAULICS (06) - ELECTRICAL

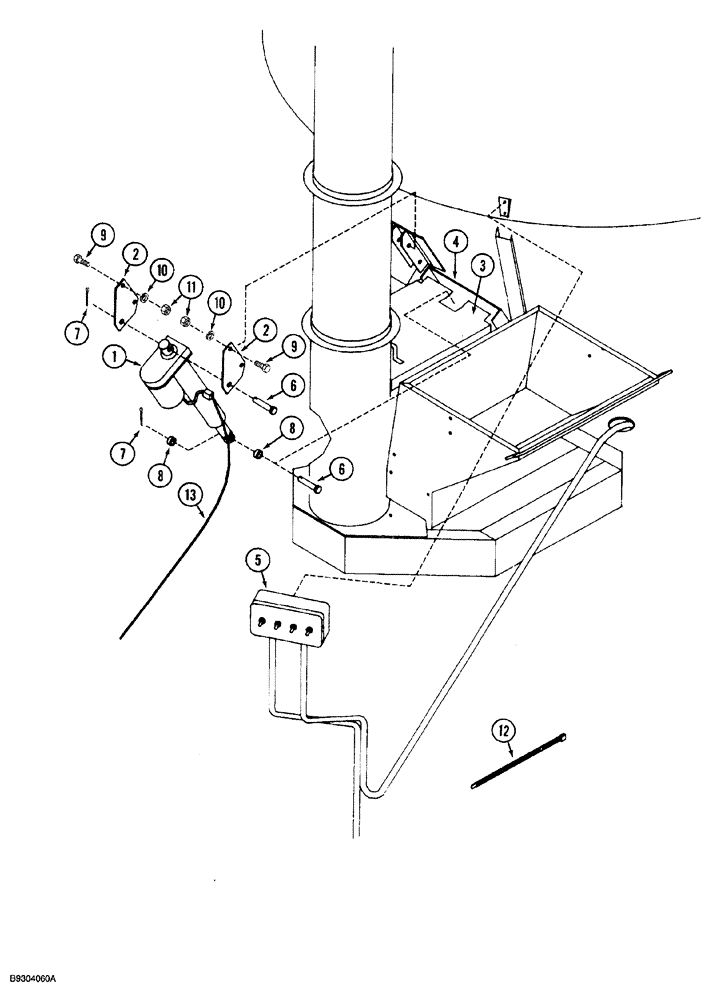

Схема запчастей Case IH 1260 - (4-010) - DISCHARGE ACTUATOR AND CONTROL, SELF CONTAINED HYDRAULICS (06) - ELECTRICAL
1
6
6
2
9
9
7
8
13
4
3
12
11
2
10
7
5
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102063A1

ACTUATOR

electromechanical, component parts not serviced separately

1шт.

2

1547383C1

PLATE

mounting

2шт.

3

1547389C1

COVER

hopper

1шт.

4

1547384C1

DOOR

discharge

1шт.

5

120211A1

CONTROL

ASSEMBLY, tractor remote, parts list Fig. 4-6

1шт.

6

27-8221

CLEVIS PIN,1/2" x 2.218"

1/2 x 2-7/32 inch, hardened

2шт.

7

32-824

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

8

872534R1

SPACER,1/2" Pipe x 3/8"

tubular, 1/2 x 3/8 inch

2шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

58556C1

CABLE TIE

CABLE STRAP 14" long

10шт.

13

1547356C1

HARNESS

wiring

1шт.
