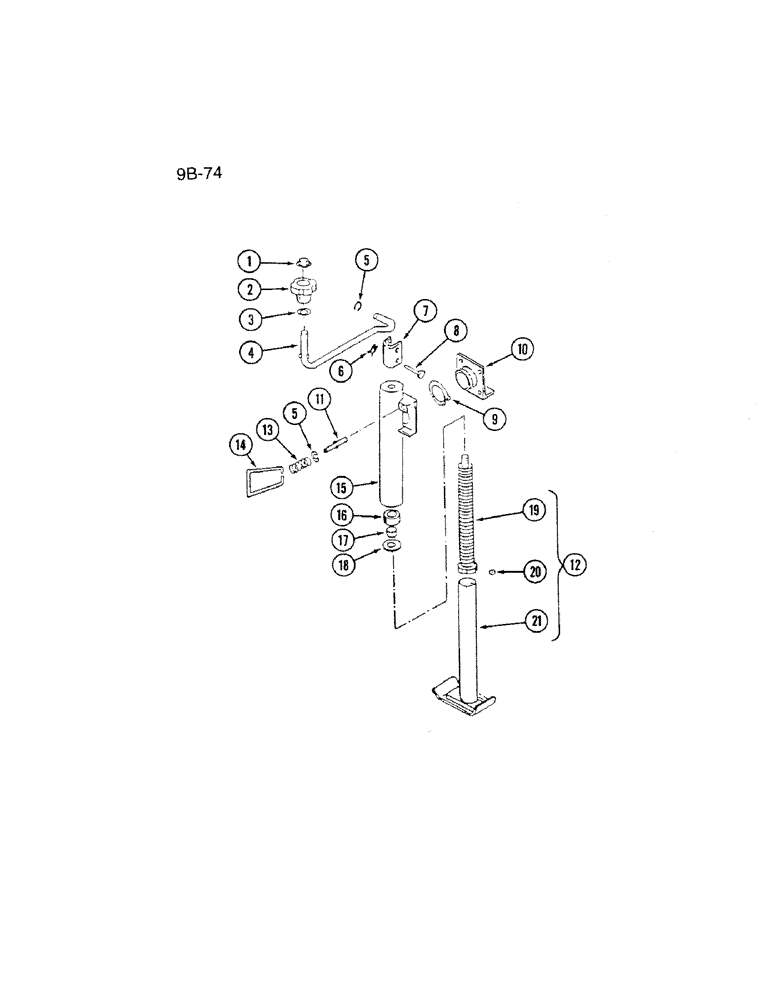

Запчасти Case IH 1250 (9B-74) - JACK, SWIVEL TYPE, 1250 MACHINES, MACHINES BUILT PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

475862R92

JACK

ASSEMBLY - swivel type

1шт.

1

62840C1

CAP

- handle

1шт.

2

62841C1

CRANK

KNOB - handle

1шт.

3

20869R1

WASHER

- flat, 17/32 x 7/8 x 3/64 inch

1шт.

4

1256366C1

CRANK

HANDLE

1шт.

5

62845C1

RING

SNAP RING - crank retaining

1шт.

6

277395R1

RETAINER

WASHER

1шт.

7

62844C1

SUPPORT

SLEEVE - handle, jack crank

1шт.

8

59106C1

PIN

- crank handle

1шт.

9

475863R1

RING

- retaining

1шт.

10

542660R1

BRACKET

- jack

1шт.

11

59108C1

PLUNGER

- lock pin

1шт.

12

64502C1

SCREW

AND FOOT ASSEMBLY - bottom

1шт.

13

59109C1

SPRING

- plunger

1шт.

14

59110C1

RING

- pull

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - outer (Order 475862R92)

1шт.

16

59111C91

THRUST BEARING

BEARING - thrust

1шт.

17

59112C1

BUSHING

- nylon

1шт.

18

59113C1

THRUST WASHER

- thrust

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - left hand thread (Order 64502C1)

1шт.

20

59114C1

BALL

- rack keeper

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE - inner (Order 64502C1)

1шт.
