Запчасти Case IH 1250 (9B-64) - SHIELDS, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

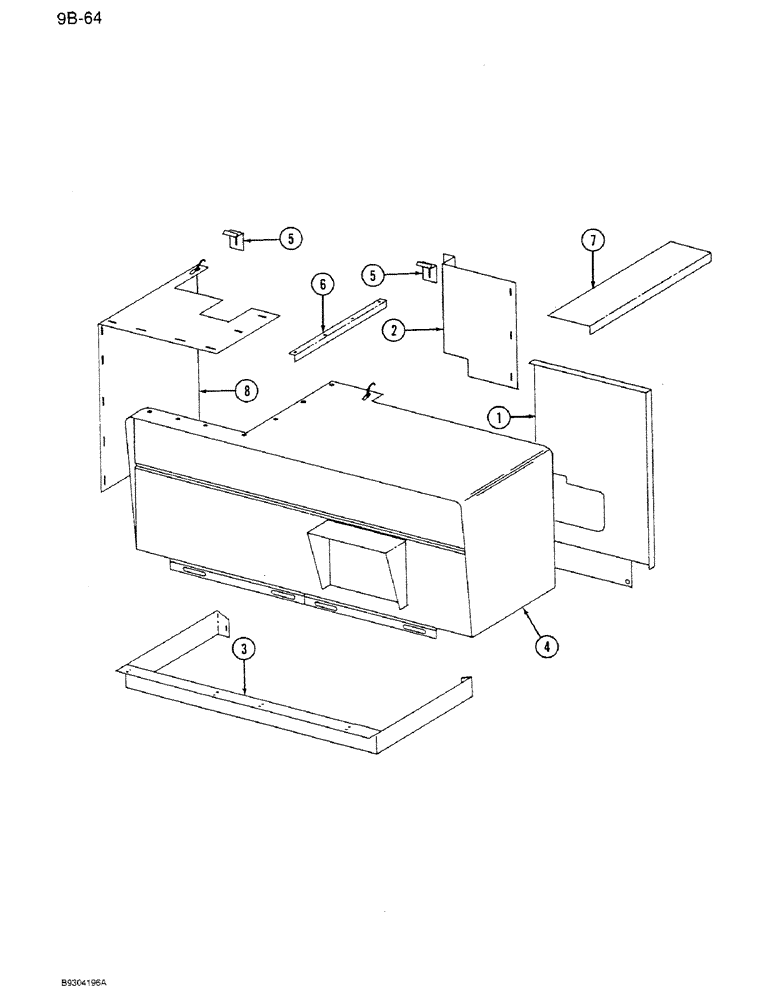

Схема запчастей Case IH 1250 - (9B-64) - SHIELDS, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

Артикул

Название

Примечание

Количество

1

76543C1

PANEL

- back, main drive shaft

1шт.

2

76544C1

SHIELD

- rear

1шт.

3

76545C1

SHIELD

- base

1шт.

4

76546C1

SHIELD

- main drive, with decal

1шт.

5

488798R1

CLIP

LATCH - main drive shield

1шт.

6

76547C1

SHIELD

ANGLE - top shield

1шт.

7

76548C1

SHIELD

- jackshaft

1шт.

8

76361C1

PANEL

- end cover (For machines with bale feeder)

1шт.

8

76721C1

COVER

PANEL - end cover (For machines without drag, roll feed or bale feeder)

1шт.

8

76722C1

COVER

PANEL - end cover (For machines with auger drag feeder)

1шт.

8

76081C1

COVER

PANEL - end cover (For machines with roll feed and without auger drag or bale feeder)

1шт.

8

76940C1

COVER

PANEL - end cover (For machines with corn sheller)

1шт.

Выбрано товаров: 12
