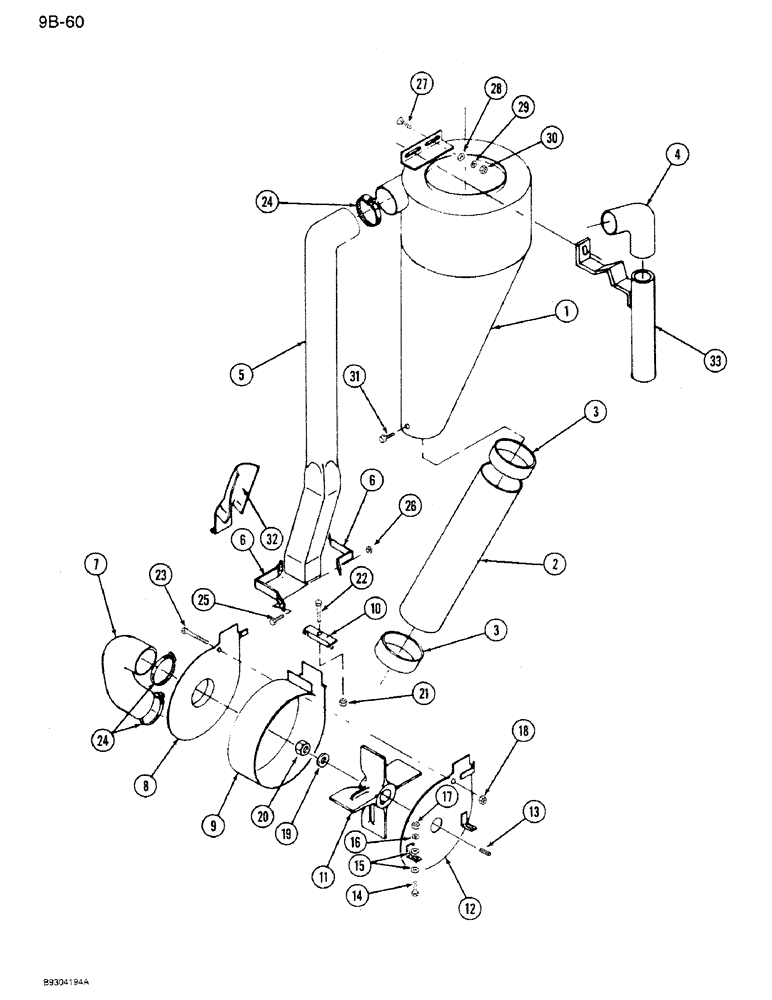

Запчасти Case IH 1250 (9B-60) - HAMMERMILL DUST COLLECTOR, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

1281129C1

CONTAINER

- dust collector

1шт.

2

542656R1

TUBE

PIPE - tube to dust collector coupler

1шт.

3

1985981C1

BAND

- rubber, 7 inch diameter (Replaces 1281148C1)

2шт.

4

75941C1

HOSE,2.00" ID x 3.50", SAE 20R4 Class SC

Elbow 2.00" ID x 3.50", SAE 20R4 Class SC

1шт.

5

1281130C1

TUBE,40 mm ID, 49.88 mm Length

- blower to dust collector (If equipped)

1шт.

6

1281228C1

CLAMP

- half dog leg (If equipped)

2шт.

7

1281229C1

ELBOW

- suction pipe

1шт.

8

79778C1

PLATE

- rear side

1шт.

9

1281204C1

SHIELD

HOUSING ASSEMBLY - fan wrapper (Machines built prior to PIN CCD2052)

1шт.

9

79774C1

SUPPORT

HOUSING ASSEMBLY - fan wrapper (Machines built PIN CCD2052 and after)

1шт.

10

79775C1

CLAMP

- pull down

1шт.

11

475768R1

FAN

- dust collector

1шт.

12

1281136C1

PLATE

- front side

1шт.

13

Q87

KEY,3/8" Sq x 1 1/2", Par

- square parallel, 3/8 x 1-1/4 inch

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

2шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

19

487915R1

WASHER

- flat, 1-1/2 x 2 inch

1шт.

20

219779

CLUTCH

- hex, 1-1/2 inch NF

1шт.

21

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

22

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

23

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

24

422688R91

HOSE CLAMP,#72, 4.06/5.00 Type F Worm

CLAMP - hose (If equipped)

3шт.

25

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

28

NSS

NOT SOLD SEPARAT

WASHER - flat, 15/32 x 1 x 5/46 inch

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - hex washer head, No. 8 x 1/2 inch

1шт.

32

1281189C1

INSERT

- tube (If equipped)

1шт.

33

1281190C1

TUBE

- with bracket

1шт.

1986299C1

KIT - blower to dust collector (Replaces Ref 5, 6, 24 and 32)

1шт.

1986297C1

TUBE

ASSEMBLY - vertical

1шт.

1986298C1

ELBOW

1шт.

1986297C1

TUBE

BAND - rubber, 4 inch diameter

2шт.
