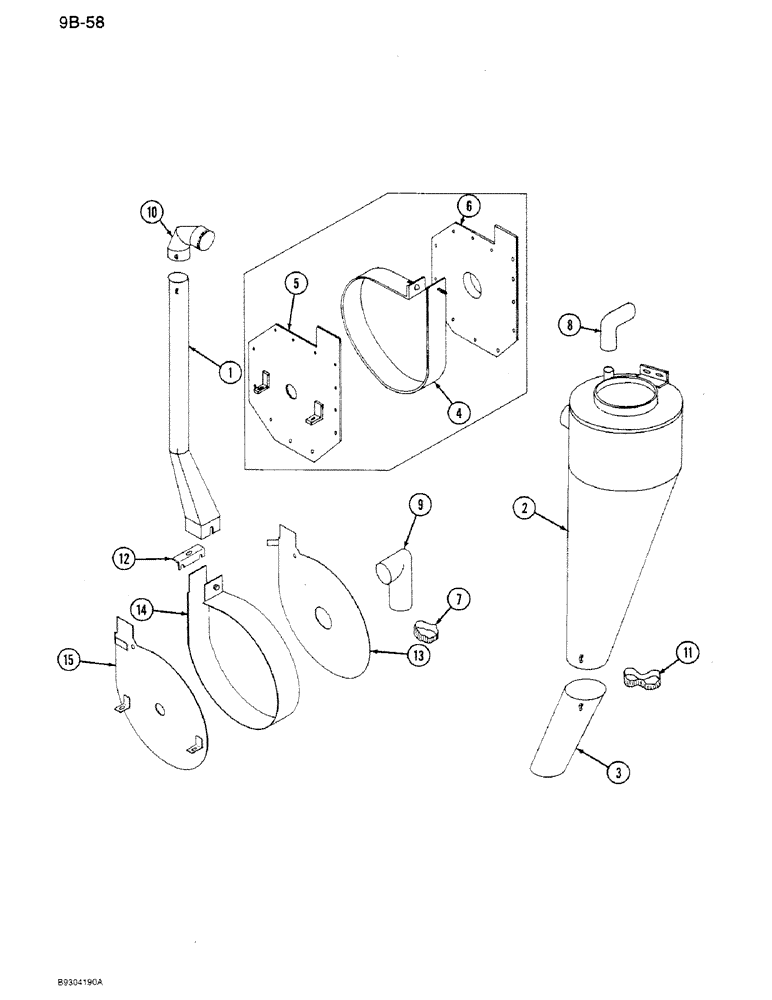

Запчасти Case IH 1250 (9B-58) - HAMMERMILL DUST COLLECTOR, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

542657R1

TUBE

PIPE - blower to dust collector

1шт.

2

75940C1

CHUTE ASSY.

CHUTE - dust collector

1шт.

3

542656R1

TUBE

PIPE - tube to dust collector cover

1шт.

4

475793R1

SHROUD

HOUSING - circular fan (Machines built prior to PIN 4229)

1шт.

5

475794R1

HOUSING - next to mill (Machines built prior to PIN 4229)

1шт.

6

75943C1

PLATE

- outside (Machines built prior to PIN 4229)

1шт.

7

75945C1

BAND

- rubber, 4 inch

1шт.

8

75941C1

HOSE,2.00" ID x 3.50", SAE 20R4 Class SC

Elbow 2.00" ID x 3.50", SAE 20R4 Class SC

1шт.

9

75942C1

TUBE

- suction pipe

1шт.

10

475790R1

PIPE

ELBOW - pipe, 28 GA

1шт.

11

1985980C1

BAND

- rubber, 6 inch (Replaces 75937C1)

1шт.

12

1256640C1

ANGLE

CLAMP - pull down (Machines built PIN 4229 through 5451)

1шт.

12

79775C1

CLAMP

- pull down (Machines built PIN 5452 and after)

1шт.

13

1256639C1

PLATE

ASSEMBLY - rear side (Machines built PIN 4229 through 5451)

1шт.

13

79778C1

PLATE

ASSEMBLY - rear side (Machines built PIN 5452 and after)

1шт.

14

1256637C1

CLAMP

HOUSING ASSEMBLY - fan wrapper (Machines built PIN 4229 through 5451)

1шт.

14

79774C1

SUPPORT

HOUSING ASSEMBLY - fan wrapper (Machines built PIN 5452 and after)

1шт.

15

1256638C1

PLATE

ASSEMBLY - front side (Machines built PIN 4229 through 5441)

1шт.

15

79777C1

PLATE

ASSEMBLY - front side (Machines built PIN 5442 and after)

1шт.

1251035C91

PACKAGE

KIT - tank vent tube service in collector (Machines built prior to PIN 4488)

1шт.
