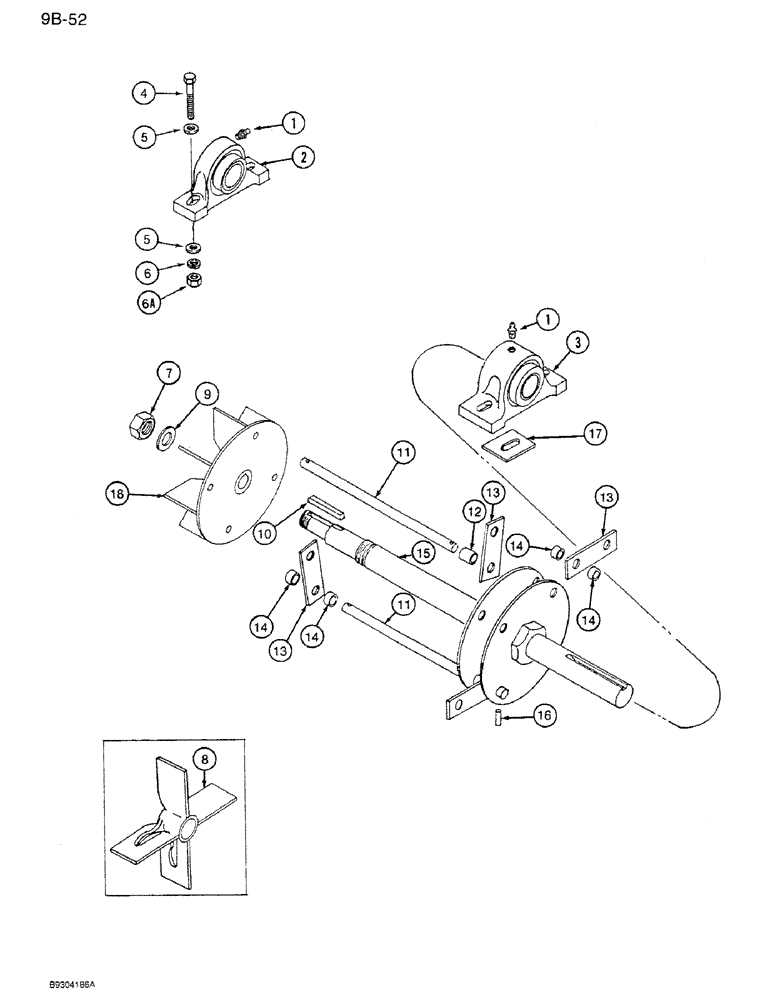

Запчасти Case IH 1250 (9B-52) - HAMMERMILL SHAFT, 1250 MACHINES (09) - CHASSIS ATTACHMENTS

1

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING - grease, special

2шт.

2

475764R91

BEARING ASSY,5" OD x 2.38"

BEARING - pillow block

1шт.

3

485936R91

BEARING CARRIER

BEARING - pillow block

1шт.

4

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

5

21793R1

WASHER

- flat, 21/32 x 1-1/4 x 5/32 inch

8шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6a

425-1010

NUT,5/8"-11, G5

4шт.

7

IH219779

NUT

- hex jam, 1-1/2 inch

1шт.

8

475768R1

FAN

- dust collector (If equipped)

1шт.

9

487915R1

WASHER

- flat, 1-1/2 x 2 inch

1шт.

10

Q87

KEY,3/8" Sq x 1 1/2", Par

- square parallel, 3/8 x l-1/4 inch

1шт.

11

475766R1

ROD

- hammer

4шт.

12

582542R1

SPACER,3/4" Pipe x 1 1/4"

- hammer

2шт.

13

491393R91

PACKAGE

HAMMERS - set of 36 (Includes tool)

1шт.

14

555696R1

SPACER,3/4" Pipe x 5/8"

- hammer

36шт.

15

76457C1

SHAFT

- hammermill

1шт.

16

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

8шт.

17

542653R1

GASKET

- seating (If equipped)

4шт.

18

79776C1

FAN

- dust collector (If equipped)

1шт.
