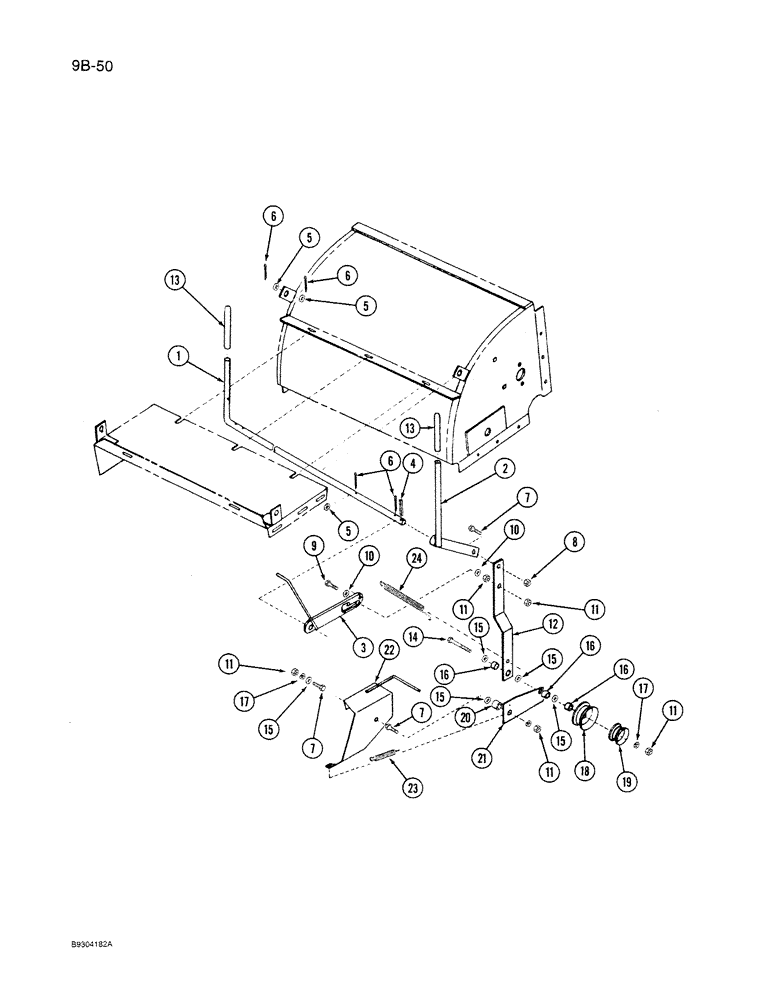

Запчасти Case IH 1250 (9B-50) - HAMMERMILL CLUTCH, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

75989C1

ROD

- clutch

1шт.

2

75990C1

LEVER

- shut off

1шт.

3

75991C1

HANDLE

- lock

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - roll, 1/4 x 1-1/4 inch

1шт.

5

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

6

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

10

75992C1

WASHER

- flat, 3/8 x 1-3/4 x 7/64 inch

2шт.

11

425-106

NUT,3/8"-16, Cl 5

5шт.

12

138539C1

ARM

- linkage

1шт.

13

75994C1

GRIP

- handle

2шт.

14

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

16

542716R1

SPACER

3шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

1344783C1

PULLEY

- idler, 3-1/4 inch (Replaces 475745R1)

1шт.

19

75995C1

PULLEY

- idler, 2-1/4 inch

1шт.

20

75930C1

WASHER

SPACER

1шт.

21

75997C1

BRACKET

- belt tightener

1шт.

22

75997C1

BRACKET

- belt tightener

1шт.

23

1265818C1

SPRING

1шт.

24

64669C1

SPRING

- extension

1шт.
