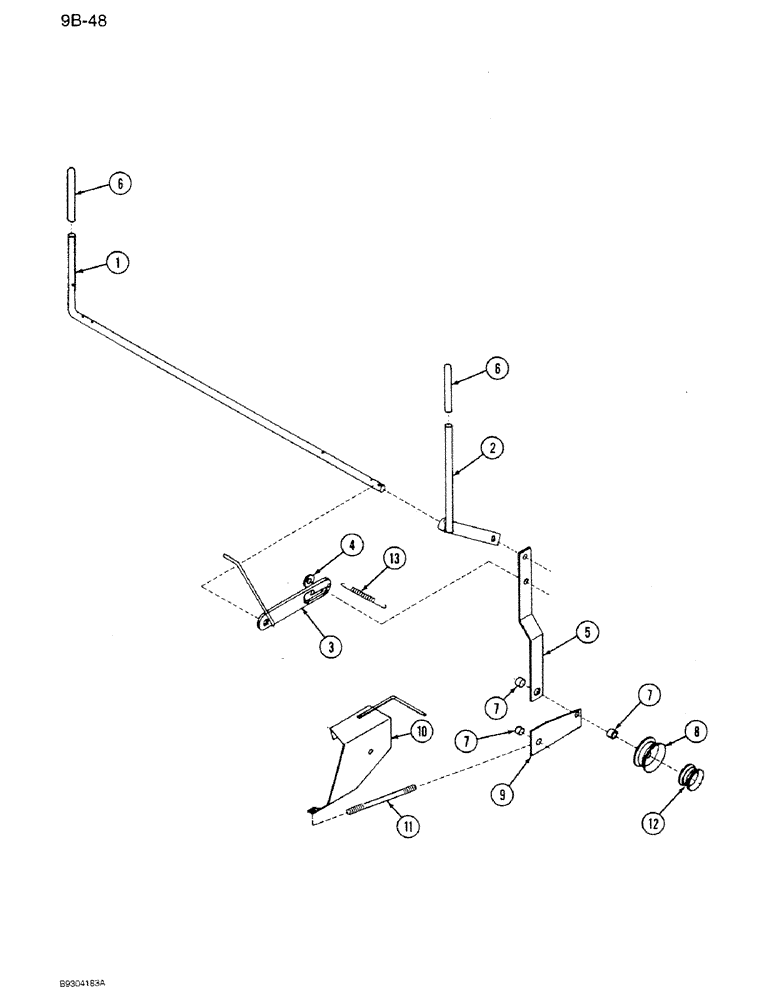

Запчасти Case IH 1250 (9B-48) - CLUTCH, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

75989C1

ROD

- clutch

1шт.

2

75990C1

LEVER

- shut off

1шт.

3

75991C1

HANDLE

- lock

1шт.

4

75992C1

WASHER

- flat

2шт.

5

138539C1

ARM

SUPPORT - linkage

1шт.

6

75994C1

GRIP

- handle

2шт.

7

542716R1

SPACER

3шт.

8

1344783C1

PULLEY

- 3-1/4 inch (Replace 475745R1)

1шт.

9

75996C1

SUPPORT

- belt tightener

1шт.

10

75997C1

BRACKET

ASSEMBLY - belt tightener

1шт.

11

1265818C1

SPRING

1шт.

12

75995C1

PULLEY

1шт.

13

64669C1

SPRING

- extension

1шт.
