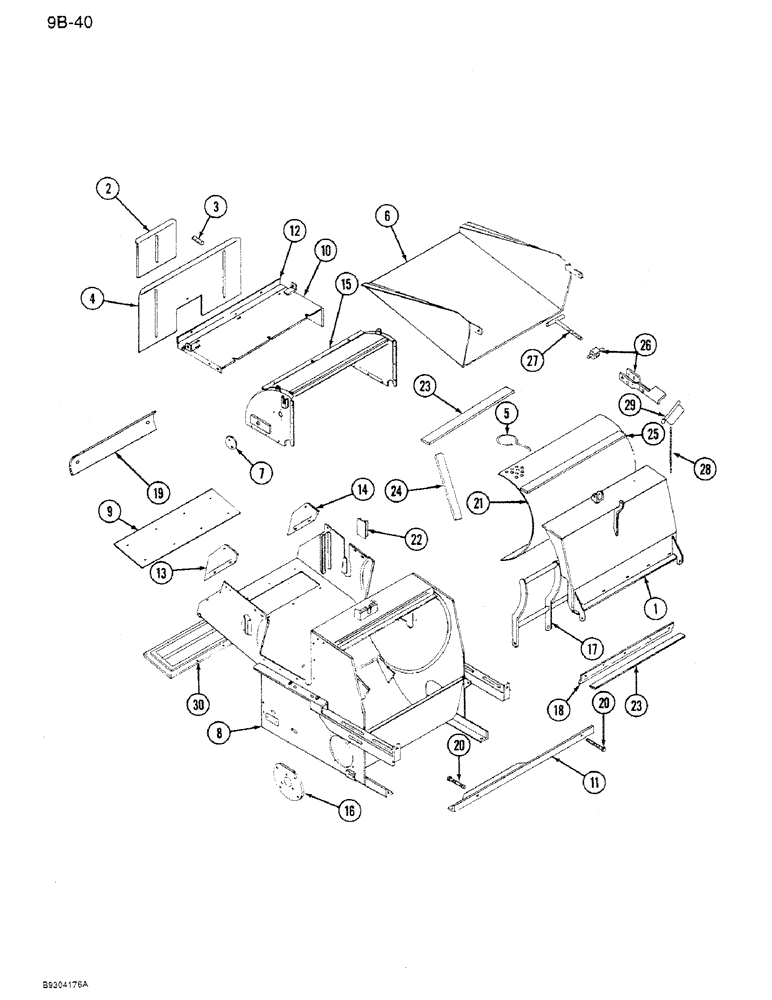

Запчасти Case IH 1250 (9B-40) - HAMMERMILL, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

75952C1

DOOR

- hammermill

1шт.

1

77263C1

DOOR

- hammermill, with decal (Used with corn sheller attachment)

1шт.

77264C1

CAP

- tube (Used with corn sheller)

1шт.

2

475800R1

GATE - small feed control

1шт.

3

475801R1

SPRING

- compression

2шт.

4

475802R1

GUIDE

GATE - large feed control

2шт.

5

475805R1

HOOK

- screen

1шт.

6

475806R91

HOPPER

- folding mill (Used only with machines not equipped with drag)

1шт.

7

475809R1

RETAINER

PLATE - hammer rod removal

1шт.

8

75951C1

HOUSING

- main hammermill

1шт.

9

485862R1

SUPPORT

PLATE - magnet hole cover

1шт.

10

75946C1

COVER

- roll feed (Machines built prior to PIN 3750)

2шт.

10

485863R1

COVER

- roll feed (Machines built PIN 3750 and after)

1шт.

11

542650R1

BRACKET - belt tightener

1шт.

12

75947C1

SUPPORT

- roll feed cover (If equipped)

1шт.

13

76362C1

PLATE

- front mill (If equipped)

1шт.

14

75949C1

PLATE

- rear mill (If equipped)

1шт.

15

75950C1

HOOD

- hammermill

1шт.

16

542860R1

PLATE

- bearing holder

1шт.

17

75953C1

SUPPORT

SCREEN

1шт.

18

75954C1

SUPPORT

- seal

1шт.

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

19

75980C1

BAR

- bar, mill plate (If equipped)

1шт.

20

485351R1

BOLT,Hex, 1/2" - 13 x 5", Full Thd

- hex, 1/2 NC x 5 inch

1шт.

21

542049R1

SCREEN

- 1/8 inch holes

1шт.

21

542050R1

SCREEN

- 3/16 inch holes

1шт.

21

542051R1

SCREEN

- 1/4 inch holes

1шт.

21

542909R1

SCREEN

- 5/16 inch holes

1шт.

21

542052R1

SCREEN

- 3/8 inch holes

1шт.

21

542054R1

SCREEN

- 1/2 inch holes

1шт.

21

542055R1

SCREEN

- 5/8 inch holes

1шт.

21

542056R1

SCREEN

- 3/4 inch holes

1шт.

21

542057R1

SCREEN

- 1 inch holes

1шт.

21

542058R1

SCREEN

- 1-1/4 inch holes

1шт.

21

542059R1

SCREEN

- 1-1/2 inch holes

1шт.

21

542060R1

SCREEN

- 2 inch holes

1шт.

22

475848R1

COVER

- hopper (Used only with machines not equipped with feed roll)

1шт.

23

76971C1

SEALING STRIP

- sealing 1/4 x 3/4 x 20 inch

2шт.

24

76972C1

SEALING STRIP

- sealing 1/4 x 3/8 x 20 inch

1шт.

25

76973C1

SEALING STRIP

- sealing 3/8 x 1 x 20 inch

1шт.

26

75971C1

HANDLE

- locking with pivot

1шт.

27

145747C1

HANDLE

- T bar

1шт.

28

75973C1

CHAIN (AG)

CHAIN - (If equipped)

1шт.

29

76381C1

PIN

- snap

1шт.

30

77985C91

MAGNET

- No.4 - 18 inch

1шт.
