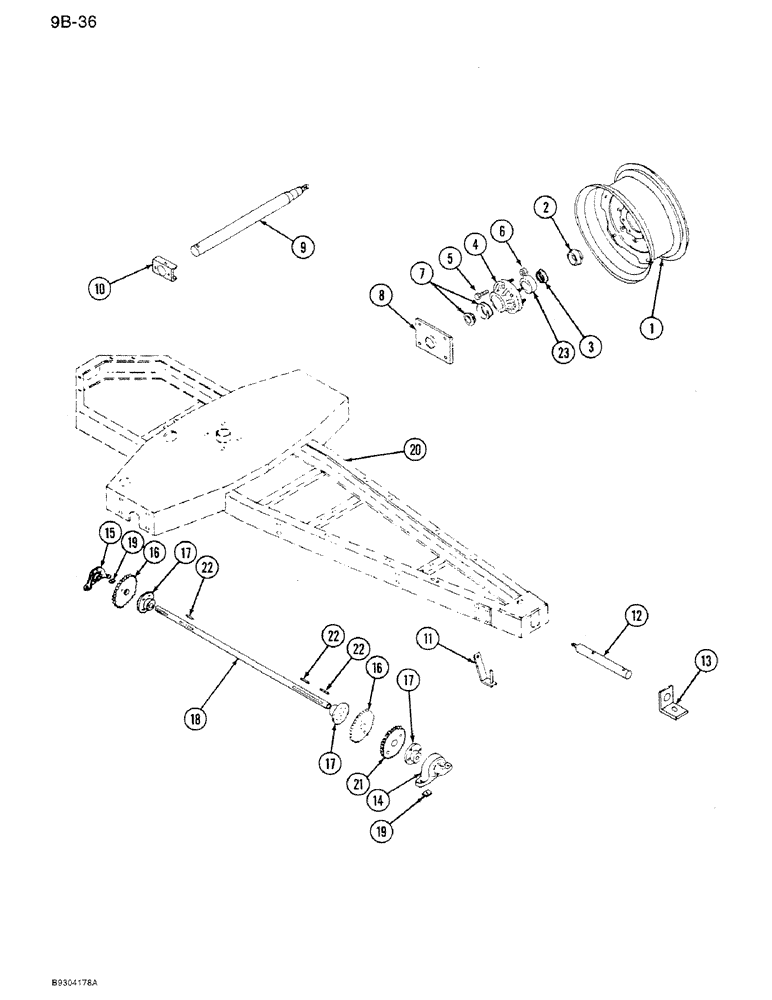

Запчасти Case IH 1250 (9B-36) - MIXER DRIVE AND WHEELS, 1250 MACHINES (09) - CHASSIS ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A57879
RIM
WHEEL - 15 inch
2шт.
387897R91
VALVE STEM
VALVE - wheel
2шт.
2
518842R1
CAP
- hub
1шт.
4
654341R91
HUB
- wheel
2шт.
5
660102R1
BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"
BOLT - wheel hub
12шт.
6
453770R1
WHEEL NUT
- wheel hub bolt
12шт.
7
459912R91
BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"
BEARING ASSEMBLY - roller
2шт.
8
543198R1
BRACKET
2шт.
9
57961C1
SPINDLE
2шт.
10
57962C1
BRACKET
2шт.
11
75901C1
HOLDER
- PTO
1шт.
12
75960C1
ROD
BAR - hitch
1шт.
13
548148R1
CLEVIS
1шт.
424-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 2
- hex, 3/4 NC x 4-1/2 inch (Grade 2)
1шт.
492-11075
LOCK WASHER,3/4"
3/4"
1шт.
425-1012
NUT,3/4"-10, G5
- hex,3/4 inch NC
1шт.
492-11100
LOCK WASHER,1"
1"
1шт.
425-1016
NUT,1"-8, G5
- hex, 1 inch NC
1шт.
14
542726R91
BEARING CARRIER
BEARING - front, pillow block
1шт.
15
542727R91
BEARING CARRIER
- rear, pillow block
1шт.
16
541345R2
SPROCKET ASSY.
SPROCKET - 28 tooth
2шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
4шт.
17
487848R1
HUB
- shear
3шт.
18
75913C1
SHAFT
- mixer drive
1шт.
19
75961C1
BAR
SPACER - 10 GA
2шт.
19
75962C1
BAR
SPACER - 16 GA
2шт.
19
145748C1
SPACER
- 18 GA
2шт.
20
NSS
NOT SOLD SEPARAT
FRAME
1шт.
21
57960C1
SPROCKET ASSY.
SPROCKET - 28 tooth, 540 rpm (Machines built prior to PIN 7315)
1шт.
21
488518R2
SPROCKET ASSY.
SPROCKET - 25 tooth, 540 rpm (Machines built PIN 7315 and after)
1шт.
21
488521R2
SPROCKET ASSY.
SPROCKET - 48 tooth, 1000 rpm (Machines built prior to PIN CCD2177)
1шт.
21
79757C1
SPROCKET ASSY.
SPROCKET - 36 tooth, 1000 rpm (Machines built PIN CCD2177 and after)
1шт.
22
586879R1
KEY
- square parallel, 5/16 x 2 inch
3шт.
23
651817R1GV
BEARING CUP
Value, Bearing Cup
2шт.
Выбрано товаров: 36
