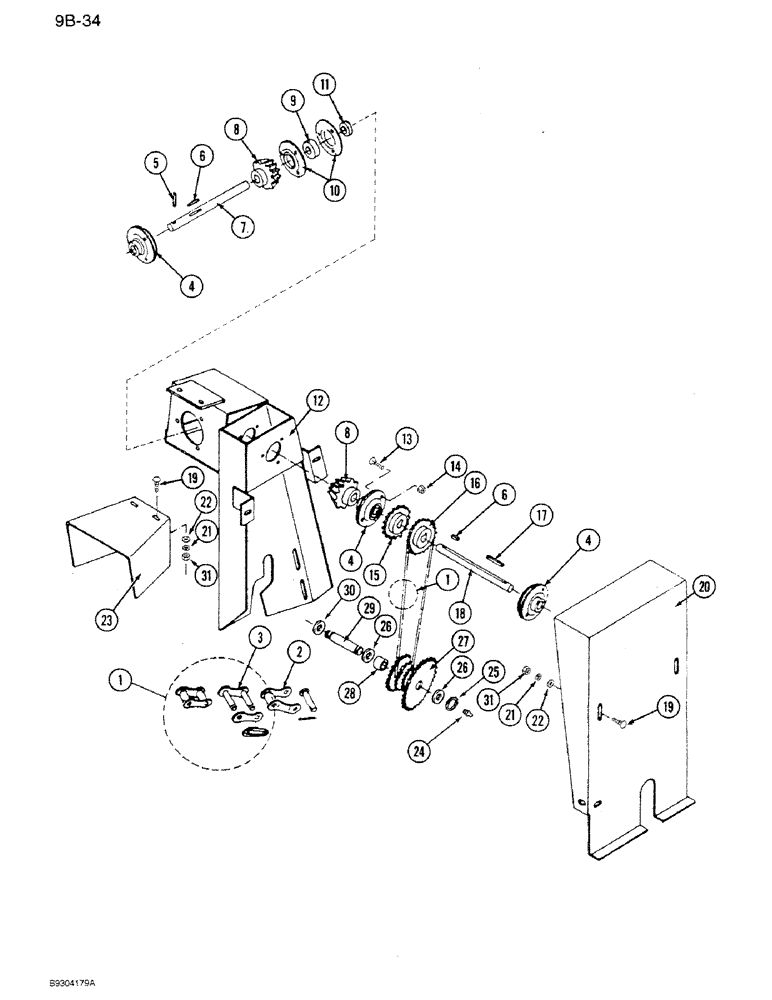

Запчасти Case IH 1250 (9B-34) - AUGER FEEDER TOP DRIVE, MECHANICAL AUGER ONLY, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

REF

INSTRUCTION

CHAIN - use 39 links from roll 569089R91

1шт.

2

456929R91

CHAIN LINK

LINK - chain, offset connecting (not shown)

1шт.

3

587372R91

CONNECTING LINK

LINK - chain, connecting (not shown)

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING, LOCK COLLAR AND FLANGE ASSEMBLY (Order Ref 9, 10 and 11)

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - roll, 5/16 x 1-5/8 inch (If equipped)

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

475690R1

SHAFT

- drive

1шт.

8

476670R1

GEAR

- bevel, 14 tooth

2шт.

9

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

4шт.

10

462360R1

FLANGED BEARING

- bearing mounting

8шт.

11

455102R21

COLLAR

- locking, bearing, with setscrew

4шт.

12

1281215C1

BRACKET

TOWER

1шт.

13

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

12шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

15

475679R1

SPROCKET ASSY.

SPROCKET - 17 tooth

1шт.

16

475680R1

SPROCKET ASSY.

SPROCKET - 22 tooth

1шт.

17

479370R1

KEY,1/4" Sq x 2", Par

- parallel, 1/4 x 2 inch

1шт.

18

475678R1

SHAFT

1шт.

19

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

20

1281213C1

SHIELD

- tower

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

23

1281214C1

SHIELD

- PTO

1шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

25

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - flat, 1 x 1-1/2 x 9/64 inch (If equipped)

2шт.

27

475688R91

SPROCKET ASSY.

SPROCKET - cluster

1шт.

28

1281282C1

BUSHING

- 1 x 1-1/2 x 1-1/4 inch

2шт.

29

475687R1

SHAFT

- threaded, left hand

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - flat, 1 x 1-1/2 x 7/64 inch

1шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk, 10'roll

1шт.
