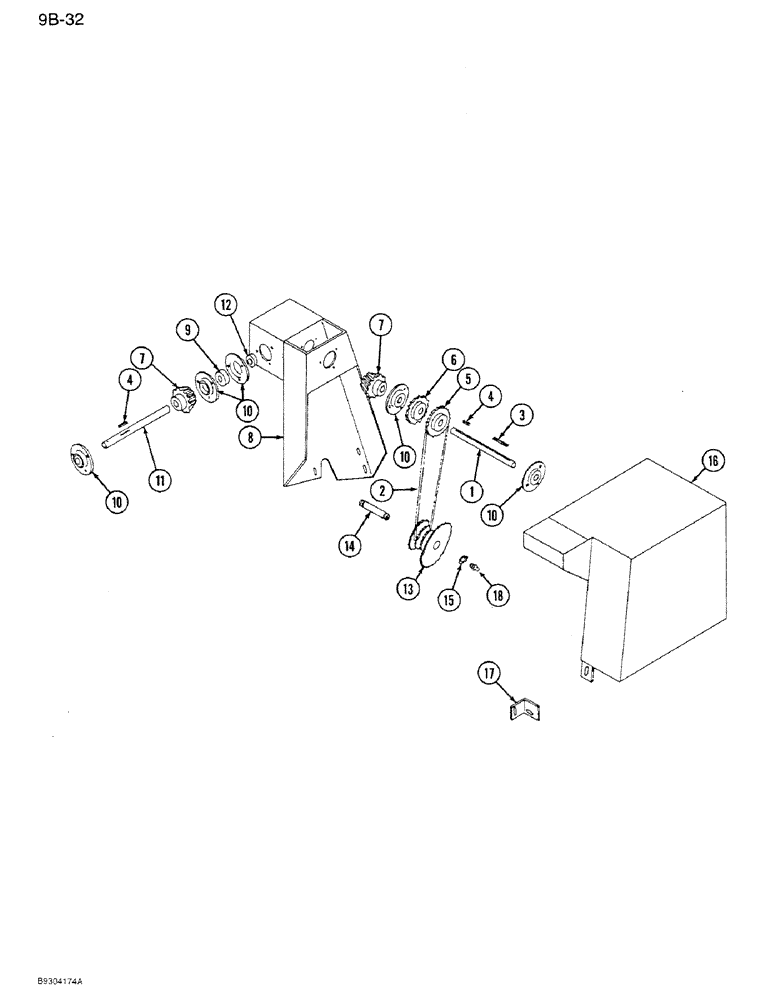

Запчасти Case IH 1250 (9B-32) - AUGER FEEDER TOP DRIVE, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

475678R1

SHAFT

- 1-1/4 x 6 inch

1шт.

2

REF

INSTRUCTION

CHAIN - auger feed (Use 39 links from roll 569089R91, 1 connecting link 587372R91 and 1 offset link 456929R91)

1шт.

2

587372R91

CONNECTING LINK

LINK - chain, connecting (not shown)

1шт.

2

456929R91

CHAIN LINK

LINK - chain, offset (not shown)

1шт.

3

479370R1

KEY,1/4" Sq x 2", Par

- square, 1/4 x 2 inch

1шт.

4

Q53

KEY,1/4" Sq x 1", Par

2шт.

5

475680R1

SPROCKET ASSY.

SPROCKET - 22 tooth

1шт.

6

475679R1

SPROCKET ASSY.

SPROCKET - 17 tooth

1шт.

7

476670R1

GEAR

- bevel, 14 tooth

2шт.

8

542647R1

DRIVE

UNIT - top

1шт.

9

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

4шт.

10

462360R1

FLANGED BEARING

- bearing mounting

8шт.

11

475690R1

SHAFT

- drive

1шт.

12

455102R21

COLLAR

- bearing locking, with setscrew

3шт.

13

475688R91

SPROCKET ASSY.

SPROCKET - cluster

1шт.

14

475687R1

SHAFT

1шт.

15

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

16

75998C1

SHIELD

- top drag drive

1шт.

17

75999C1

ANGLE

BRACKET - mounting shield

1шт.

17

145842C1

ANGLE

- mounting shield (Used with corn sheller)

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk, 10' roll

1шт.
