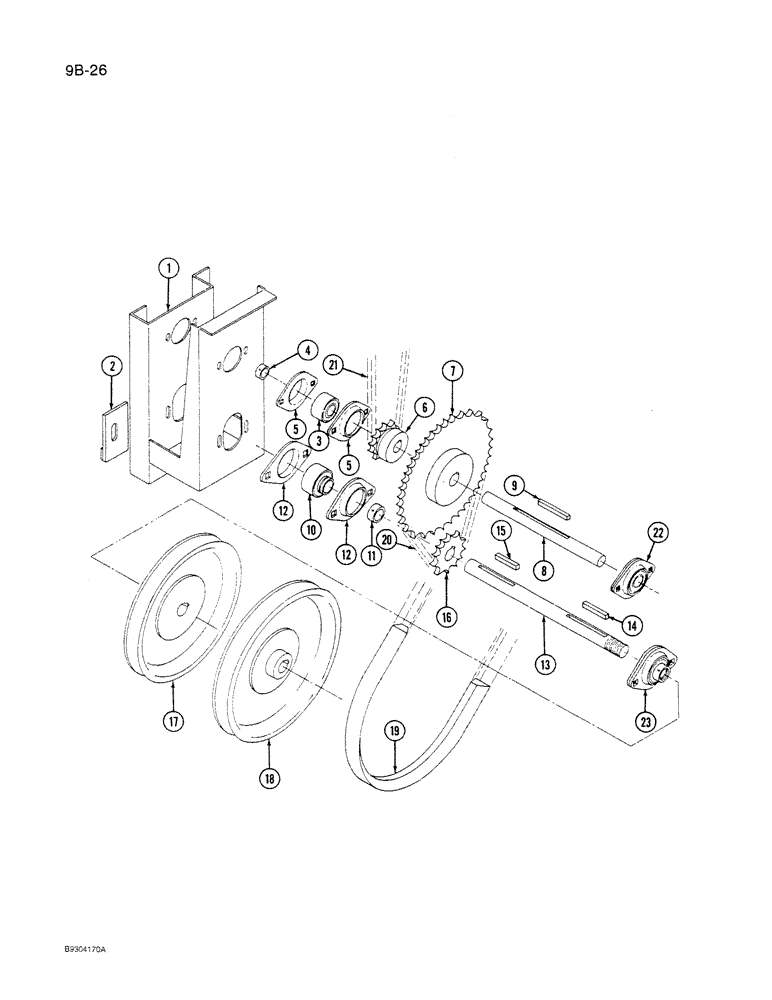

Запчасти Case IH 1250 (9B-26) - SIDE DRIVE, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

475692R91

BRACKET

DRIVE UNIT

1шт.

2

475691R1

SHIM

- drive unit

1шт.

3

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSEMBLY - shaft

2шт.

4

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

ASSEMBLY - lock, bearing

2шт.

5

469924R1

FLANGE

- ball bearing

4шт.

6

75988C1

SPROCKET ASSY.

SPROCKET - 18 tooth

1шт.

7

476175R1

SPROCKET ASSY.

SPROCKET - 54 tooth

1шт.

8

475656R1

SHAFT

1шт.

9

21325R1

KEY,3/16" Sq x 2 1/4", Par

- square parallel, 3/16 x 2-1/4 inch

1шт.

10

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

2шт.

11

455102R21

COLLAR

- lock, with set screw

2шт.

12

50591

FLANGE,52mm

- bearing mounting (Replaces 612031R1)

4шт.

13

475697R1

SHAFT

1шт.

14

126

KEY,1/4" Sq x 2 1/2", Par

- square parallel, 1/4 x 2 inch

1шт.

15

Q53

KEY,1/4" Sq x 1", Par

2шт.

16

475699R1

SPROCKET ASSY.

SPROCKET - 13 tooth

1шт.

17

475696R1

PULLEY

- 9 inch

1шт.

18

475695R1

PULLEY

- 10 inch

1шт.

19

475694R1

V-BELT,46.00" L

46.00" L

1шт.

20

REF

INSTRUCTION

CHAIN - roll feed lower (Use 61 links from roll 1790D and 1 connecting link 1301D)

1шт.

20

1301D

CHAIN LINK

LINK - chain, connecting (not shown)

1шт.

21

REF

INSTRUCTION

CHAIN - drive unit (Use 53 links from roll 1790D and 1 offset link 1303D)

1шт.

21

1303D

LINK

- chain, offset (not shown)

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING AND FLANGE ASSEMBLY (Order Ref 3, 4 and 5)

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING AND FLANGE ASSEMBLY (Order Ref 10, 11 and 12)

1шт.

1790D

CHAIN (AG)

CHAIN - bulk 10' roll

1шт.
