Запчасти Case IH 1250 (9B-22) - GEARBOX, 1250 MACHINES (09) - CHASSIS ATTACHMENTS

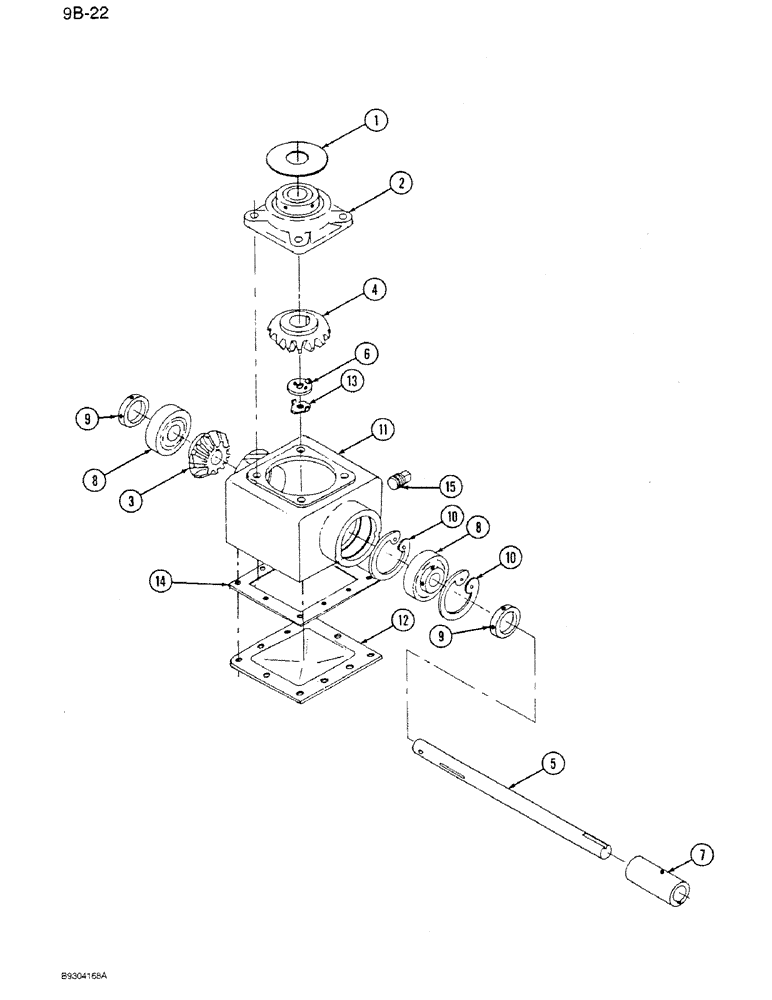

Схема запчастей Case IH 1250 - (9B-22) - GEARBOX, 1250 MACHINES (09) - CHASSIS ATTACHMENTS

Артикул

Название

Примечание

Количество

1

475775R1

WASHER

PLATE - bearing protector

1шт.

2

487921R91

FLANGED BEARING

- flanged cartridge

1шт.

3

487866R1

GEAR

- bevel, 17 tooth

1шт.

4

487865R1

GEAR

- bevel, 17 tooth

1шт.

5

57308C1

SHAFT

- gear box

1шт.

NSS

NOT SOLD SEPARAT

KEY - square parallel, 5/16 x 1-1/4 inch

1шт.

NSS

NOT SOLD SEPARAT

KEY - square parallel, 5/16 x 2-1/2 inch

1шт.

6

487867R1

LOCK WASHER

WASHER - locking

1шт.

7

542652R1

COUPLING

COUPLER - shaft

1шт.

NSS

NOT SOLD SEPARAT

PIN - roll, 1/4 x 2 inch

1шт.

NSS

NOT SOLD SEPARAT

KEY - square parallel, 5/16 x 2-1/2 inch

1шт.

8

487927R91

BALL BEARING,31.75mm ID x 72mm OD x 17mm W

- ball

2шт.

9

487928R91

BEARING SET,2.8348" OD x 1.76"

COLLAR - bearing locking, with setscrew

2шт.

10

488490R1

RING

- retaining

3шт.

11

NSS

NOT SOLD SEPARAT

BOX - gear (Machines built prior to PIN 7001)

1шт.

11

1281268C1

HOUSING

BOX - gear (Includes Ref 8, 12 and 14) (Machines built PIN 7001 and after)

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

- hex, 1/2 x 2 inch

4шт.

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

4шт.

11

1251003C1

BOX

- gear (Casting Only)

1шт.

12

1251005C1

COVER

- gear box

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

13

475781R1

WASHER

LOCK - bolt

1шт.

14

1251004C1

GASKET

- gear box

1шт.

15

20969R1

PLUG

- square head pipe, 3/4-14 inch

1шт.

Выбрано товаров: 25
