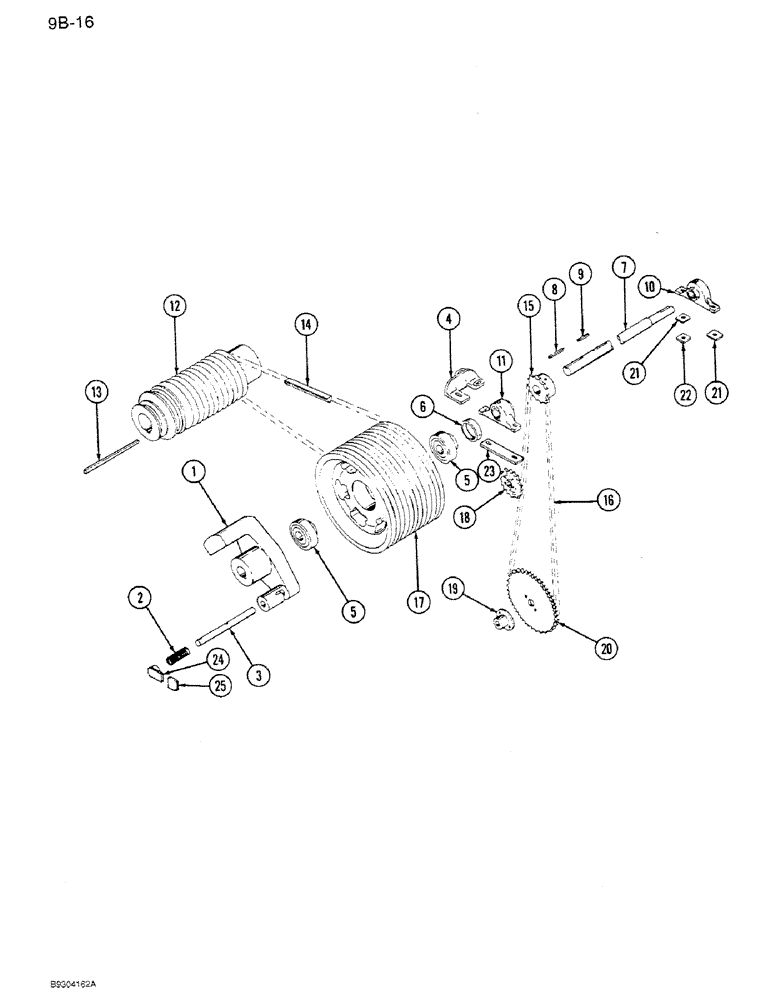

Запчасти Case IH 1250 (9B-16) - MAIN DRIVE, 1250 MACHINES (09) - CHASSIS ATTACHMENTS

1

481973R91

CLUTCH

ASSEMBLY - drive

1шт.

2

475721R1

SPRING

- compression

1шт.

3

475722R1

PIN

- locking (Machines built prior to PIN CCD2052)

1шт.

3

1986350C1

PIN

- locking (Machines built PIN CCD2052 and after)

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

4

475726R1

BRACKET

- bearing holder

1шт.

5

485934R91

BEARING

- belt drive shaft, ball

2шт.

6

485935R91

COLLAR

- bearing locking, with setscrew

2шт.

7

481077R1

SHAFT

- belt drive

1шт.

8

Q1432

KEY,3/8" Sq x 5", Par

- square parallel, 3/8 x 5 inch

1шт.

9

454353R1

KEY,3/8" Sq x 1", Par

- square parallel, 3/8 x 1 inch

1шт.

10

475727R91

BEARING ASSY

BEARING - ball, belt drive shaft pillow block, rear

1шт.

11

485937R91

BEARING CARRIER,41.15mm ID

- ball, belt drive shaft pillow block, front

1шт.

12

64667C1

PULLEY

- 14 groove

1шт.

13

64668C1

KEY

- tapered

1шт.

14

489608R91

SET OF BELTS,0.88" W x 80.00" L

(6), V-Belt, 540 RPM 0.88" W x 80.00" L

1шт.

14

489609R91

SET OF BELTS,0.88" W x 60.00" L

(6), V-Belt, 1000 RPM 0.88" W x 60.00" L

1шт.

15

485946R1

SPROCKET ASSY.

SPROCKET - 15 tooth, 1000 rpm (Machines built prior to PIN 7001)

1шт.

15

57964C1

SPROCKET ASSY.

SPROCKET - 16 tooth, 540 rpm

1шт.

15

1281163C1

SPROCKET ASSY.

SPROCKET - 17 tooth, 1000 rpm, use with 488521R2 (Machines built prior to PIN 7001)

1шт.

15

1995619C1

SPROCKET ASSY.

SPROCKET - rework, 1000 rpm, use with 79757C1 (Machines built PIN 7001 and after)

1шт.

16

NSS

NOT SOLD SEPARAT

CHAIN - drive, 540 rpm (Use 69 links from 611362R91 and 1 connecting link 574532R91)

1шт.

16

NSS

NOT SOLD SEPARAT

CHAIN - drive, 1000 rpm (Use 87 links from 179D and 2 offset links 1315D) (Machines built prior to PIN 7001)

1шт.

16

NSS

NOT SOLD SEPARAT

CHAIN - drive, 1000 rpm (Use 71 links from 1793D and 1 connecting link 1786D) (Machines built PIN 7001 and after)

1шт.

17

481975R91

PULLEY

- drive, with bearing, 540 rpm

1шт.

17

485947R1

PULLEY

- drive, with bearing, 1000 rpm

1шт.

18

571441R91

SPROCKET ASSY.,15T

SPROCKET - with bearing, idler, 15 tooth, 540 rpm

1шт.

18

488699R1

SPROCKET ASSY.

SPROCKET - with bearing, idler, 17 tooth, 1000 rpm

1шт.

19

487848R1

HUB

- shear sprocket

1шт.

20

57960C1

SPROCKET ASSY.

SPROCKET - shear, 28 tooth, 540 rpm (Machines built prior to PIN 7315)

1шт.

20

488518R2

SPROCKET ASSY.

SPROCKET - shear, 25 tooth, 540 rpm (Machines built PIN 7315 and after)

1шт.

20

488521R2

SPROCKET ASSY.

SPROCKET - shear, 48 tooth, 1000 rpm (If equipped)

1шт.

20

79757C1

SPROCKET ASSY.

SPROCKET - shear, 36 tooth, 1000 rpm (If equipped)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

21

543043R1

SHIM

- 1/4 in

2шт.

22

543044R1

SHIM

- 3/8 in

1шт.

23

1281316C1

CHANNEL

BRACE - bearing (Replaces 543042R1)

1шт.

24

1281202C1

HANDLE

- clutch (If equipped)

1шт.

25

1281203C1

GRIP

- clutch handle (If equipped)

1шт.
