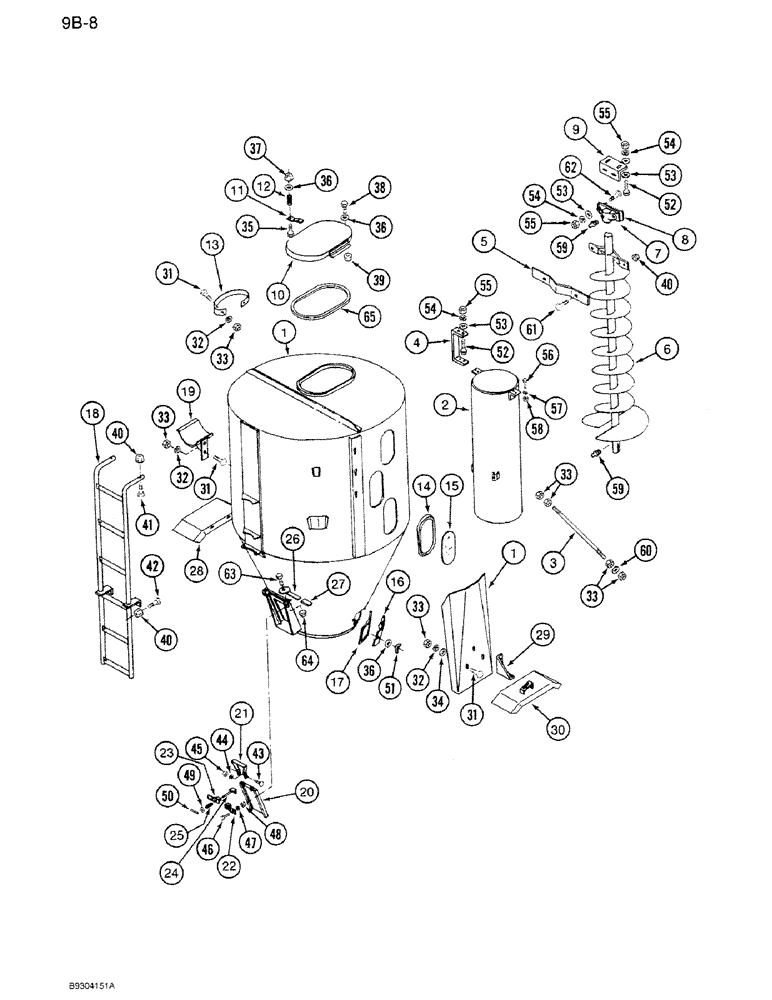

Запчасти Case IH 1250 (9B-08) - MIXER AUGER AND MIXER TANK, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
TANK ASSEMBLY - mixer
1шт.
2
75904C1
TUBE,13.25 - 13.56 mm OD, 60 mm Length
- mixer auger
1шт.
3
75905C1
ROD
- tube support
1шт.
4
485866R1
SUPPORT TUBE
SUPPORT - auger tube
2шт.
5
543072R1
SUPPORT
PADDLE - mixer auger
1шт.
6
542691R1
AUGER
- mixer
1шт.
7
542688R1
BEARING CARRIER
BEARING - brass
1шт.
8
79820C1
SHIM
2шт.
9
543073R1
HANGER
- bearing
1шт.
10
75906C1
COVER
- lid assembly
1шт.
11
542689R1
BRACKET
- lid lock
2шт.
12
475801R1
SPRING
- compression
2шт.
13
75908C1
SUPPORT
BRACKET - screen holder
1шт.
14
REF
INSTRUCTION
SEAL - rubber, window (Cut from bulk roll 64515C2, 32"long)
1шт.
15
476199R1
GLASS
- window
3шт.
16
543069R1
DOOR
- clean out
1шт.
17
1265798C1
SEALING STRIP
- clean out door
1шт.
18
488804R1
LADDER
1шт.
19
488465R2
SUPPORT
- unloading auger
1шт.
20
1281240C1
DOOR
- unloading slide
1шт.
21
1281208C1
HANDLE
- unloading slide door
1шт.
22
1281321C1
SUPPORT
- holder
2шт.
24
475820R1
HOLDER
- sliding door
2шт.
25
475818R1
SPRING
- door holder
2шт.
26
1281207C1
BAR
- eccentric lock
1шт.
27
1281151C1
GRIP
- eccentric lock bar
1шт.
28
1281150C1
FENDER
- left
1шт.
75911C1
TAPE
- anti-slip
2шт.
29
75912C1
SUPPORT
- right fender
1шт.
30
1281133C1
FENDER
- right
1шт.
64515C2
SEAL, GLASS
- bulk roll
1шт.
31
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT - round head square neck, 1/2 NC x 1 inch
7шт.
32
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
7шт.
33
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
11шт.
34
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64") 1/2", SAE
3шт.
36
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
5шт.
37
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
2шт.
38
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
1шт.
39
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
1шт.
40
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex lock, 3/8 inch NC
6шт.
41
434-624
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5
BOLT - round head square neck, 3/8 NC x 1-1/2 inch
2шт.
42
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - round head square neck, 3/8 NC x 1 inch
2шт.
43
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd
2шт.
45
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
2шт.
46
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
2шт.
47
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
48
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
2шт.
49
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
2шт.
50
432-1012
COTTER PIN,5/32" x 3/4"
5/32" x 3/4"
1шт.
51
129-419
WING NUT,5/16"-18
NUT - 5/16 inch, wing
2шт.
52
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
6шт.
53
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
8шт.
54
492-11038
LOCK WASHER,3/8"
8шт.
55
425-106
NUT,3/8"-16, Cl 5
8шт.
56
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
- hex, 7/16 NC x 1-1/4 inch
2шт.
57
493-11046
LOCK WASHER
- lock, 7/16 inch
2шт.
58
425-107
NUT,7/16"-14, G5
- hex, 7/16 inch NC
2шт.
59
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
2шт.
60
NSS
NOT SOLD SEPARAT
WASHER - flat
1шт.
61
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
62
434-624
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5
BOLT - round head square neck, 3/8 NC x 1-1/2 inch
2шт.
63
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
1шт.
64
26110R1
LOCK NUT,1/4"-20, GC
NUT - hex lock, 1/4 inch NC (Grade 8)
1шт.
65
79784C1
SEAL
- tank lid
1шт.
Выбрано товаров: 65
