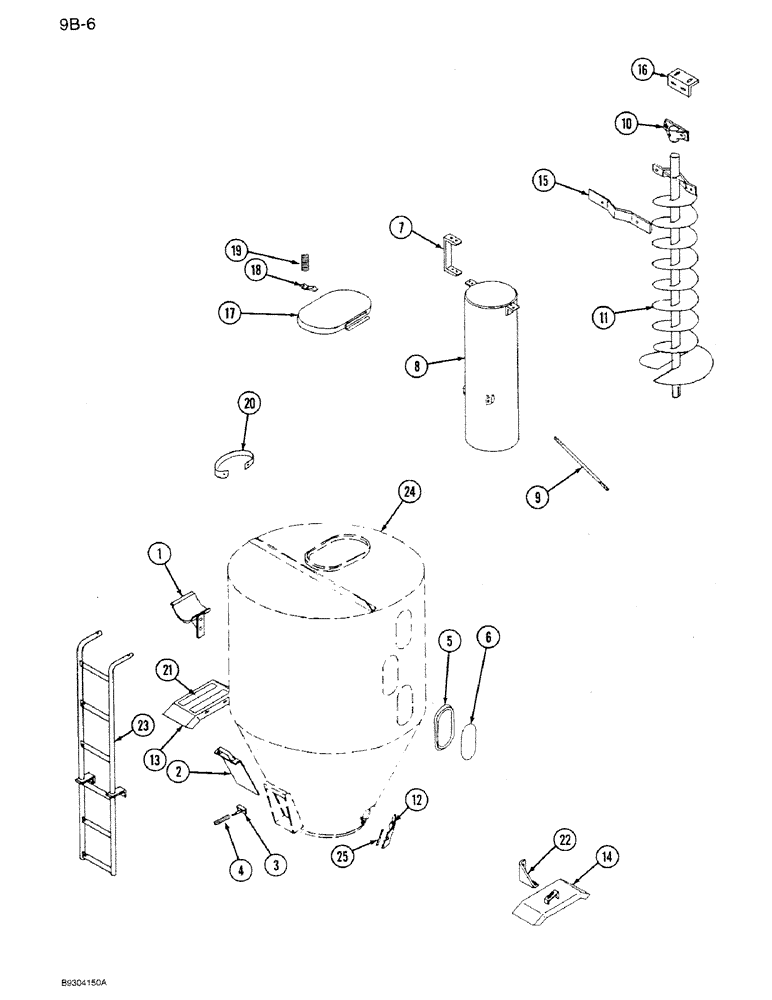

Запчасти Case IH 1250 (9B-06) - MIXER AUGER AND MIXER TANK, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

488465R2

SUPPORT

- unloading auger

1шт.

2

475817R91

DOOR

- unloading, sliding

1шт.

3

475820R1

HOLDER

- sliding door

3шт.

4

475818R1

SPRING

- door holder

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - rubber, window (Cut roll 64515C2 to 32 inch length)

1шт.

6

476199R1

GLASS

- window

3шт.

7

485866R1

SUPPORT TUBE

SUPPORT - auger tube

2шт.

8

75904C1

TUBE,13.25 - 13.56 mm OD, 60 mm Length

- mixer auger

1шт.

9

75905C1

ROD

- tube support

3шт.

10

542688R1

BEARING CARRIER

BEARING - brass

1шт.

11

542691R1

AUGER

- mixer

1шт.

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

12

543069R1

DOOR

- clean out

1шт.

13

75909C2

FENDER

- left

1шт.

14

75910C1

FENDER

- right (If equipped)

1шт.

14

77021C2

FENDER

- right

1шт.

15

543072R1

SUPPORT

PADDLE - mixer auger

1шт.

16

543073R1

HANGER

- bearing

1шт.

17

75906C1

COVER

- lid assembly

1шт.

18

542689R1

BRACKET

- lid lock

2шт.

19

475801R1

SPRING

- compression

2шт.

20

75908C1

SUPPORT

- rack

1шт.

21

75911C1

TAPE

- anti-slip

2шт.

22

75912C1

SUPPORT

- fender, right

1шт.

23

488804R1

LADDER

1шт.

24

NSS

NOT SOLD SEPARAT

TANK - mixer

1шт.

25

1265798C1

SEALING STRIP

- seal

2шт.
