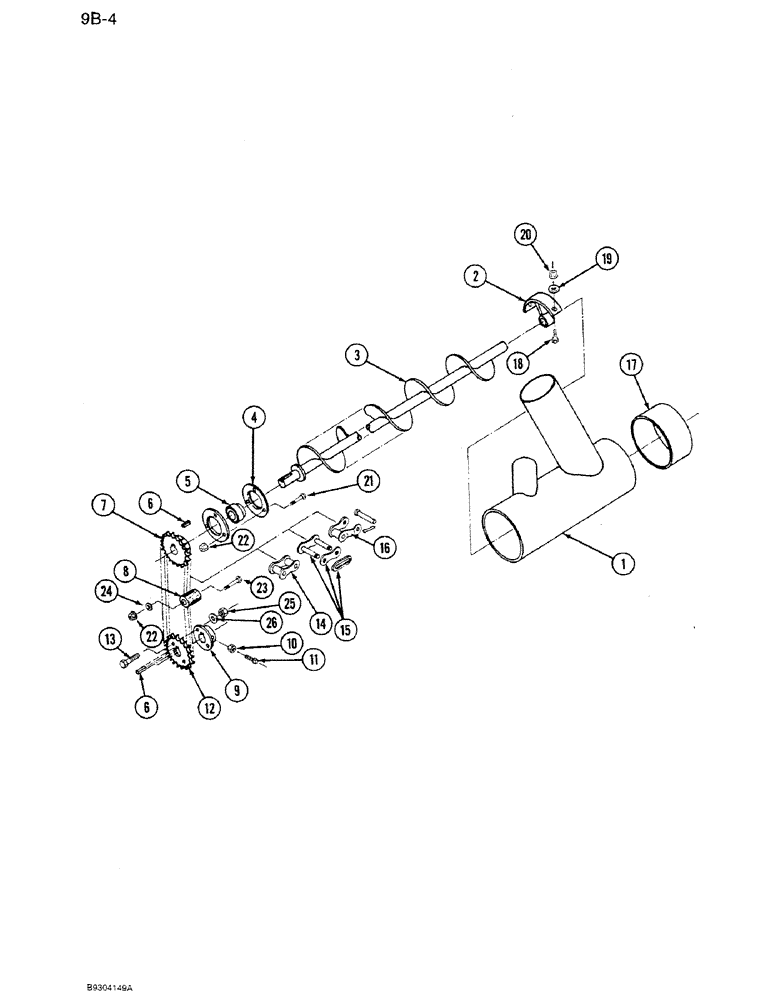

Запчасти Case IH 1250 (9B-04) - MILL TO MIXER AUGER, MIXER INTAKE, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

1281128C1

TUBE,7.12, 5.5, 4" OD

- mill to mixer intake

1шт.

2

487858R1

SUPPORT

BEARING - auger support, nylon

1шт.

3

542655R1

AUGER

- intake

1шт.

4

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing

2шт.

5

487919R92

BALL BEARING

- intake auger, ball

1шт.

5

487920R91

COLLAR

- bearing locking, with setscrew

1шт.

6

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

7

75924C1

SPROCKET ASSY.

SPROCKET - 18 tooth

1шт.

8

56625C1

BLOCK

- chain tightener

1шт.

9

487848R1

HUB

- sprocket

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - jam, 5/16 inch

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - square head, set, 5/16 x 3/4 inch

1шт.

12

541345R2

SPROCKET ASSY.

SPROCKET - 28 tooth

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

14

NSS

NOT SOLD SEPARAT

CHAIN - mixer intake auger drive (Use 31 links from roll 569088R1)

1шт.

15

457113R91

CHAIN LINK

LINK - chain connecting

1шт.

16

457114R1

LINK - chain offset

1шт.

17

1985981C1

BAND

- rubber, 7 inch diameter (Replaces 1281148C1)

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

2шт.

19

28588R1

WASHER

- flat, 5/16 inch

2шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8 inch

4шт.

23

433-629

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

25

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch

2шт.

26

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

2шт.

569088R1

CHAIN (AG)

CHAIN - bulk, 10'roll

1шт.
