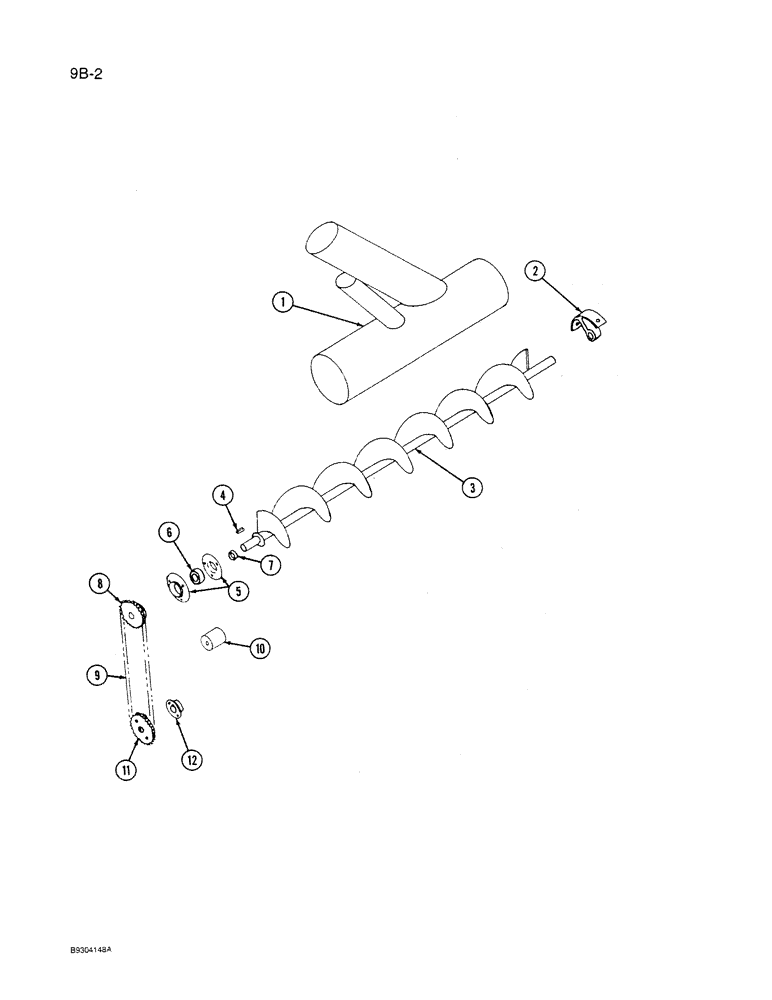

Запчасти Case IH 1250 (9B-02) - MILL TO MIXER AUGER, MIXER INTAKE, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

75944C1

TUBE

- mill to mixer intake

1шт.

2

487858R1

SUPPORT

BEARING - auger suport, nylon

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

3

542655R1

AUGER

- intake

1шт.

4

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing mounting

2шт.

6

487919R92

BALL BEARING

- intake auger, ball

1шт.

7

487920R91

COLLAR

- bearing locking, with setscrew

1шт.

8

488620R1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

9

NSS

NOT SOLD SEPARAT

CHAIN - auger drive (Use 33 links from roll 569088R1 and 1 connecting link 457113R91)

1шт.

9

457113R91

CHAIN LINK

LINK - chain, connecting

1шт.

10

56625C1

BLOCK

- chain tightener

1шт.

11

541345R2

SPROCKET ASSY.

SPROCKET - 28 tooth

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

12

487848R1

HUB

- sprocket

1шт.

569088R1

CHAIN (AG)

CHAIN - bulk, 10' roll

1шт.
