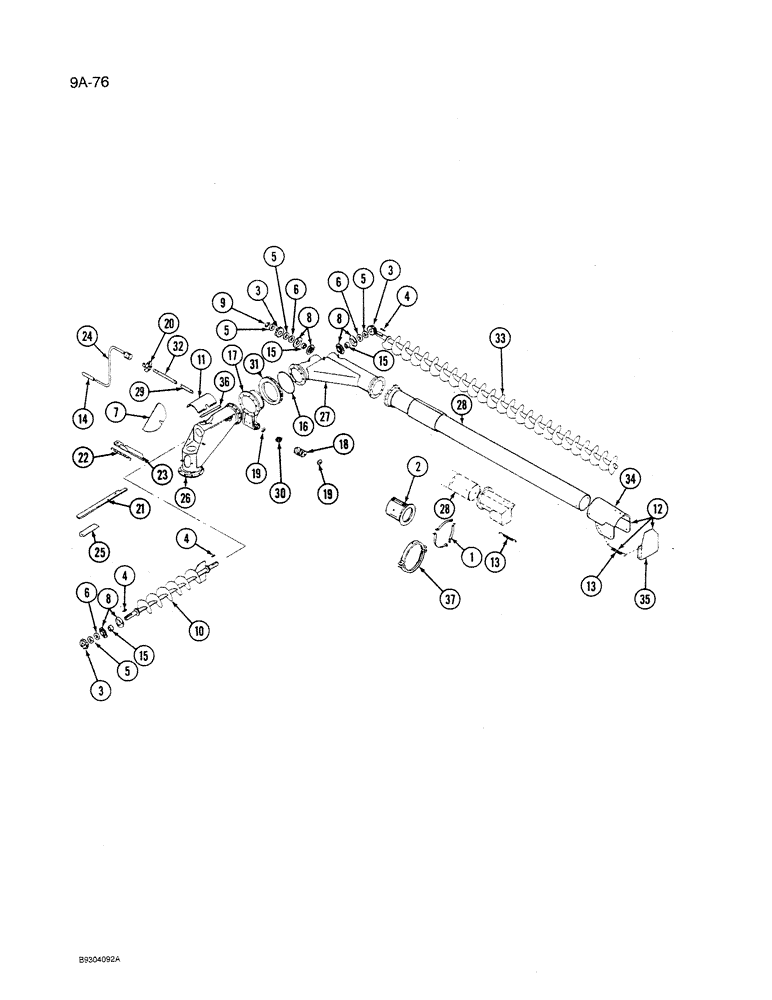

Запчасти Case IH 1250 (9A-076) - DISCHARGE AUGER, HORIZONTAL AUGERS, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

57973C1

CLAMP

- swivel (If equipped)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

28588R1

WASHER

- flat, 11/32 x 27/32 x 1/16 inch

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 15/16 inch NC

3шт.

2

75925C1

CLAMP

- swivel (If equipped)

1шт.

3

487873R1

GEAR

- bevel, 14 tooth

3шт.

4

619720R1

KEY,5/16" Sq x 1 1/8", Par

- parallel, 5/16 x 1-1/8 inch

4шт.

5

487922R1

WASHER

- flat, 1-1/8 x 1-5/8 inch

3шт.

6

487923R1

WASHER

- flat, 1-1/8 x 1-5/8 inch

3шт.

7

57990C1

SHIELD

- bevel gear

2шт.

8

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing mounting

8шт.

9

454319R1

RING

- retaining

1шт.

10

57995C1

AUGER

- cross

1шт.

11

475755R1

PLATE

DOOR - clean out

4шт.

12

145809C91

HOOD

ASSEMBLY - unloading auger

1шт.

13

64669C1

SPRING

- extension

1шт.

14

487876R1

GRIP

- crank

1шт.

15

487919R91

BEARING

- ball

2шт.

16

64708C1

RING

- retaining

2шт.

17

75983C1

HOLDER

- ring and worm (Machines built prior to PIN 5891)

1шт.

17

1281125C1

HOLDER

- ring and worm (Machines built PIN 5891 and after)

1шт.

18

64710C1

GEAR

- worm

1шт.

19

588825R91

BALL BEARING,0.625" ID x 1.375" OD x 0.4375"

- ball (Machines built prior to PIN 3044)

1шт.

19

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

BEARING - ball (Machines built PIN 3044 and after)

2шт.

20

75986C1

HUB

- shaft (Machines built prior to PIN 3044)

1шт.

20

145841C1

WHEEL

- with sleeve (Machine built PIN 3044 and after)

1шт.

21

64509C1

BAR

- control lever

1шт.

22

64510C1

SPRING

1шт.

23

64511C1

BRACKET

- catch

1шт.

24

475753R1

CRANK

1шт.

25

77272C1

GRIP

- handle

1шт.

26

75921C1

ELBOW

- discharge

1шт.

27

75922C1

ELBOW

- discharge

1шт.

28

79844C1

TUBE,8" OD, 91" Length

- discharge (Replaces 75923C1)

1шт.

29

75982C1

BUSHING

- worm shaft

1шт.

30

60366C91

THRUST BEARING

- thrust

2шт.

31

75984C1

GEAR

- ring

1шт.

32

64706C1

PIN

SHAFT - worm

1шт.

33

57980C1

AUGER

1шт.

34

145810C1

HOOD

- discharge (If equipped)

1шт.

35

145811C1

DOOR

- hood (If equipped)

1шт.

36

1265797C1

SEALING STRIP

- seal

1шт.

37

1281212C1

CLAMP

- swivel, heavy duty (If equipped)

2шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

27701R1

WASHER

- flat, 7/16 x 1 x 5/64 inch

8шт.

425-106

NUT,3/8"-16, Cl 5

4шт.
