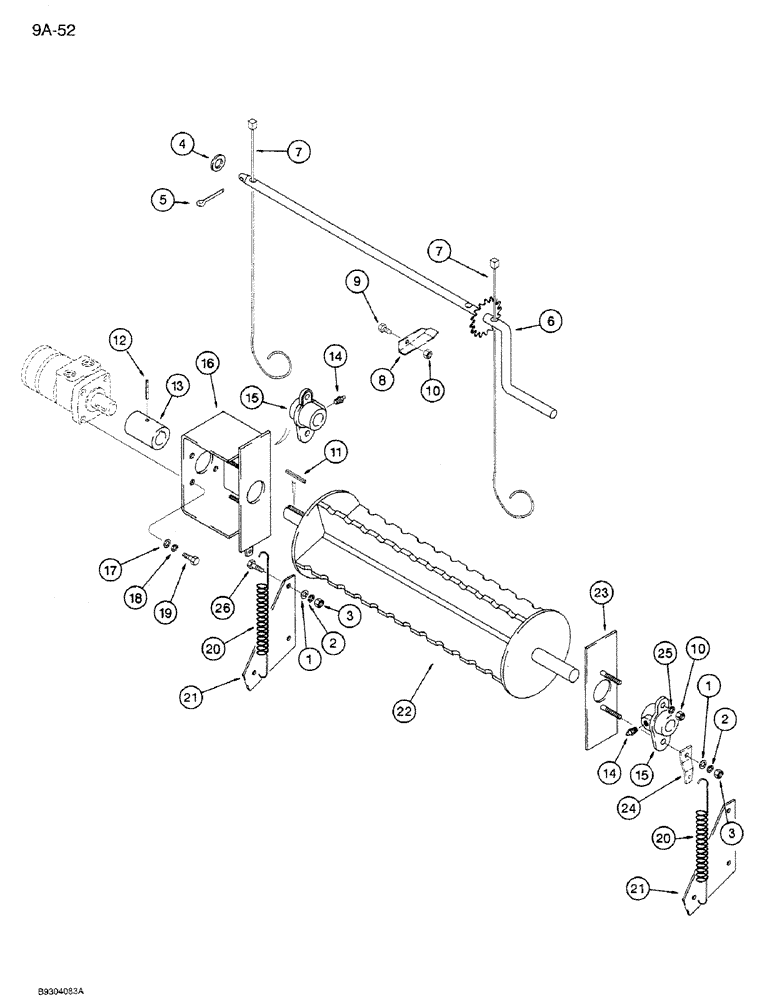

Запчасти Case IH 1250 (9A-052) - ROLL FEED HYDRAULIC, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

4

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

5

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

2шт.

6

485928R1

CRANKSHAFT

- with ratchet

1шт.

7

485871R1

CABLE

- roll feed adjusting

2шт.

8

485867R1

SUPPORT

BRACKET - crank lock

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

NSS

NOT SOLD SEPARAT

KEY - parallel, 1/4 x 1-1/4 inch

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - roll, 1/4 x 1-3/4 inch

1шт.

13

79791C1

COUPLING

- roll feed shaft

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

15

475845R1

BEARING,1.072" ID

- roll feed

2шт.

16

79790C1

SUPPORT

MOUNTING - hydraulic motor

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

20

485872R1

SPRING

- roll feed

2шт.

21

485869R1

SUPPORT

BRACKET - spring holder, lower

2шт.

22

475847R91

HEAD

ROLLER

1шт.

23

475846R91

PLATE

- roll feed, sliding

1шт.

24

485870R1

SUPPORT

BRACKET - spring holder, upper

1шт.

25

486799R1

LOCK WASHER

- special lock

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.
