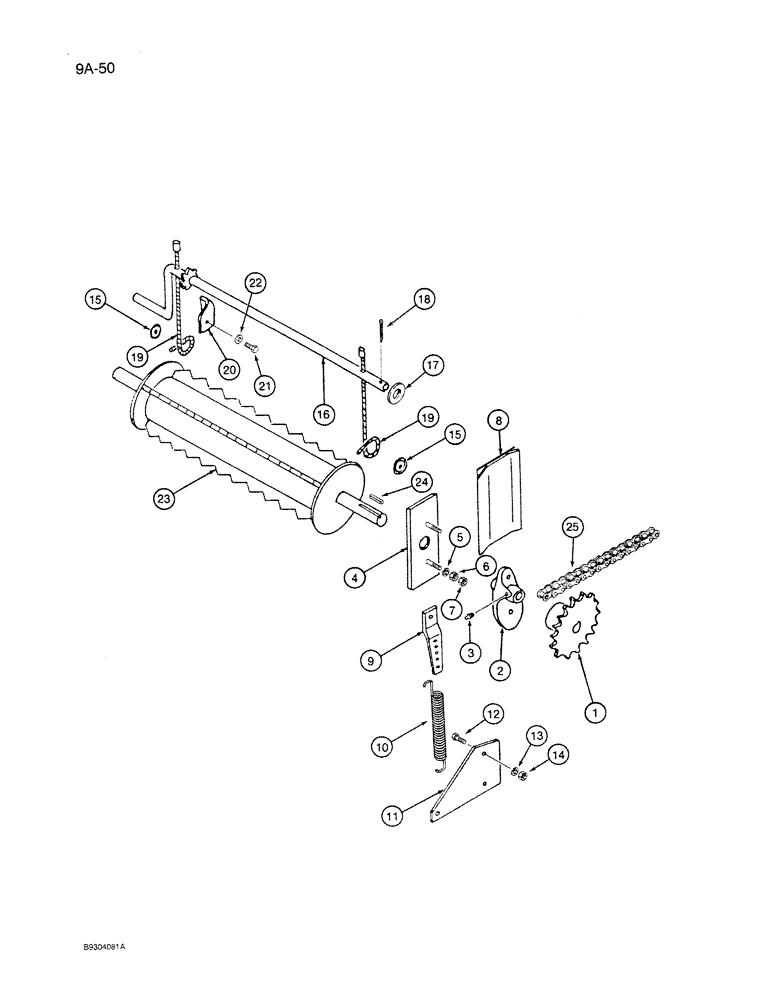

Запчасти Case IH 1250 (9A-050) - ROLL FEED MECHANICAL, 1250 MACHINES (09) - CHASSIS ATTACHMENTS

1

475844R1

SPROCKET ASSY.

SPROCKET - 28 tooth

1шт.

2

475845R1

BEARING,1.072" ID

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, short, 1/8 inch NF

2шт.

4

475846R91

PLATE

- sliding roll feed

2шт.

5

486799R1

LOCK WASHER

- lock, 5/16 inch

4шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

7

9413994

LOCK NUT,5/16"-18, GC

NUT- lock, 5/16 inch (Grade 8)

4шт.

8

475848R1

COVER

- hopper

2шт.

9

485870R1

SUPPORT

BRACKET - spring holder, top

2шт.

10

485872R1

SPRING

- roll feed

2шт.

11

485869R1

SUPPORT

BRACKET - spring holder, bottom

2шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

15

486799R1

LOCK WASHER

- special lock

2шт.

16

485928R1

CRANKSHAFT

- with ratchet

1шт.

17

495-1106

SCREW

WASHER - flat, 5/16 inch

4шт.

18

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

2шт.

19

485871R1

CABLE

- adjustment, roll feed

2шт.

20

485867R1

SUPPORT

BRACKET - crank lock

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

22

230-4105

LOCK NUT,5/16"-18, GA

NUT - hex, lock, 5/16 inch NC

1шт.

23

475847R91

HEAD

- roll

1шт.

23

76080C1

ROTOR

HEAD - roll (Use with bale table only)

1шт.

24

Q26

KEY,1/4" Sq x 1 1/4", Par

- square, parallel, 1/4 x 1-3/4 inch

1шт.

25

NSS

NOT SOLD SEPARAT

CHAIN - roll feed (Use 21 links from roll 569089R91, 2 offset links 456929R91 and 1 connecting link 587372R91)

1шт.

25

456929R91

CHAIN LINK

LINK - chain, offset

2шт.

25

587372R91

CONNECTING LINK

LINK - chain, connecting

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk, 10 foot roll

1шт.
