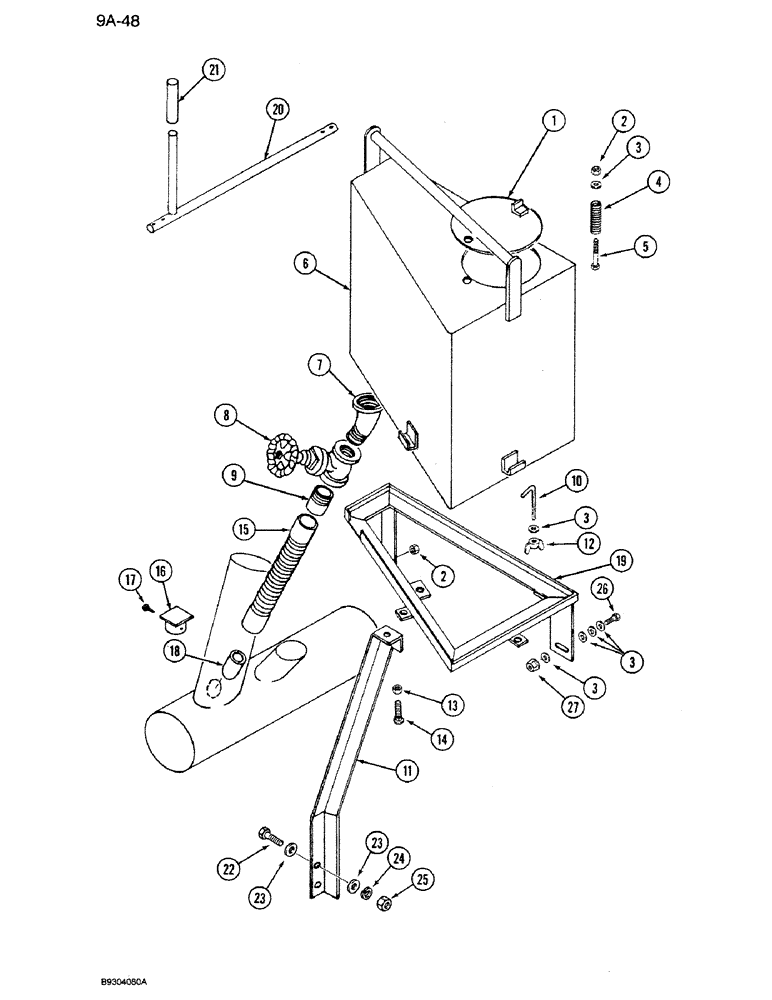

Запчасти Case IH 1250 (9A-048) - MOLASSES ATTACHMENT (09) - CHASSIS ATTACHMENTS

1

485956R91

COVER ASSEMBLY - tank

1шт.

2

9413994

LOCK NUT,5/16"-18, GC

NUT - lock, 5/16 inch (Grade 8)

2шт.

3

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

4

372649R1

SPRING

- cover

1шт.

5

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

6

76923C1

HOPPER

TANK

1шт.

7

76924C1

ELBOW

- 1-1/2 x 45 degree, street

1шт.

8

485962R1

VALVE

- 1-1/2 inch gate

1шт.

9

25659R1

NIPPLE - pipe, 1-1/2 x 2-1/2 inch

1шт.

10

76927C1

BOLT

- hook

2шт.

11

80143C1

ANGLE

- reinforcement

1шт.

12

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 NC inch

2шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 NC inch

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

15

485957R1

SHIM

HOSE - flexible

1шт.

16

76925C1

CAP

1шт.

17

261-1448

SELF-TAP SCREW,Hex Hd, #8 x 1/2"

SCREW - self-tapping, pan head Phillips, No. 8 NC x 1/2 inch

1шт.

18

76929C1

PIPE

- sleeve

1шт.

19

76926C1

SUPPORT

- tank frame

1шт.

20

76928C1

ROD

- clutch

1шт.

21

75994C1

GRIP

- handle

2шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 x 1-1/4 inch

2шт.

23

25710R1

WASHER

- flat, hardened, 17/32 x 1-1/16 x 9/64 inch

4шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.
