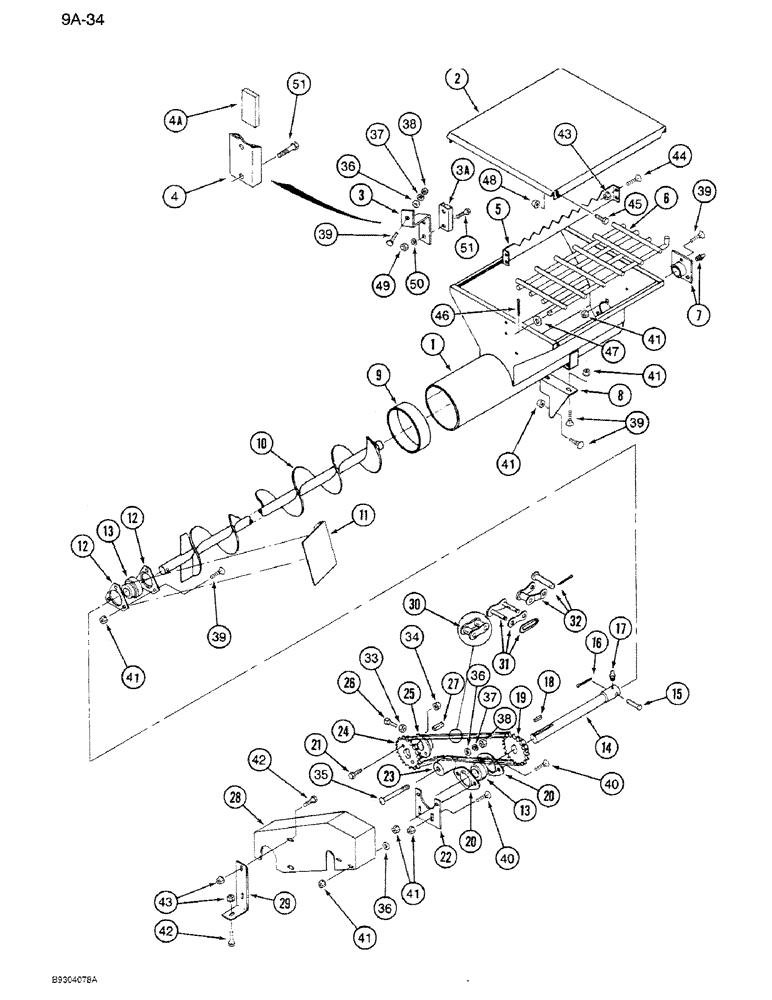

Запчасти Case IH 1250 (9A-034) - HOPPER, CONCENTRATE, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

1281140C1

HOPPER

1шт.

2

1281263C1

COVER

- hopper

1шт.

3

1281264C1

BRACKET

- magnet holder

1шт.

3a

1281209C1

MAGNET

ASSEMBLY - lid holder, no longer available order one 1281317C1 magnet and one 1281318C1 bracket

1шт.

4

1281318C1

BRACKET

- magnet holder

1шт.

4a

1281317C1

BAR

MAGNET - lid holder

1шт.

5

75934C1

BLADE

- sack

1шт.

6

75933C1

GRATE

- hopper

1шт.

7

145851C1

BUSHING

BEARING - plate

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

8

75938C1

BRACKET

- mounting

1шт.

9

1985981C1

BAND

- tube, 7 inch diameter (Replaces 1281148C1)

1шт.

10

1265769C1

AUGER

- intake, concentrate hopper

1шт.

11

1265771C1

SUPPORT

SHIELD

1шт.

12

581469R1

FLANGE,Bearing

- bearing retainer

2шт.

13

487919R92

BALL BEARING

- ball

2шт.

487920R91

COLLAR

- bearing locking, with setscrew (If equipped)

2шт.

14

1265770C1

SHAFT

ASSEMBLY - connector

1шт.

15

21006R1

CLEVIS PIN,3/8" x 2.406"

PIN - clevis, 3/8 x 2-13/32 inch

1шт.

16

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

18

619720R1

KEY,5/16" Sq x 1 1/8", Par

- square parallel, 5/16 x 1-1/8 inch

1шт.

19

487860R1

SPROCKET ASSY.

SPROCKET - drive, 28 tooth

1шт.

20

581469R1

FLANGE,Bearing

- bearing retainer

2шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

22

145843C1

BAR

PLATE - front bearing

1шт.

23

488228R1

BLOCK

- chain tightener

1шт.

24

541345R2

SPROCKET ASSY.

SPROCKET - drive, 28 tooth

1шт.

25

487848R1

HUB

- shear

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - square head, 5/16 x 3/4 inch

1шт.

27

586879R1

KEY

- square parallel, 5/16 x 2-1/2 inch

1шт.

28

75987C1

SHIELD

- chain drive

1шт.

29

76908C1

STRAP

SUPPORT - shield

1шт.

30

NSS

NOT SOLD SEPARAT

CHAIN - use 99 links from roll 1709D

1шт.

31

1301D

CHAIN LINK

LINK - chain, connecting

1шт.

32

1303D

LINK

- chain, offset

1шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

34

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC (Grade 8)

2шт.

35

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - flat

3шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

10шт.

40

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

41

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

11шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

3шт.

43

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7шт.

44

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - round head square neck, 5/16 NC x 5/8 inch

4шт.

45

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

46

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

47

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

48

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

49

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

51

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.
