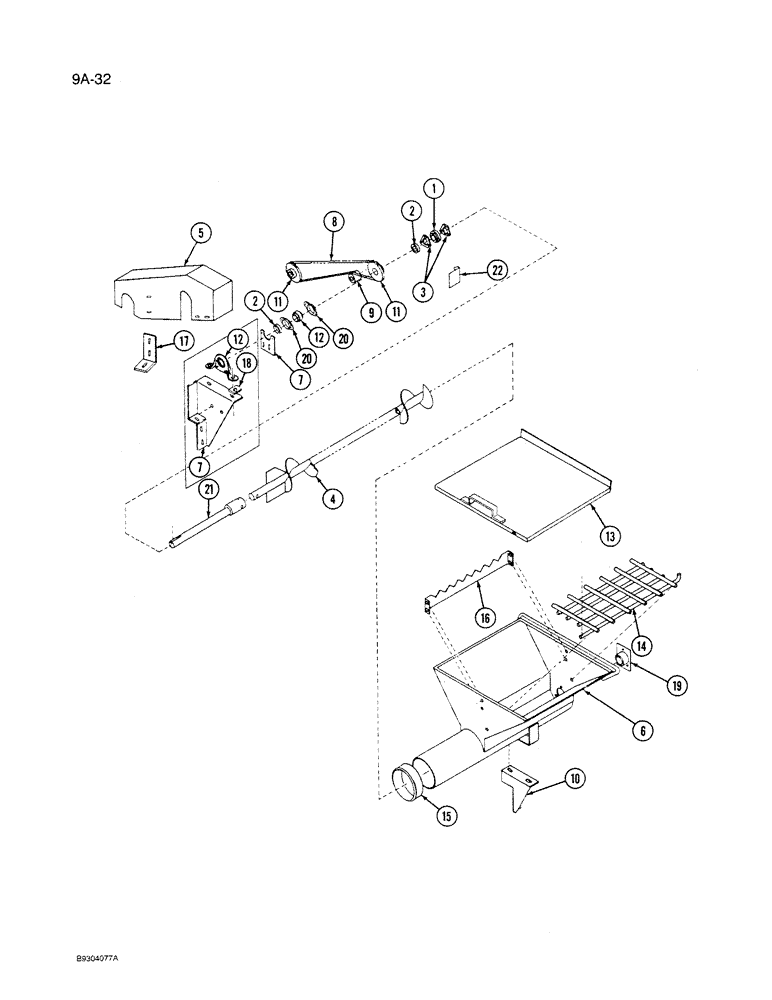

Запчасти Case IH 1250 (9A-032) - HOPPER, CONCENTRATE, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

487919R91

BEARING

- ball

2шт.

2

487920R91

COLLAR

- bearing locking, with setscrew

2шт.

3

662649R1

RETAINER

FLANGE - bearing mounting

2шт.

4

NSS

NOT SOLD SEPARAT

AUGER - intake (Machines built prior to PIN 5452) (Order kit 1265772C91)

1шт.

4

1265769C1

AUGER

- intake (Machines built PIN 5452 and after)

1шт.

5

75987C1

SHIELD

- chain drive

1шт.

6

75931C1

HOPPER

1шт.

7

75939C1

SUPPORT

- bearing support (If equipped)

1шт.

7

145843C1

BAR

- bearing front plate (If equipped)

1шт.

8

NSS

NOT SOLD SEPARAT

CHAIN - hopper auger drive (Use 99 links from roll 1790D, 1 connecting link 1301D and 1 offset link 1303D)

1шт.

9

488228R1

BLOCK

- chain tightener

1шт.

10

75938C1

BRACKET

- mounting

1шт.

11

487860R1

SPROCKET ASSY.

SPROCKET - driven, 28 tooth

2шт.

12

59128C91

BEARING ASSY,28.57mm ID

- pillow block (If equipped)

1шт.

12

487919R91

BEARING

- ball (If equipped)

1шт.

13

75932C1

COVER

- hopper

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

14

75933C1

GRATE

- hopper

1шт.

15

1985980C1

BAND

- rubber (Replaces 75937C1)

1шт.

16

75934C1

BLADE

- sack

1шт.

17

76908C1

STRAP

SUPPORT - shield

1шт.

18

75961C1

BAR

SPACER - 10 GA

1шт.

18

75962C1

BAR

SPACER - 16 GA

1шт.

18

145748C1

SPACER

- 18 GA

1шт.

19

145851C1

BUSHING

BEARING - plate (If equipped)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

20

581469R1

FLANGE,Bearing

- bearing retainer

2шт.

21

1265770C1

SHAFT

ASSEMBLY

1шт.

22

1265771C1

SUPPORT

SHIELD

1шт.

1265772C91

KIT

- auger service (Machines built prior to PIN 5452) (Includes instructions)

1шт.

4

1265769C1

AUGER

- intake

1шт.

19

145851C1

BUSHING

BEARING - plate

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

21

1265770C1

SHAFT

ASSEMBLY

1шт.

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

22900R1

HEADED PIN

PIN - headed, 3/8 x 1-1/4 inch

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

619720R1

KEY,5/16" Sq x 1 1/8", Par

- square parallel, 5/16 x 1-1/8 inch

1шт.

22

1265771C1

SUPPORT

SHIELD

1шт.
