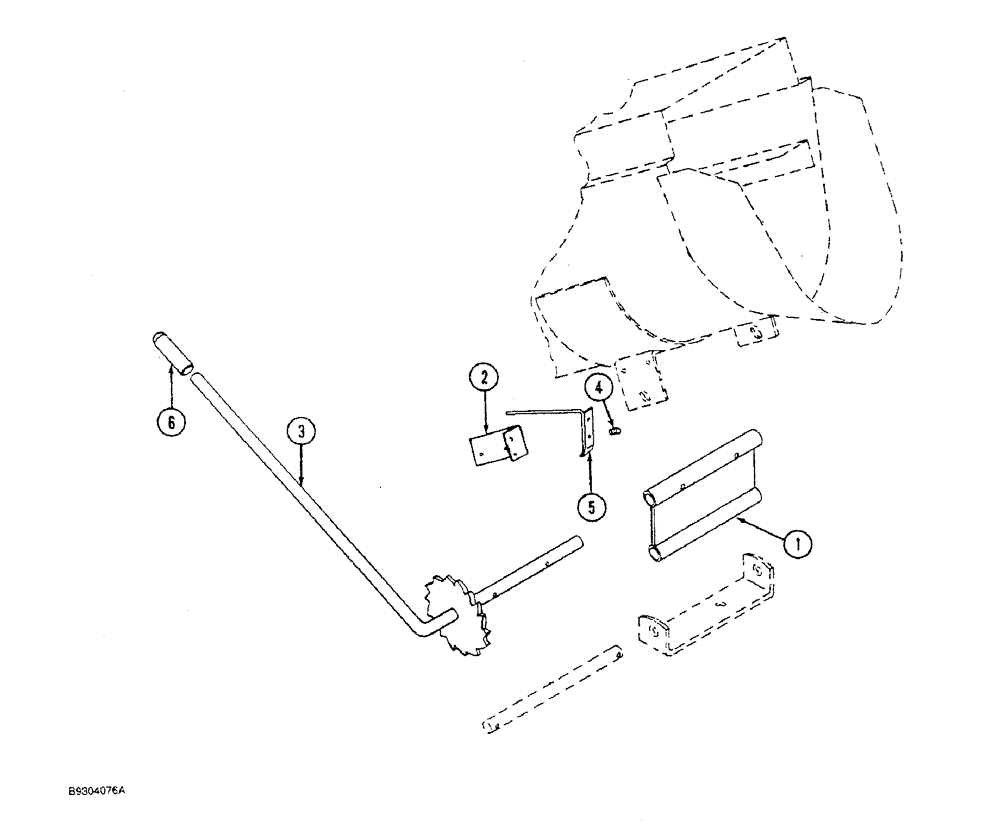

Запчасти Case IH 1250 (9A-030[1]) - AUGER DRAG POSITIONER KIT, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

145840C91

KIT

KIT - auger drag positioner, swing arm

1шт.

1

145835C1

BRACKET

BRACKET ASSEMBLY - extension, auger drag positioner kit

1шт.

2

145836C1

HOLDER

HOLDER - stop, auger drag positioner kit

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Auger drag positioner kit

2шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - hex, 5/16 NC x 1-1/4 inch, auger drag positioner kit

1шт.

492-11031

LOCK WASHER,5/16"

Auger drag positioner kit

3шт.

425-108

NUT,1/2" - 13, Gr 5

Auger drag positioner kit

3шт.

3

145838C1

LEVER

LEVER AND RATCHET ASSEMBLY, auger drag positioner kit

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

Auger drag positioner kit

2шт.

4

61080C1

SPRING

SPRING - compression, auger drag positioner kit

1шт.

5

145837C1

STOP

STOP ASSEMBLY, auger drag positioner kit

1шт.

440-12524

SCREW - machine, pan head, 1/4 NC x 1-1/2 inch, auger drag positioner kit

1шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

WASHER - flat, hardened, auger drag positioner kit

2шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC (Grade 8), auger drag positioner kit

1шт.

6

145839C1

HANDLE

GRIP, auger drag positioner kit

1шт.
