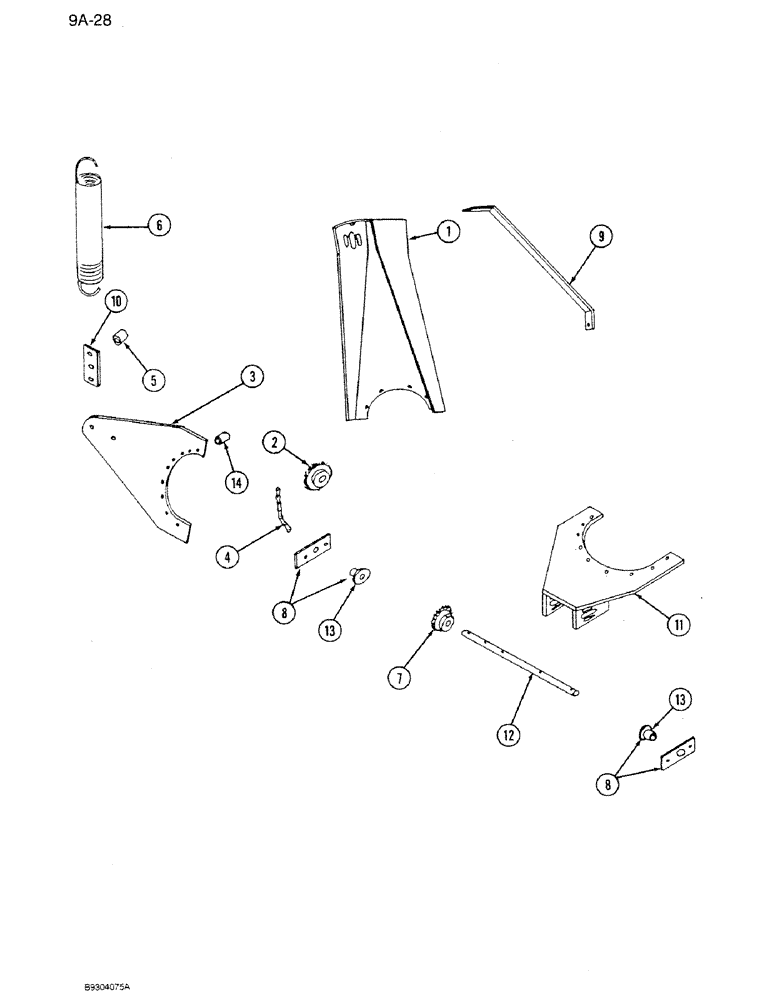

Запчасти Case IH 1250 (9A-028) - AUGER LIFT ASSIST, VERTICAL AUGER, 21 AND 45 INCH (09) - CHASSIS ATTACHMENTS

1

73645C1

ARM

- vertical (Mechanical lift)

1шт.

1

76453C1

ARM

- vertical (Hydraulic lift)

1шт.

568395R1

SPACER,5/8" Tube x 5/8"

- 13/32 ID x 5/8 OD x 9/16 inch

2шт.

2

73646C1

SPROCKET ASSY.

SPROCKET - 18 tooth (Mechanical lift - 1290 machines built prior to PIN 7000)

1шт.

2

1281187C1

SPROCKET ASSY.

SPROCKET - 18 tooth (Mechanical lift)

1шт.

3

73647C1

PLATE

- lever (Mechancial lift - 45 inch auger)

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN (Mechanical lift - 21 inch auger) (Use 79 links from chain 1790D and 1 connecting link 1301D)

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN (Mechanical lift - 45 inch auger) (Use 91 links from chain 1790D and 1 connecting link 1301D)

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN (1350 machines) (Use 103 links from chain 1790D and 1 connecting link 1301D)

1шт.

5

542716R1

SPACER

- 3/8 x 9/16 x 9/32 inch

1шт.

6

75957C1

SPRING

- extension

1шт.

7

73654C1

SPROCKET ASSY.

SPROCKET - 9 tooth (Mechanical lift)

1шт.

8

73655C91

PLATE

- adjustment (Mechanical lift)

2шт.

9

75955C1

SUPPORT

BRACE - tower (Mechanical lift - 21 inch auger)

1шт.

9

79796C1

BRACE

- tower (1350 machines only))

1шт.

10

75956C1

BAR

BRACKET - spring holding

1шт.

11

75958C2

PIVOT

- crank (Mechanical lift - 21 inch auger)

1шт.

12

75959C1

SHAFT

(Mechanical lift - 21 inch auger) (Machines built prior to PIN CCD2052)

1шт.

12

1986306C1

SHAFT

(Mechanical lift - 21 inch auger) (Machines built PIN CCD2052 and after)

1шт.

12

73653C1

PIN

SHAFT (Mechanical lift - 45 inch auger)

1шт.

13

73652C1

BUSHING

- plate

2шт.

14

65881H

SPACER,1/4" Pipe x 1 1/4"

- pipe, 1/4 x 1-1/4 inch (Not required for 1350 machines)

5шт.
