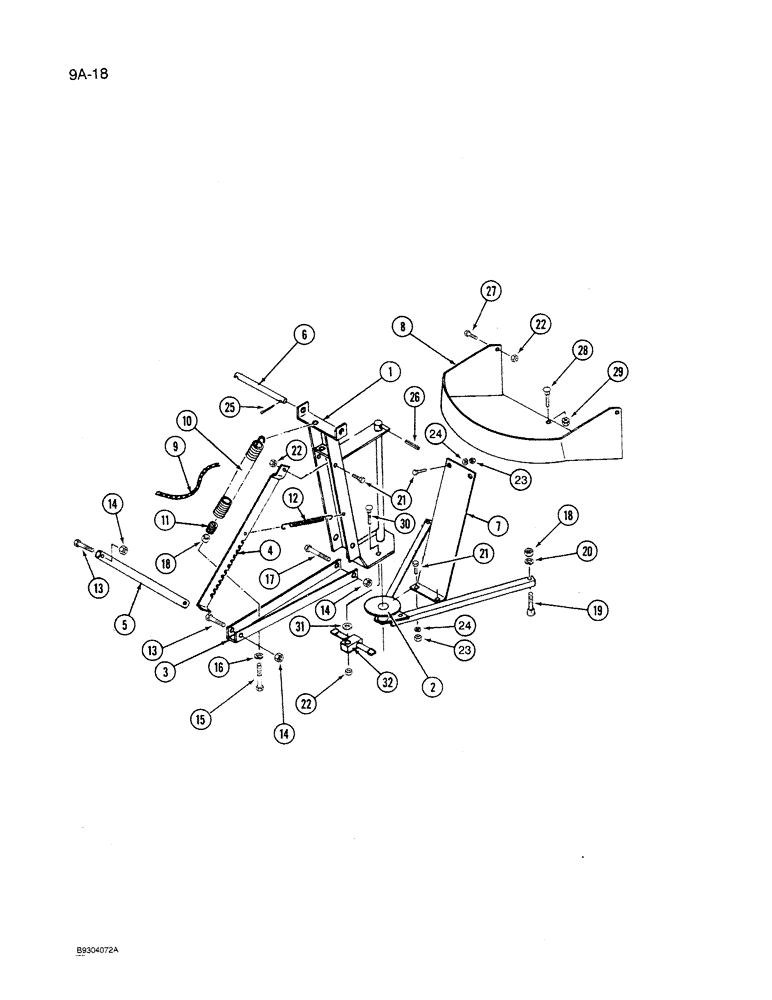

Запчасти Case IH 1250 (9A-018) - AUGER FEEDER, SUPPORT AND PIVOT ASSEMBLY, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

1281121C1

PIVOT

SWIVEL - feeder support

1шт.

2

1281219C1

SUPPORT

ASSEMBLY - bottom

1шт.

3

145825C1

CHANNEL

- lower ratchet

1шт.

4

145826C1

BAR

- ratchet

1шт.

5

76031C1

LINK

- vertical

1шт.

6

475663R1

PIN

ROD - hinge

1шт.

7

1281218C1

STRAP

1шт.

8

1281234C1

CONTAINER

- mill hopper

1шт.

9

REF

INSTRUCTION

ROPE - plastic, 3/16 x 97 inch

1шт.

10

76033C1

SPRING

1шт.

11

76032C1

SPRING NUT

- spring

1шт.

12

64669C1

SPRING

- extension

1шт.

13

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch

2шт.

14

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

3шт.

15

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

4шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

26

NSS

NOT SOLD SEPARAT

PIN - 1/4 x 2 inch, roll

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - round head square neck, 5/16 NC x 5/8 inch

1шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

30

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

32

145823C2

HANDLE

- drag brake

1шт.
