Запчасти Case IH 1250 (9A-016) - AUGER FEEDER HYDRAULIC,1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

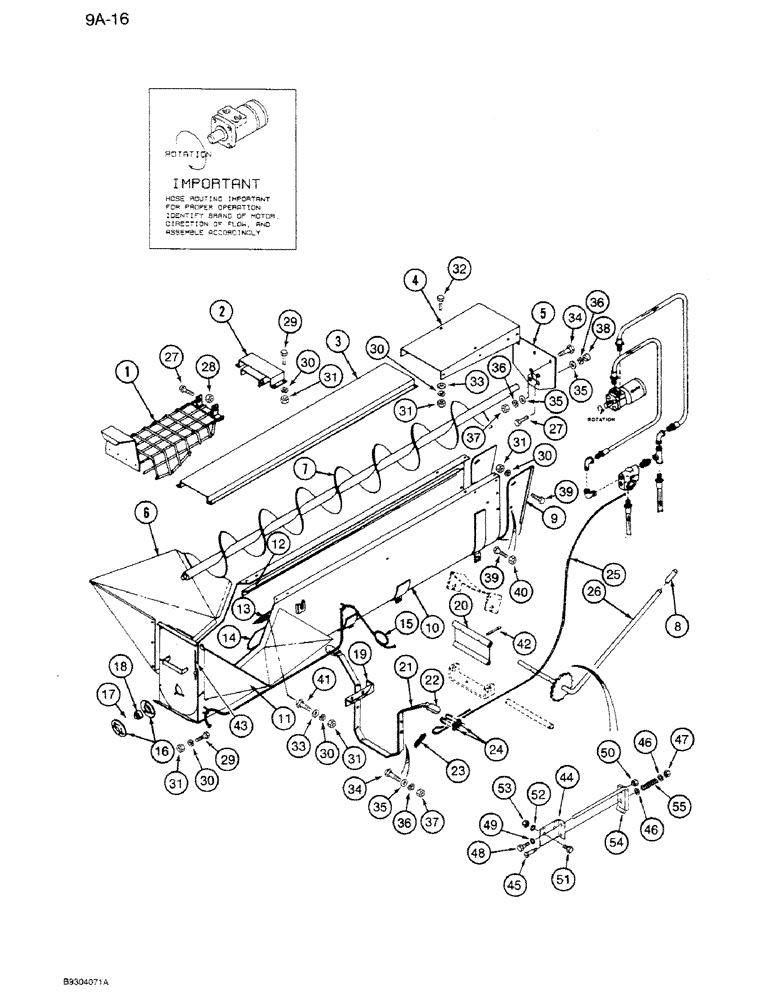

Схема запчастей Case IH 1250 - (9A-016) - AUGER FEEDER HYDRAULIC,1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

Артикул

Название

Примечание

Количество

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

7шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

15шт.

32

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

33

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

34

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch

7шт.

35

492-11041

WASHER - flat, 3/8 inch

11шт.

36

492-11038

LOCK WASHER,3/8"

11шт.

37

425-106

NUT,3/8"-16, Cl 5

7шт.

38

542716R1

SPACER

- 3/8 x 9/32 inch (Replaces 492057R1)

6шт.

39

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

41

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

4шт.

42

NSS

NOT SOLD SEPARAT

PIN - 1/4 x 1-1/4 inch, roll

2шт.

43

75973C1

CHAIN (AG)

CHAIN

1шт.

44

145836C1

HOLDER

- stop

1шт.

45

440-12524

SCREW - machine, pan head, 1/4 NC x 1-1/2 inch

1шт.

46

495-11028

WASHER,1/4", SAE

flat, hardened 1/4", SAE

2шт.

47

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC (Grade 8)

1шт.

48

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

49

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

50

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

51

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

54

145837C1

STOP

ASSEMBLY

1шт.

55

61080C1

SPRING

- compression

1шт.

Выбрано товаров: 29
