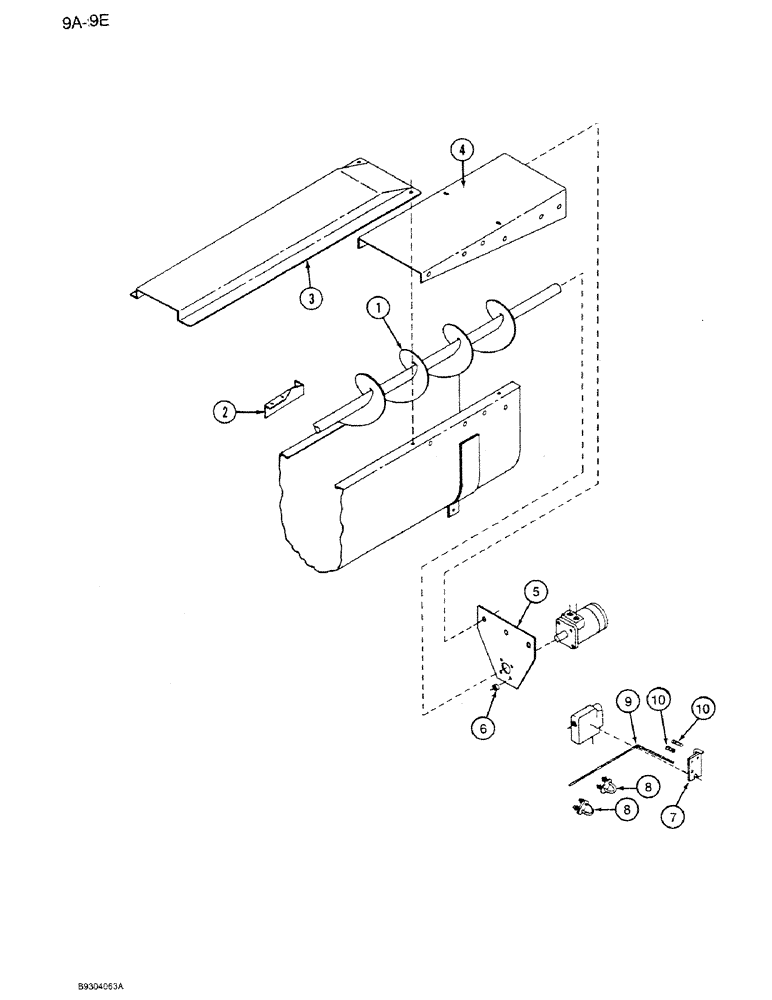

Запчасти Case IH 1250 (9A-009E) - AUGER HYDRAULIC SWING DRAG FEEDER, 1250 MACHINES, P.I.N. 4861 THRU 5891 (09) - CHASSIS ATTACHMENTS

1

1265838C1

AUGER

1шт.

REFER TO ILLUSTRATION PAGE,PART BELOW ITEM#1 IS PART 145774C1 (7 FT) 9/4/96

1шт.

2

145779C1

BRACKET

- lever stop

1шт.

3

62799C1

SHIELD - auger safety

1шт.

4

1265835C1

SUPPORT

- hydraulic auger top

1шт.

5

1265837C1

PLATE

- hydraulic motor, auger

1шт.

6

542716R1

SPACER

- 3/8 x 9/32 inch (Replaces 492057R1)

4шт.

7

145778C2

LEVER

ASSEMBLY - valve

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

8

480472R1

CLIP

CLAMP - cable

2шт.

9

1265836C1

ROPE

- wire, 67 inch

1шт.

10

61080C1

SPRING

2шт.
