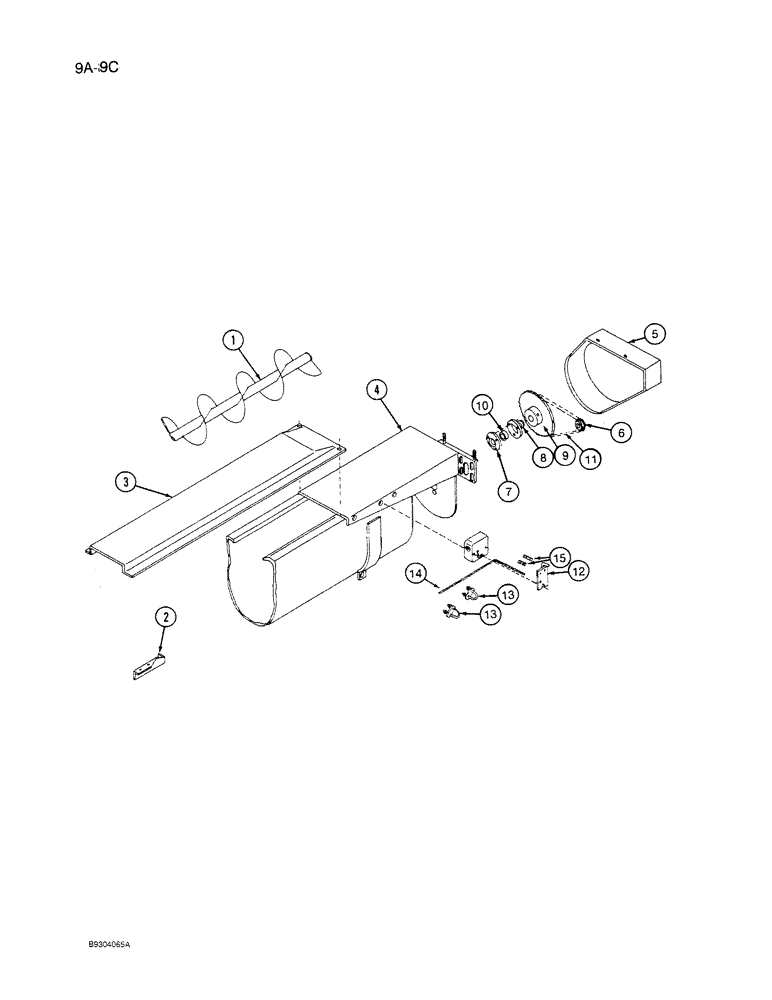

Запчасти Case IH 1250 (9A-009C) - AUGER HYDRAULIC SWING DRAG FEEDER, 1250 MACHINES, P.I.N. 2360 THRU 4860 (09) - CHASSIS ATTACHMENTS

1

485967R1

AUGER

1шт.

2

145779C1

BRACKET

- lever stop

1шт.

3

62799C1

SHIELD - auger safety

1шт.

4

485964R1

SUPPORT - hydraulic auger top

1шт.

5

542706R1

SHIELD

- top drive

1шт.

6

488492R1

SPROCKET ASSY.

SPROCKET - 13 tooth

1шт.

7

462360R1

FLANGED BEARING

- auger bearing

1шт.

8

455102R21

COLLAR

- locking, bearing, with setscrew

1шт.

9

485969R1

SPROCKET ASSY.

SPROCKET - 48 tooth

1шт.

10

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

1шт.

11

REF

INSTRUCTION

CHAIN - auger drive, use 69 links from 1790D, 1 connector link 1301D and 1 offset link 1303D

1шт.

11

1301D

CHAIN LINK

LINK - chain, connector

1шт.

11

1303D

LINK

- chain, offset link

1шт.

12

145778C2

LEVER

ASSEMBLY - valve

1шт.

13

480472R1

CLIP

CLAMP - cable

2шт.

14

1265836C1

ROPE

- wire, 67 inch

1шт.

15

61080C1

SPRING

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.
