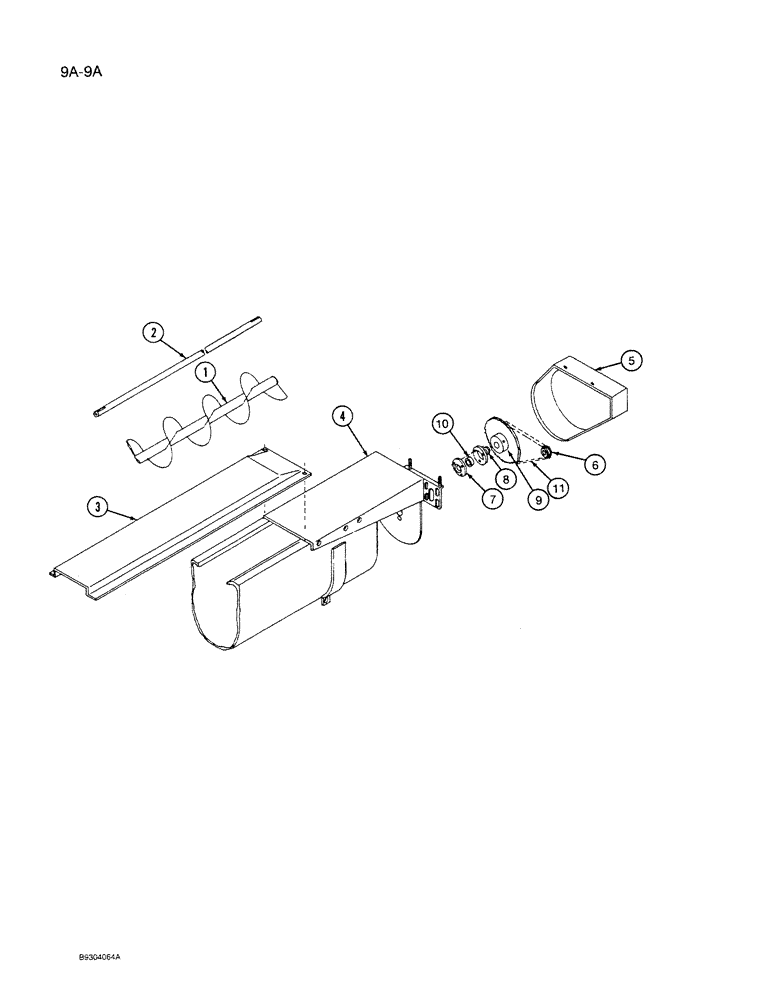

Запчасти Case IH 1250 (9A-009A) - AUGER HYDRAULIC SWING DRAG FEEDER, 1250 MACHINES, PRIOR TO P.I.N. 2360 (09) - CHASSIS ATTACHMENTS

1

76007C1

AUGER

- 7 ft.

1шт.

2

76717C1

SHAFT

- drive

1шт.

3

62799C1

SHIELD - auger safety

1шт.

4

485964R1

SUPPORT - hydraulic auger top

1шт.

REFER TO ILLUSTRATION PAGE,THE ITEM BELOW ITEM#4 IS 76003C1 HOUSING.MEASURES ABOUT 75"--6.25 FT. 9/4/96

1шт.

5

542706R1

SHIELD

- top drive

1шт.

6

488492R1

SPROCKET ASSY.

SPROCKET - 13 tooth

1шт.

7

462360R1

FLANGED BEARING

- auger bearing

2шт.

8

668085R1

COLLAR - locking, bearing, with setscrew

1шт.

9

485969R1

SPROCKET ASSY.

SPROCKET - 48 tooth

1шт.

10

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

1шт.

11

NSS

NOT SOLD SEPARAT

CHAIN - auger drive, use 69 links from roll 1790D, 1 connector link 1301D and 1 offset link 1303D

1шт.
