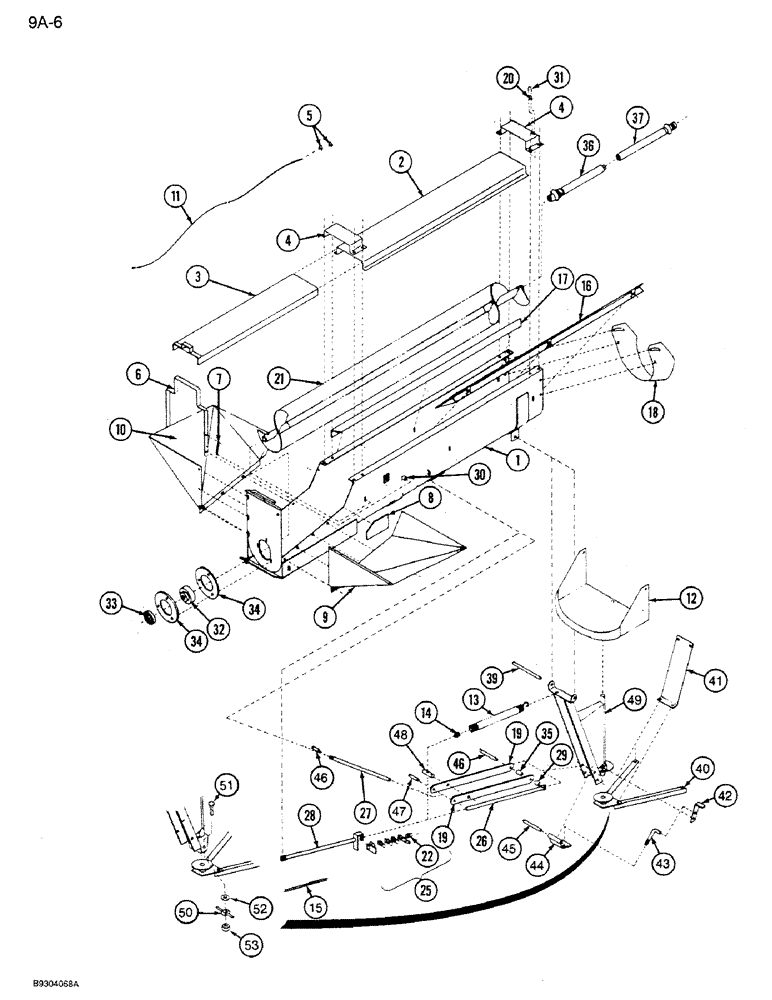

Запчасти Case IH 1250 (9A-006) - AUGER MECHANICAL SWING DRAG FEEDER, 1250 MACHINES, P.I.N. 2288 THRU 2940 (09) - CHASSIS ATTACHMENTS

1

145774C1

HOUSING

- housing, auger feed

1шт.

2

62797C1

SHIELD

- main

1шт.

3

62798C1

SHIELD

- sliding

1шт.

4

62796C1

BRACKET

SUPPORT - auger shield

2шт.

5

480472R1

CLIP

CLAMP - cable

2шт.

6

145775C1

HANDLE

- clutch

1шт.

7

64669C1

SPRING

- extension

1шт.

8

76004C1

SEALING STRIP

SEAL - rubber

1шт.

9

76005C1

HOPPER

- with hinge

1шт.

10

475662R1

PANEL

HOPPER - panel, left

1шт.

11

145782C1

ROPE

- wire, assembly

1шт.

12

76027C1

HOPPER

- mill

1шт.

13

76033C1

SPRING

1шт.

14

76032C1

SPRING NUT

- spring

1шт.

15

NSS

NOT SOLD SEPARAT

ROPE - 7-1/2 foot

1шт.

16

475658R1

GUIDE - right side auger

1шт.

17

488482R1

SUPPORT

ANGLE - feeder, left

1шт.

18

475659R1

SPOUT, DISCHARGE

DOWN SPOUT - auger housing

1шт.

19

76028C1

LINK

BAR - lower

2шт.

20

480475R2

GUIDE

- rope

1шт.

1344948C1

KIT

- rope guide

1шт.

21

475652R91

AUGER

1шт.

22

475672R1

SPRING

1шт.

25

1344709C1

KIT

- clamping

1шт.

26

76029C1

PIPE

ROD - inside

1шт.

27

76031C1

LINK

- vertical

1шт.

28

76030C1

SUPPORT

PIPE - outside

1шт.

29

76025C1

SPACER

1шт.

30

542716R1

SPACER

3шт.

31

620629R1

BOLT,U, 5/16" x 1 7/16"

- U

1шт.

32

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

1шт.

33

455102R21

COLLAR

- locking, bearing, with setscrew

1шт.

34

462360R1

FLANGED BEARING

- auger bearing

2шт.

35

H39274

SPACER,1/2" Pipe x 1 1/2"

1шт.

36

145834C1

SHAFT

- male end power drag

1шт.

37

145833C1

SHAFT

- top half power drag

1шт.

39

475663R1

PIN

ROD - hinge

1шт.

40

76018C1

SUPPORT

- bottom

1шт.

41

76016C1

SUPPORT

1шт.

42

76017C1

SUPPORT

- brake

1шт.

43

76019C1

ROD

- connecting

1шт.

44

76020C1

PLATE

SUPPORT - brake

1шт.

45

76023C1

PIN

- 1/2 x 5-1/4 inch

2шт.

46

76024C1

PIN

- 1/2 x 3-3/4 inch

1шт.

47

76021C1

PIN

- 1/2 x 2-3/4 inch

1шт.

48

76022C1

PIN

- 1/2 x 3 inch

1шт.

49

145822C1

PIVOT ASSY.

SWIVEL

1шт.

50

145823C2

HANDLE

1шт.

51

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 1-3/4 inch

1шт.

52

27701R1

WASHER

- flat, 13/32 x 1-3/4 x 7/64 inch

1шт.

53

425-106

NUT,3/8"-16, Cl 5

1шт.
