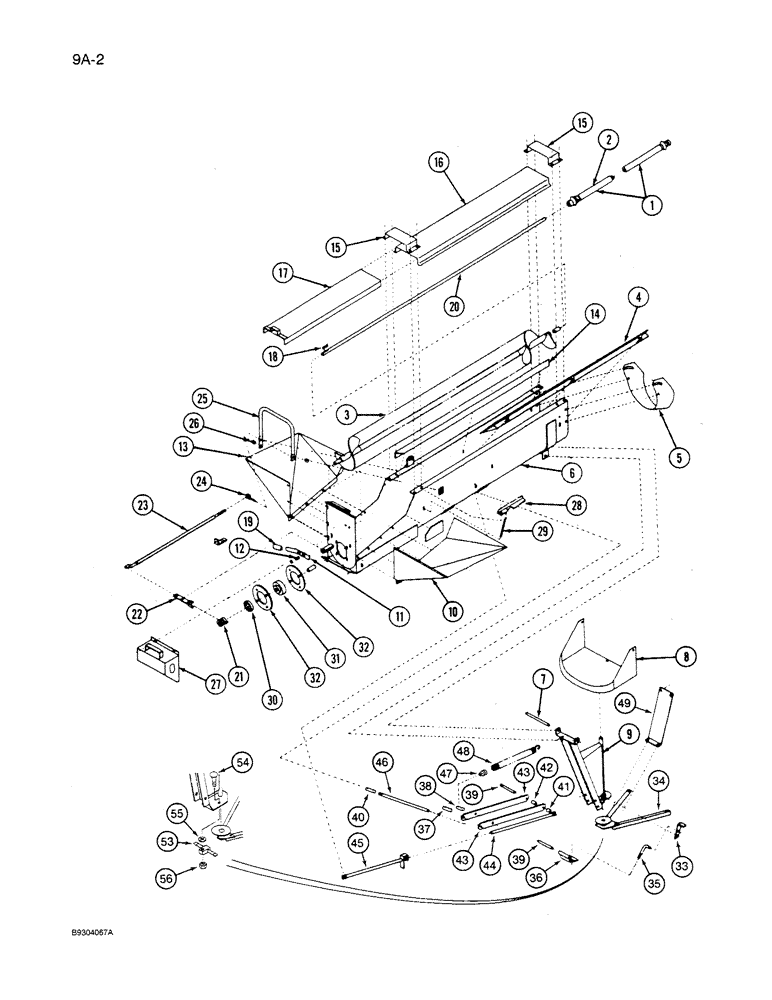

Запчасти Case IH 1250 (9A-002) - AUGER MECHANICAL SWING DRAG FEEDER, 1250 MACHINES, PRIOR TO P.I.N. 2288 (09) - CHASSIS ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - power drag (Order Ref 2 and 51)

1шт.

2

475650R1

SHAFT

- male end power drag

1шт.

3

76007C1

AUGER

- 7 ft.

1шт.

4

475658R1

GUIDE - right side auger

1шт.

5

475659R1

SPOUT, DISCHARGE

DOWN SPOUT - auger housing

1шт.

6

76003C1

HOUSING

- auger feed

1шт.

7

475663R1

PIN

ROD - hinge

1шт.

8

76027C1

HOPPER

- mill

1шт.

9

NSS

NOT SOLD SEPARAT

SWIVEL - vertical pipe (Order kit 145821C91)

1шт.

10

76005C1

HOPPER

- with hinge

1шт.

11

61079C1

HANDLE - release

1шт.

12

61080C1

SPRING

1шт.

13

475662R1

PANEL

HOPPER - panel

1шт.

14

488482R1

SUPPORT

ANGLE - feeder

1шт.

15

62796C1

BRACKET

SUPPORT - auger shield

2шт.

16

62797C1

SHIELD

- main drag auger, safety

1шт.

17

62798C1

SHIELD

- sliding safety

1шт.

18

479370R1

KEY,1/4" Sq x 2", Par

- square, 1/4 x 2 inch

1шт.

19

75981C1

GRIP

- plastic

1шт.

20

76006C1

SHAFT

- drive

1шт.

21

76008C1

CLUTCH

- bottom

1шт.

22

76009C1

FORK

1шт.

23

76010C1

ROD

- arm

1шт.

24

475708R1

BOLT

EYEBOLT - clutch

1шт.

25

76011C1

ROD

- safety shut-off

1шт.

26

542716R1

SPACER

- 3/8 x 9/32 inch (Replaces 492057R1

2шт.

27

76012C1

SHIELD

- rear drag drive

1шт.

28

76013C1

SUPPORT

- safety

1шт.

29

64669C1

SPRING

- extension

1шт.

30

485935R91

COLLAR

- bearing locking, with setscrew

1шт.

31

76076C91

BALL BEARING

- ball

1шт.

32

76079C1

FLANGE

2шт.

33

76017C1

SUPPORT

- BRAKE

1шт.

34

76018C1

SUPPORT

- bottom

1шт.

35

76019C1

ROD

- connecting

1шт.

36

76020C1

PLATE

SUPPORT - brake

1шт.

37

76021C1

PIN

- 1/2 x 3-3/4 inch

1шт.

38

76022C1

PIN

- 1/2 x 3 inch

1шт.

39

76023C1

PIN

- 1/2 x 5-1/4 inch

2шт.

40

76024C1

PIN

- 1/2 x 3-3/4 inch

1шт.

41

76025C1

SPACER

1шт.

42

H3927

SPACER - pipe, 1/2 inch

1шт.

43

76028C1

LINK

BAR - lower

2шт.

44

76029C1

PIPE

ROD - inside

1шт.

45

76030C1

SUPPORT

PIPE - outside

1шт.

46

76031C1

LINK

PIPE - vertical

1шт.

47

76032C1

SPRING NUT

- spring

1шт.

48

76033C1

SPRING

1шт.

49

76016C1

SUPPORT

1шт.

1344709C1

KIT

- clamping

1шт.

51

475649R1

SHAFT

- top half

1шт.

50

76004C1

SEALING STRIP

SEAL - rubber

1шт.

51

475649R1

SHAFT

- top half

1шт.

52

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

2шт.

53

145823C2

HANDLE

2шт.

54

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 1-3/4 inch

1шт.

55

27701R1

WASHER

- flat, 13/32 x 1-3/4 x 7/64 inch

1шт.

56

425-106

NUT,3/8"-16, Cl 5

1шт.
