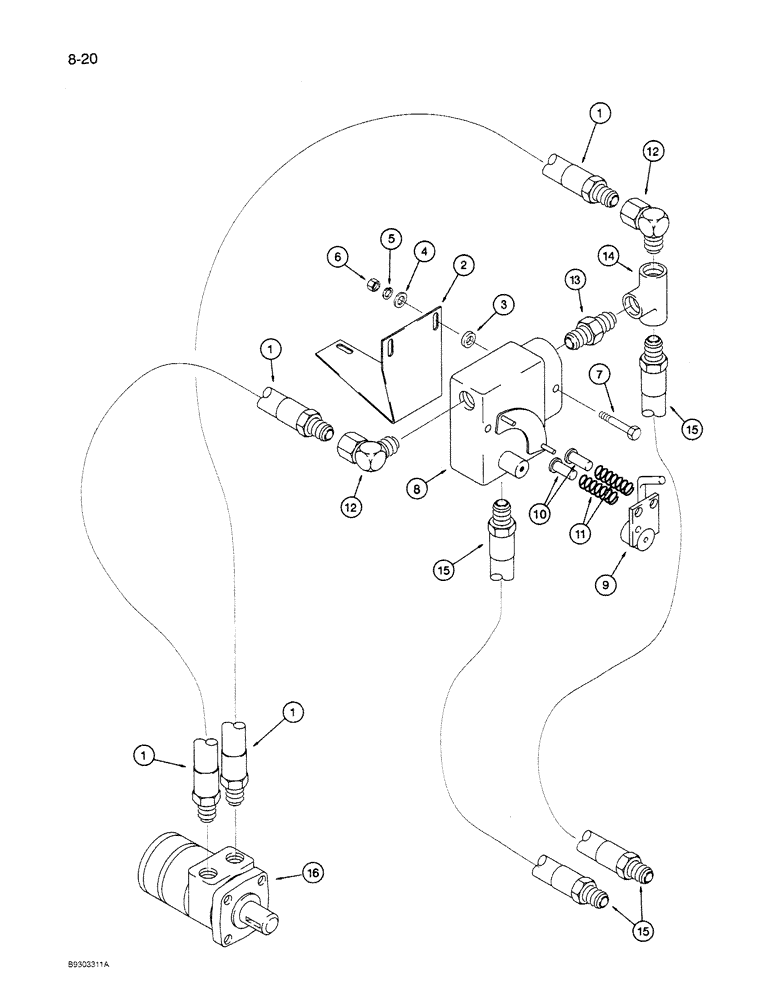

Запчасти Case IH 1250 (8-20) - HYDRAULIC ROLL FEED, WITHOUT AUGER LOADING FEEDER, 1250 MACHINES, P.I.N. 7001 AND AFTER (07) - HYDRAULICS

1

1281167C1

HYDRAULIC HOSE

ASSY, 1/2 x 30"

2шт.

2

1281168C1

BRACKET

- control valve

1шт.

3

542716R1

SPACER

- 3/8 x 9/32 inch (Replaces 492057R1)

2шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

7

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

8

145776C2

VALVE

- flow control

1шт.

9

145778C2

LEVER

ASSEMBLY - valve

1шт.

10

103496

CLEVIS PIN,3/8" x 1.060"

PIN - clevis, 3/8 x 1 inch

1шт.

11

61080C1

SPRING

1шт.

12

127961

DEFLECTOR

- pipe, 1/2 inch x 90 degree

2шт.

13

443983

PIPE

NIPPLE - pipe, 1/2 - 14 inch

1шт.

14

138105

TEE,1/2" NPT, Fem

COUPLING - tee, 1/2 inch

1шт.

15

79810C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 1/2 x 120 inch

2шт.

16

485963R91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydraulic

1шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 7132

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 7133 Through 7516

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 7517 Through 7606

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 7607 And After (this kit also services all machines with a PIN number having a CCD prefix)

1шт.
