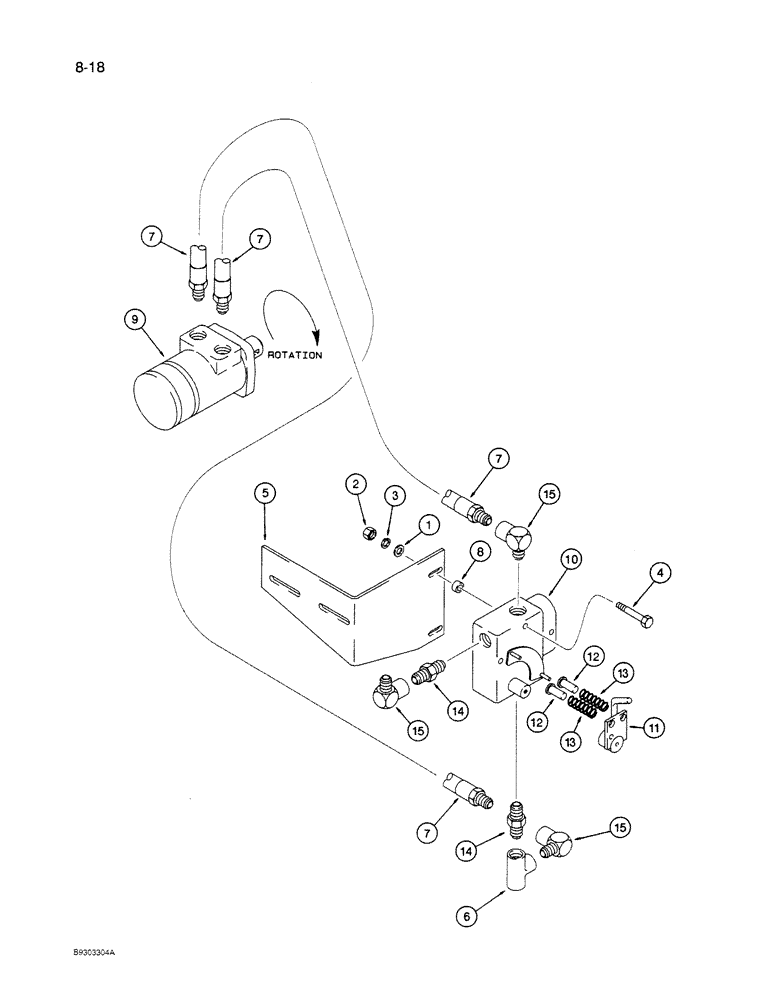

Запчасти Case IH 1250 (8-18) - HYDRAULIC ROLL FEED, WITH AUGER LOADING FEEDER, 1250 MACHINES, P.I.N. 7001 AND AFTER (07) - HYDRAULICS

1

28588R1

WASHER

- 11/32 x 11/16 x 3/64 inch

2шт.

2

230-4104

LOCK NUT,1/4"-20, GA

NUT - hex, lock, 1/4 inch NC

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

5

1281164C1

BRACKET

- flow control valve

1шт.

6

217-1163

TEE,1/2"-14 Female

COUPLING - tee, 1/2 inch

1шт.

7

1281165C1

HYDRAULIC HOSE

ASSY, 1/2 x 55" (Replaces 1281165C1) (Replaced 74105C1 )

2шт.

8

542716R1

SPACER

- 3/8 x 9/32 inch (Replaces 492057R1)

2шт.

9

485963R91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydraulic

1шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 7132

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 7133 Through 7516

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 7517 Through 7606

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 7607 And After (this kit also services all machines with a PIN number having a CCD prefix)

1шт.

10

145776C2

VALVE

- flow control

1шт.

11

145778C2

LEVER

ASSEMBLY - valve

1шт.

12

103496

CLEVIS PIN,3/8" x 1.060"

PIN - clevis, 3/8 x 1 inch

1шт.

13

61080C1

SPRING

1шт.

14

443983

PIPE

NIPPLE - pipe, 1/2 - 14 inch

2шт.

15

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- pipe, 1/2 inch x 90 degree

3шт.
