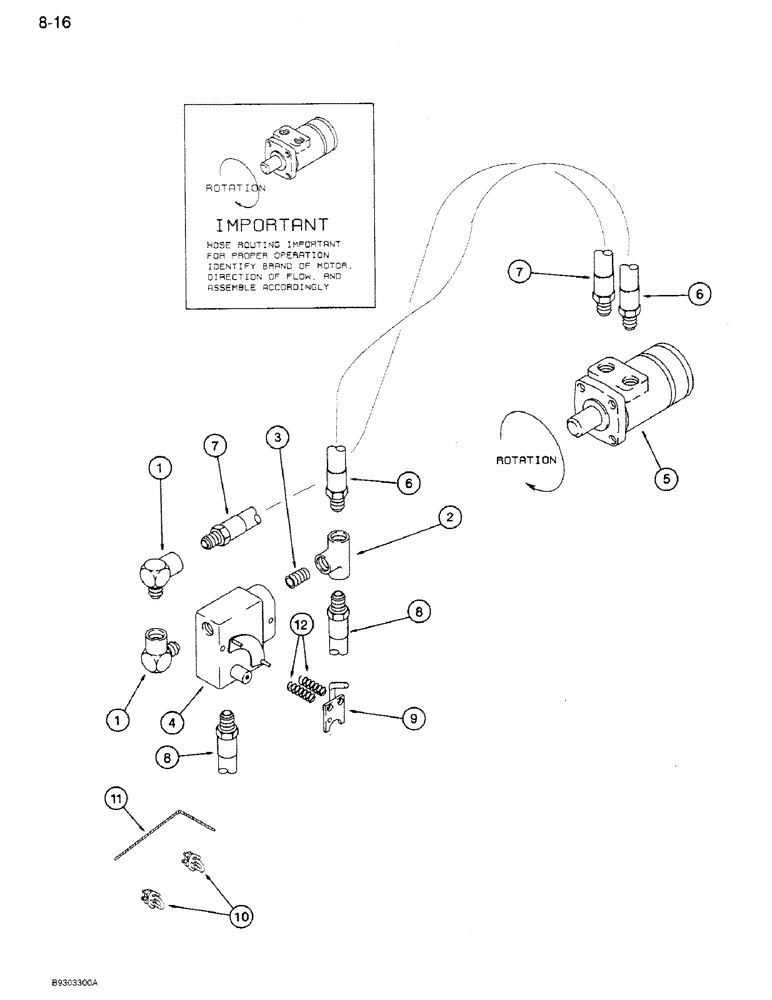

Запчасти Case IH 1250 (8-16) - HYDRAULIC SWING AUGER DRAG FEEDER, 1250 MACHINES, P.I.N. 4861 THRU 5891 (07) - HYDRAULICS

1

127961

DEFLECTOR

- street, 1/2 inch x 90 degree

2шт.

2

138105

TEE,1/2" NPT, Fem

COUPLING - pipe, 1/2 inch

1шт.

3

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2 x 1-1/6 inch

1шт.

4

145776C2

VALVE

- flow control

1шт.

5

485963R91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydraulic

1шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 7132

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 7133 Through 7516

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 7517 Through 7606

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 7607 And After (this kit also services all machines with a PIN number having a CCD prefix)

1шт.

6

57968C1

HYDRAULIC HOSE,12.70 mm ID x 406.40 mm

12.70 mm ID x 406.40 mm

1шт.

7

57968C1

HYDRAULIC HOSE,12.70 mm ID x 406.40 mm

12.70 mm ID x 406.40 mm

1шт.

8

145827C1

HOSE

ASSEMBLY - hydraulic, 1/2 x 200 inch

2шт.

9

145778C2

LEVER

ASSEMBLY - valve

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

10

480472R1

CLIP

CLAMP - cable

2шт.

11

1265836C1

ROPE

- wire, 67 inch

1шт.

12

61080C1

SPRING

2шт.
